Hole 12.7x76.2mm Prison Guard 358 Anti Climb Fence Mesh Welding Machine
| Place of Origin | China |
|---|---|
| Brand Name | DIXUN |
| Certification | CE |
| Model Number | DX-GWC-2500 |
| Minimum Order Quantity | One set |
| Packaging Details | The machine is nude package. Need one 40 ft container to load. |
| Delivery Time | 30 working days |
| Supply Ability | 6 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Fence Mesh Welding Machine | Wire Diameter | 3-6mm |
|---|---|---|---|
| Welding Speed | 40-60 Times/minute | Rated Capacity | 150KVA*6 |
| Mesh Width | 1200/1500/2000/2500mm | Rated Duty Cycle | Adjusted By Transformer |
| Control System | PLC+Touch Screen | Cross Wire Space | Min.25mm/Min.12.7mm |
| Longitudianl Wire Space | 76.2-300mm | Mesh Length | 3-5m |
| Machine Weight | 4.5T | Machine Dimension | 7500*3200*1700mm |
| High Light | plc fence mesh welding machine,hole 12.7x76.2mm fence mesh welding machine,358 fence mesh welding machine |
||
Product Description
Hole Size 12.7*76.2mm Prison Guard 358 Anti Climb Fence Mesh Welding Machine
358 Anti Climb Fence Mesh Welding Machine Introduction:
358 Anti climb fence welding machine also called security fence machine, it is used to make a fence panel, road mesh, reinforcing mesh, shelf, explosion-proof wall, etc.
Our anti-climb fence mesh welding machine adopts the newest pneumatic welding system and imported force cylinders so that the welding speed can up to 115 times per minute.
358 Anti Climb Fence Mesh Welding Machine Features:
1. 358 anti climb fence mesh welding machine cent-control and welding time are composed of PLC program system . The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time, times welding .
2. Per-cut line wire by manual feeding, per-cut cross wires auto feeding with the high production rate,which keep the mesh surface is very flat. The hopper adopts the steeping motor control ,brake motor wheels and the cross wire will fallen automatically from the hopper.
3. Our transformers adopts big power at 125KVA every one,which can ensure the welding quality in good condition and adopt water cooling system. Our clients are very satisfied with our new development.
4. The greatest advantage is that you can adjust the distance of cross wire at random on the same one piece wire mesh sheet very easily, and only need to set the any space required on the touch screen.
5. Equipped with fence bending machine can produce 3D fence panel,this fence quality is best fence products in the markets.
358 Anti Climb Fence Mesh Welding Machine Technical Parameters:
| No. | Item | Specification |
| 1 | Welding Wire Diameter | Φ3.0-6.0(mm) |
| 2 | Cross Wire Space | 12.7-200mm |
| 3 | Line Wire Space | 76-200mm |
| 4 | Mesh Width | 3000mm or Customized |
| 5 | Max mesh length | 4000mm or Customized |
| 6 | Number of Electrodes | 40 |
| 7 | Welding Speed | 0-60times/min |
| 8 | Rated Voltage | Three phase,380V,50HZ or Customized |
| 9 | Rated Power | 160KWA*10 (Water cooling system) |
| 11 | Main Motor | 4.0KW (Electromagnetic Brake Motor) |
| 12 | Welding Time | 10ms-100ms |
| 13 | Pulling Mesh Way | Servo Motor(2.0kw) |
| 14 | Welding Way | By Control Silicon Control Electric Resistance Weld |
| 15 | Pressure Mode | Adjustable Spring Pressure |
| 16 | Weight | About 4.2 T |
| 17 | Overall Dimension | 6500*4100*1800m |
358 Anti Climb Fence Mesh Welding Machine includes:
| No. | Name of each part | Quantity/Set |
| 1 | Main Mesh Welding Machine | 1 |
| 2 | Cross Wire Automatic Falling Hopper | 1 |
| 3 | Pulling Mesh Device | 1 |
| 4 | Operation Control Cabinet | 1 |
| 5 | Wire Straightening and Cutting Machine | 3 |
| 6 | Level Spare Parts Box | 1 |
| 7 | Water Circle Pump | 1 |
| 8 | Repairing Mesh Machine | 1 |
| 9 | Cooling Water System | 1 |
| 10 | Installing Tool | 1 |
| 11 | Equipment Operation and Maintenance Manual | 1 |
358 Anti Climb Fence Mesh Welding Machine Applications:
358 anti climb fence mesh is used for the protection of prisons, sentries, frontier defense, enclosed areas, military defense and other high-risk areas.

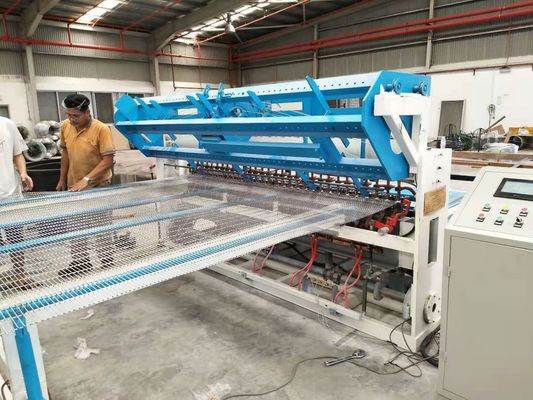

358 Anti Climb Fence Mesh Welding Machine Photos:
