Fence Protection Roll Wire Diameter 3mm Welded Mesh Making Machine

Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-GWCD-2000D
Minimum Order Quantity One set
Packaging Details 1. main machine will be plastic package 2. machine will be fixed by steel wire in the container 3. spare parts in a box
Delivery Time 30 working days
Payment Terms L/C, T/T
Supply Ability 8 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Wire Mesh Welding Machine Wire Diameter 2.5-6mm
Mesh Width 2m Mesh Length 30m In Roll
Longitudinal Wire Space 50-200mm Cross Wire Space 50-200mm
Number Of Welding Electrodes 40PCS Number Of Welding Transformer 160kva*5PCS
Warranty 2 Years Certification CE
Welding Speed 60-75 Times Per Min Required Space 30m*6m
Production Capacity 500 Rolls Machine Color According To Your Request
High Light

servo motor welded mesh making machine


servo motor weld mesh making machine


dia 3mm welded mesh making machine

Leave a Message
Product Description

Roll Mesh Wire Diameter 3mm Fence Protection Wire Mesh Welding Machine



Wire Mesh Welding Machine Introduction:


1.Wire mesh welding machine adopts Japan Mitsubishi brand electronic synchronous control technique, welding time and sub-control welding are all composed of digital integrated circut, which has high control accuracy, stable performance, firm welding spots and without burned mark.
2. The welding speed is fast and the operation is simple and easy to master.
3. The longitudinal wire is from coil wire. Feeding automatically. The cross wire is pre-cut by wire straightening and cutting machine. The cross wire is put into the hopper. Feeding automatically.
4. The mesh drawing system is controlled by motor which improved the precision of mesh opening size, meanwhile the line wire and the weft wire spacing are adjustable.


Wire Mesh Welding Machine Features:


1. Longitudinal wires are fed from wire coils automatically and through straightening rollers.

2. The wire mesh welding machine is equipped with rolling machine to make roll mesh.

3. Welding electrodes- chromium zirconium copper Upper-20mm diameter Lower-20*20*20mm, can be used 6 sides,The welding electrode distance can be adjusted.

4. Cast water cooling welding transformers Suitable for high temperature. When 2.5-4mm one welding transformer controls 8 welding electrodes. When 4-6mm, one welding transformer controls 4 welding electrodes.

5. Panasonic brand servo motor for mesh pulling, accurate, big power.air cylinders controls the hook up&down.J&T brand pulling rack, less noise, high accuracy.

6. The wire mesh welding machine is suitable for galvanized wire,balck steel wire.

7. The rolling mesh machine will rewind up the mesh automatically. The roll mesh length max up to 80m.

8. The wire mesh welding machine require the space of workshop: 25m*6m.

9. The wire mesh welding machine need the power transformer at least 120KVA to supply machine running.


Wire Mesh Welding Machine Technical Parameters:


Model DX-GWC-2000D DX-GWC-2500D
Wire diameter 2.5-6.0mm 2.5-6.0mm
Longitudinal wire space 50-200mm 50-200mm
Cross wire space 50-200mm 50-200mm
Mesh width 2m 2.5m
Mesh length 80m 80m
Manpower required 2 guys 2 guys
Welding speed 60-75 times per min 60-75 times per min
Number of welding electrode 40PCS 48PCS
Number of welding transformer 160KVA*5PCS 160KVA*6PCS
Material of welding electrode CuCrZr CuCrZr
Production capacity 800 rolls at 8 hours 800 rolls at 8 hours
Machine weight 4.5T 5.2T
Machine dimension 25m*6m 25m*8m
Power consumption 6-7kw/h 6-7kw/h


Wire Mesh Welding Machine Applications:


The finished product roll mesh is widely used in house construction, road construction,fence.


Wire Mesh Welding Machine Photos:

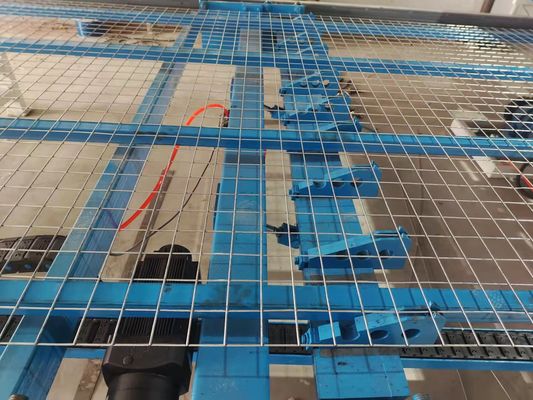

Fence Protection Roll Wire Diameter 3mm Welded Mesh Making Machine 0

Fence Protection Roll Wire Diameter 3mm Welded Mesh Making Machine 1

Fence Protection Roll Wire Diameter 3mm Welded Mesh Making Machine 2

Fence Protection Roll Wire Diameter 3mm Welded Mesh Making Machine 3
