Welding Speed 75 Times Roll Length 30m Plc Weld Mesh Manufacturing Machine

Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-GWC-2000D
Minimum Order Quantity One set
Packaging Details The roll mesh welding machine is nude packaging. Need one 40 ft container to load.
Delivery Time 30 working days
Supply Ability 5 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Roll Mesh Welding Machine Wire Diameter 2.5-6.0mm
Longitudinal Wire Space 50-250mm Cross Wire Space 50-300mm
Mesh Width 2m Mesh Length 60m
Welding Speed 75 Times Per Min Main Motor 5.5KW
Number Of Welding Electrode 40PCS Welding Capacity 160KVA*5PCS
Control System BY PLC And Touch Screen Welding Pressure By Spring
Machine Color According To Your Request Requirement Of Workshop 30*6m
High Light

plc weld mesh manufacturing machine

,

30m length weld mesh manufacturing machine

,

plc weld mesh making machine

Leave a Message
Product Description

Welding Speed 75 Times Roll Length 30m PLC Welded Wire Mesh Production Line





Welded Wire Mesh Production Line Introduction:



1. This roll mesh welding machine adopts electrical & electronic synchronous control technique, both separate-phases welding and welding time composed of digital and integrated electric circuit, more intelligent and rational, press at one time, separate welding.
2. The longitudinal wire is fed from coil wires; the cross wire is pre-cut, fed from hopper driven by step motor.
3. Mesh pulling system adopts servo motor back and forward, adjusting the cross space by setting the parameters on the touch screen,different from traditional mechanical adjustment.
4. The welding speed is fast and it is easy to learn and operate. Only two operators are enough. The welding speed 75 times per min. Very high production capacity.
5. The finished products can be roll mesh. The roll mesh length up to 60m one roll.

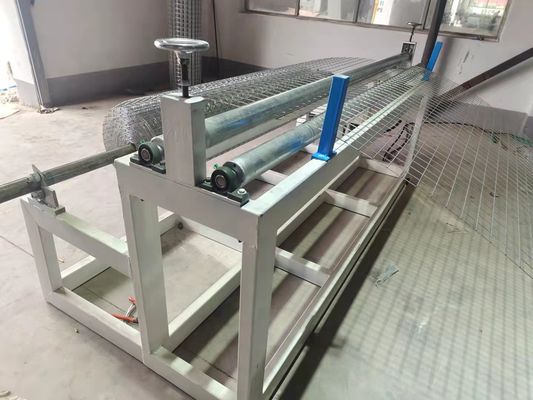

6. The roll mesh welding machine is equipped with mesh coiling machine.

7. The main frame is welded with thick steel plate and section bar,Which can make the main structure more solid and compact.



Welded Wire Mesh Production Line Features:



1. The main frame is welded with thick steel plate and section bar, making the main structure more solid and compact.

2. All key parts are made of alloys with heat treatment applied to achieve a very high hardness. Furthermore, the special anti-corrosion treatment is applied for the surface to ensure smooth operation of the parts while preventing corrosion.

3. The welding products are of diversity and the machine can be set according to different production requirements of various kinds, bring flexibility and versatility for customers.

4. The welding adopts new-type high-efficiency welding transformer, which is much more efficient and can make the welding spot more solid compared with traditional transformer.



Welded Wire Mesh Production Line Technical Parameters:



Model DX-GWC-2000D DX-GWC-2500D
Wire diameter 2.5-6.0mm 2.5-6.0mm
Longitudinal wire form Coil wire Coil wire
Cross wire form Pre-cut Pre-cut
Longitudinal wire space 50-250mm 50-250mm
Cross wire space 50-300mm 50-300mm
Mesh width 2000mm 2500mm
Welding speed 60-75 times per min 60-75 times per min
Welding transformer 160KVA*5PCS 160KVA*6PCS
Material of welding electrode CuCrZr CuCrZr
Number of welding electrode 40PCS 48PCS
Main motor 5.5KW 7.5KW
Machine weight 4.8T 5.5T
Requirement of workshop 25*6m 25*8m
Manpower  2 workers 2 workers



Welded Wire Mesh Production Line Applications:



The roll mesh is widely used in highway, fence, road mesh etc.



Welded Wire Mesh Production Line Photos:



Welding Speed 75 Times Roll Length 30m Plc Weld Mesh Manufacturing Machine 0

Welding Speed 75 Times Roll Length 30m Plc Weld Mesh Manufacturing Machine 1
