Pneumatic Welding 3d Curve Servo Motor Fence Mesh Welding Machine Highly Automatic
| Place of Origin | China |
|---|---|
| Brand Name | DIXUN |
| Certification | CE |
| Model Number | DX-GWC-2500A |
| Minimum Order Quantity | One set |
| Packaging Details | The 3d Curve Fence Mesh Welding Machine is nude packing. Need one 40ft container to load. |
| Delivery Time | 30 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 6 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Fence Mesh Welding Machine | Warranty | 2 Years |
|---|---|---|---|
| Wire Diameter | 3-6mm | Welding Speed | 50-75 Times/min |
| Color | As Requirement | Usage | Product Fence For Protect Highway And Railway |
| Mesh Width | Max 2500mm | Control System | PLC+Touch Screen |
| Cross Wire Space | 50-200mm | Longitudinal Wire Space | 50-200mm |
| Number Of Welding Electrode | 48PCS | Welding Transformer | 160KVA*6PCS |
| High Light | servo motor fence mesh welding machine,3d fence mesh welding machine,servo motor fence mesh machine |
||
Product Description
Highly Automatic Pneumatic Welding 3d Curve Fence Mesh Welding Machine
3d Curve Fence Mesh Welding Machine Advantages:
Advanced technology
1. Control system:PLC(Siemens or Mitsubishi brand)
2. Touch screen: Siemens brand
3. Low-voltage apparatus: Schneider(France)
4. Pneumatic components:Japan SMC, more stable
5. Transformer cooling:cast water cooling, welding degree can be adjusted by PLC,very efficient.
6. Welding electrodes are made of CuCrZr copper ,durable.
7. The cross wires fed by servo motor (FUJI or Mitsubishi)automatically
8. The elctro-magnetism value is SMC brand(Made in Japan), the quality is much better.
3d Curve Fence Mesh Welding Machine Features:
| Item | Description | Function |
| 1 | Line wire push device | Push the placed line wire to the welding position |
| 2 | Line wire place device(2 pcs) | Placing the line wire as the set line wire distance |
| 3 | Main welding device | Do the welding job when the line wire and cross wire located |
| 4 | Cross wire feeding device | Placing the cross wire as the set value |
| 5 | Pulling mesh device No.1 | Fist time to fetch the welded mesh then forward to No2 |
| 6 | Pulling mesh device No.2 | In order to reduce the route ,design several pulling mesh device |
| 7 | Pulling mesh device No.3 | No3 fetch the mesh ready to bending |
| 8 | Mesh bending device | Do the bending job as the set value |
| 9 | Pulling mesh device No.4 | Fetch the bend mesh and do the falling job |
| 10 | Mesh conveyor | Transfer the mesh when up to the set quantity |
| 11 | Control cabinets (3pcs) |
One for line wire placing, one for welding and mesh pulling, one for mesh bending and falling |
3d Curve Fence Mesh Welding Machine Technical Parameters:
| Model | DX-GWC-2000A | DX-GWC-2500A |
| Wire diameter | 3-6mm | 3-6mm |
| Width of fence mesh | 2000mm | 2500mm |
| Length of fence mesh | Max 3000mm | Max 3000mm |
| Welding speed | 75-85 times per min | 75-85 times per min |
| Longitudinal wire space | 50-200mm | 50-200mm |
| Cross wire space | 50-200mm | 50-200mm |
| Pulling mesh system | By servo motor | By servo motor |
| Bending fence width | 2000mm | 2500mm |
| Bending pressure | 100 tons | 100 tons |
| Total weight | 7.8T | 8.5T |
| Overall dimension | 15*3*2.2m | 15*4*2.2m |
3d Curve Fence Mesh Welding Machine Applications:
Fence mesh welding machine is used to make fence mesh, road mesh, reinforcing mesh, shelf, explosion-proof wall etc.

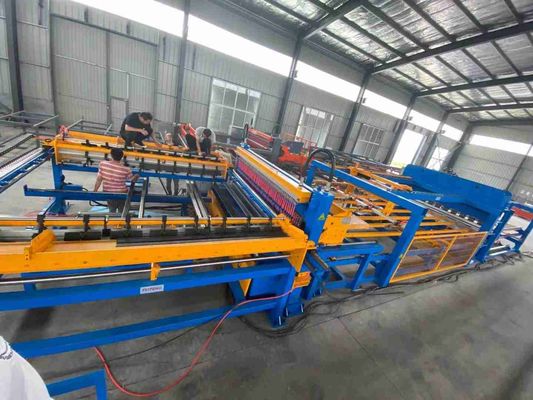

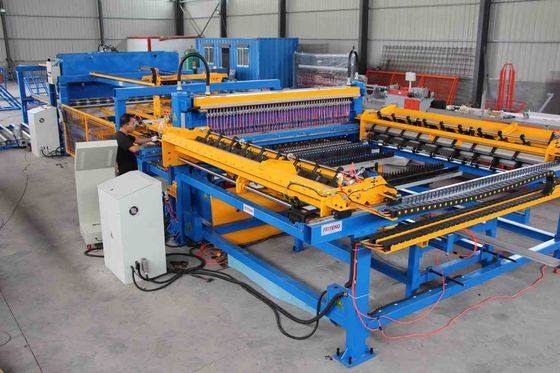

3d Curve Fence Mesh Welding Machine Photos:
