Servo Motor Pull Mesh Width 2.5m Wire Mesh Welding Machine For Steel

Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-GWC-2500D
Minimum Order Quantity One set
Packaging Details The steel wire mesh welding machine is nude packing. Need one 20ft container to load.
Delivery Time 30 working days
Payment Terms L/C, T/T
Supply Ability 5 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Product Name Steel Wire Mesh Welding Machine Wire Diameter 3-6mm
Warranty 2 Years Color Requirement
Voltage 220V/380V/415V/440V Welding Speed 75rows/min
Condition New Cross Wire Space 50mm-300mm
Width Of Mesh 2500mm Length Of Mesh 6m
Longitudinal Wire Space 50-200mm Manpower 2 Workers
High Light

servo motor wire mesh welding machine


width 2.5m wire mesh welding machine


servo motor wire mesh welder

Leave a Message
Product Description

Servo Motor Pull Mesh Mesh Width 2.5m Steel Wire Mesh Welding Machine



Steel Wire Mesh Welding Machine Introduction:


Our steel wire mesh welding machine adopts synchronous control technique, welding time and sub-control welding is composed of PLC program system. Touch screen and keyboard input panel forms make operation more intellectualized and reasonable. The biggest advantage of this system is that more than 30 kinds of different mesh size can be welded on the same panel. New and high efficiency of welding machine transformer expands welding wire diameter scope. Easy handling and high flexibility and high working efficiency achieve a perfect welding machine.


Steel Wire Mesh Welding Machine Features:


1. Both line and cross wires are fed from pre-cut wires.Line wires are sent by labor and fed automatically while cross wires are added and fallen automatically from the hopper,it adopts servo motor to pull the mesh repeatedly.when it is welding and drawing,servo motor to pull the mesh repeatedly.when it is welding and drawing,labors could prepare the wires for next, so it has increased the production efficiently

2. The add hopper storage the cross and after the cross is drilled by the hopper throwing wire wheel,the crawl wire will send the cross to the middle of the two line.

3. CNC wheel-step design to provide high accurate mesh grid

4. Electrode lift system to extend electrode life

5. Line wire loop and balance system to ensure wire mesh accuracy

6. Line wire vertical straightening system to provide high quality

7. Welding pressure steplessly adjust to apply multiple wire diameter

8. High speed mesh cutting system

9. Line wire automatic put by from wire feeding car


Steel Wire Mesh Welding Machine Technical Parameters:


Model DX-GWC-1500D DX-GWC-2500D
Wire diameter 3-6mm 3-6mm
Width of mesh 1500mm 2500mm
Length of mesh 6m 6m
Number of welding electrode 31PCS 48PCS
Welding transformer 160kva*4PCS 160KVA*6PCS
Machine weight 3.8T 4.5T
Machine dimension 9500*2200*1600mm 9500*3200*1600mm
Welding speed 75 rows per min 75 rows per min
Main motor power 4.0kw 5.5kw
Power consumption 4-6kw/h 5-6kw/h
Labor required 2 workers 2 workers
Floor space 15*6m 15m*6m


Steel Wire Mesh Welding Machine Applications:


The welded mesh can be used in the fencing protect, floor&wall reinforcing mesh in the building, reinforcing mesh in the tunnel, bridge and road.


Why choose us:


1. We are the most professional manufacturer of machinery and equipment, with 15 years of experience in foreign trade and export.The factory’s production technology is superb, and the quality of the products we sell is guaranteed. If there is any problem withour company’s output and quality, as long as we promise, we will be responsible for it, and we will provide long-term supplies of accessories and consumables.
2. The company adheres to integrity, never deceives customers, and upholds the company philosophy that doing business first is to learn to be a man.
3. After-sales service commitment.
Service tenet: fast, decisive, accurate, thoughtful and thorough.
Service goal: service quality wins customer satisfaction.
Service efficiency: on call, efficient and fast.

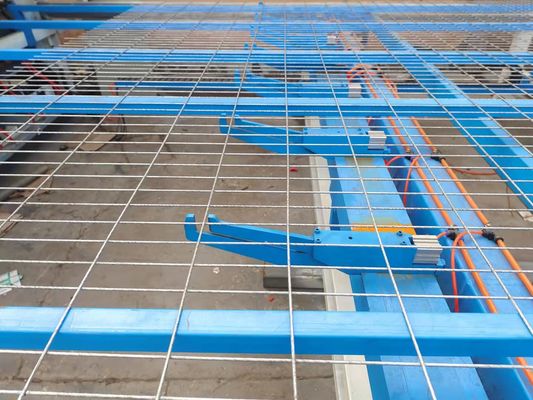

Steel Wire Mesh Welding Machine Photos:


Servo Motor Pull Mesh Width 2.5m Wire Mesh Welding Machine For Steel 0

Servo Motor Pull Mesh Width 2.5m Wire Mesh Welding Machine For Steel 1
