Pet Cage Wire Mesh Welding Machines Motor 4.0kw Hole Size 25.4*25.4mm

Motor 4.0kw Hole Size 25.4*25.4mm Pet Cage Wire Mesh Welding Machine

Pet Cage Wire Mesh Welding Machine Introduction:

1. The Pet cage wire mesh welding machine is automatic welded wire mesh machine used for poultry cage wire 1.5~2.8mm.

2. The Pet cage wire mesh welding machine adapts electrical synchronous technique.

3. The welding time and welding of cage wire mesh welding machine is controlled by integrated electric circuit.

4. The pet cage wire mesh welding machine weld the line and cross wires be solid mesh in the principle of multi-electrode resistance welding.

5. The pet cage wire mesh welding machine consists of welded equipment, longitudinal wire and cross wires feeding device, mesh stepping system and electrical control system and mesh cutting machine.

6. The material of pet cage wire mesh welding machine can be low carbon steel wire or galvanized wire.

7. The longitudinal wires of pet cage wire mesh welding machine are in coil and can be straightened by straightening wheel on the front of the machine and then be put into the line wire entrance.Cross wires of pet cage wire mesh welding machine is feeding in coil wire.

8. The mesh aperture size of pet cage wire mesh welding machine can be adjusted. The longitudinal wire space can be adjusted through adjusting the electrode space. The cross wires space can be adjusted by PLC.

9. The welding speed of pet cage wire mesh welding machine can be 60~120times/min, the work speed mainly depends on the wire material,mesh aperture, choice of welding parameter, proficiency of workers,etc

10. The finished product of pet cage wire mesh welding machine can be in panel.

Pet Cage Wire Mesh Welding Machine Technical Parameters:

Pet Cage Wire Mesh Welding Machine Applications:

Used to make breed aquatic mesh,poultry mesh,coop,pigeon mesh,rabbit mesh and so on.

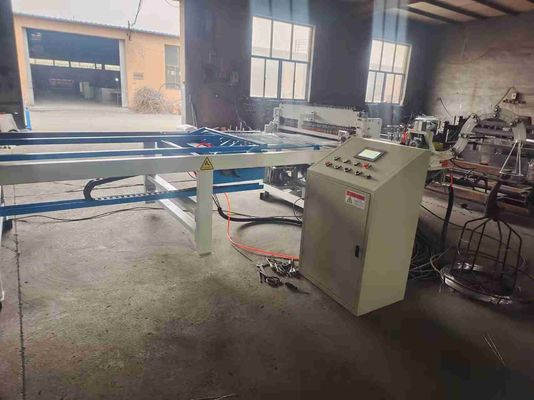

Pet Cage Wire Mesh Welding Machine Photos:
