Hole Size Adjust 415v Mesh Welding Machine Full Automatic Chicken Cage

Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-GWC-1200
Minimum Order Quantity One set
Packaging Details The chicken cage wire mesh welding machine is nude packing. Need one 20 feet container to ship.
Delivery Time 30 working days
Supply Ability 10 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Wire Mesh Welding Machine Warranty 2 Years
Color Can Be Customized Voltage 220V/380V/415V/440V
Type Fully Automatic Mesh Width 1200-1500mm
Rated Capacity 4x125 KVA(customized) Condition New
Welding Speed 60-120 Times Per Min Number Of Welding Electrode 48PCS
Area Of Machine 10*6m Power Transformer 50KVA
High Light

hole size adjust mesh welding machine

,

415v mesh welding machine

,

1200mm automatic wire mesh welding machine

Leave a Message
Product Description

Hole Size Adjust Full Automatic Cage Wire Mesh Welding Machine





Chicken Cage Wire Mesh Welding Machine Introduction:



Longitudinal wires are coil wire feeding,Cross wires are also coil wire feeding,The chicken cage wire mesh welding machine can weld continous wire mesh sheets. This is our new developed chicken cage wire mesh welding machine DX-GWC-1200. The welding speed can be up to maximum 120 times/min. It has advantage of easier machine maintenance, less machine problem, easier to learn and operate, save power and consumption, less welding spark etc. The chicken cage wire mesh welding machine is best choice for you to make all kinds of animal cages.



Chicken Cage Wire Mesh Welding Machine



1. The chicken cage wire mesh welding machine is automatic welded wire mesh machine used for poultry cage wire 1.5~2.8mm.



2. The chciken cage wire mesh welding machine adapts electrical synchronous technique.



3. The welding time and welding of chicken cage wire mesh welding machine is controlled by integrated electric circuit.



4. The chicken cage wire mesh welding machine weld the line and cross wires be solid mesh in the principle of multi-electrode resistance welding.



5. The chicken cage wire mesh welding machine consists of welded equipment, longitudinal wire and cross wires feeding device, mesh stepping system and electrical control system and mesh cutting machine.



6. The longitudinal wires of pet cage wire mesh welding machine are in coil and can be straightened by straightening wheel on the front of the machine and then be put into the longitudinal wire entrance.Cross wires of pet cage wire mesh welding machine is feeding in coil wire.



7. The mesh aperture size of pet cage wire mesh welding machine can be adjusted. The longitudinal wire space can be adjusted through adjusting the electrode space. The cross wires space can be adjusted by PLC.



8. The material of chicken cage wire mesh welding machine can be low carbon steel wire or galvanized wire.



9. The chicen cage wire mesh welding machine need power transformer 50KVA to supply working. And the distance from the power transformer to the chicken cage wire mesh welding machine should be within 100 meters.



Auxiliary Equipments to make Chicken Cage:



1.Cage bending machine is used to bend the top cage mesh and bottom cage mesh.

2.Edge cutting machine is used to cut the extra wires of the mesh side.

3.Door digging machine is used to cut the insider wires of the cage mesh to make a door.

4.C nail gun is used to connect the bottom cage mesh, top cage mesh and partition mesh.

5.Electric cutter is used to cut the mesh manually.

6.Spot welding machine is used to weld the partition mesh, single spot or multi spots.

7.Wire straightening and cutting machine is used to straight and cut the wires.



Chicken Cage Wire Mesh Welding Machine Technical Parameters:



Model DX-GWC-1200 DX-GWC-1500
Wire diameter 1.5-2.8mm 1.5-2.8mm
Mesh width Max 1200mm Max 1500mm
Number of welding electrode 48PCS 60PCS
Longitudinal wire type Coil wire Coil wire
Cross wire type Coil wire Coil wire
Welding transformer 125KVA*4pcs 125kva*6pcs
Welding speed 60-120 times per min 60-120 times per min
Main motor  4.0KW 4.0KW
Straighten motor 2.2kw 2.2kw
Pulling mesh system By servo motor  By servo motor
Mesh length Adjustable Adjustable
Labor cost 1 person 1 person
Machine weight 3500kg 4200kg
Machine dimension 5500*2300*1500mm 5500*2500*1500mm



Chicken Cage Wire Mesh Welding Machine Applications:



Used to make breed aquatic mesh,poultry mesh,coop,pigeon mesh,rabbit mesh and so on.

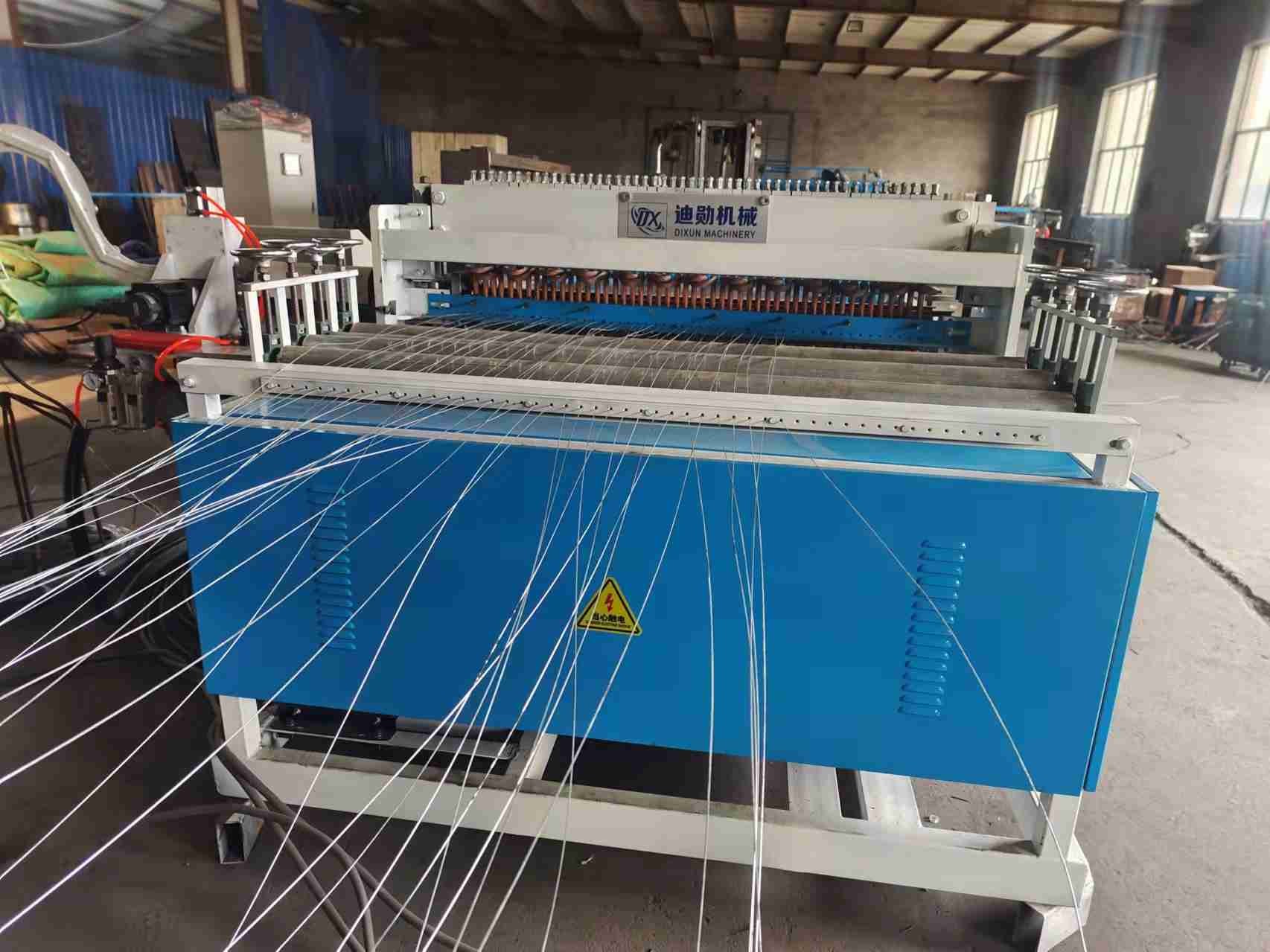

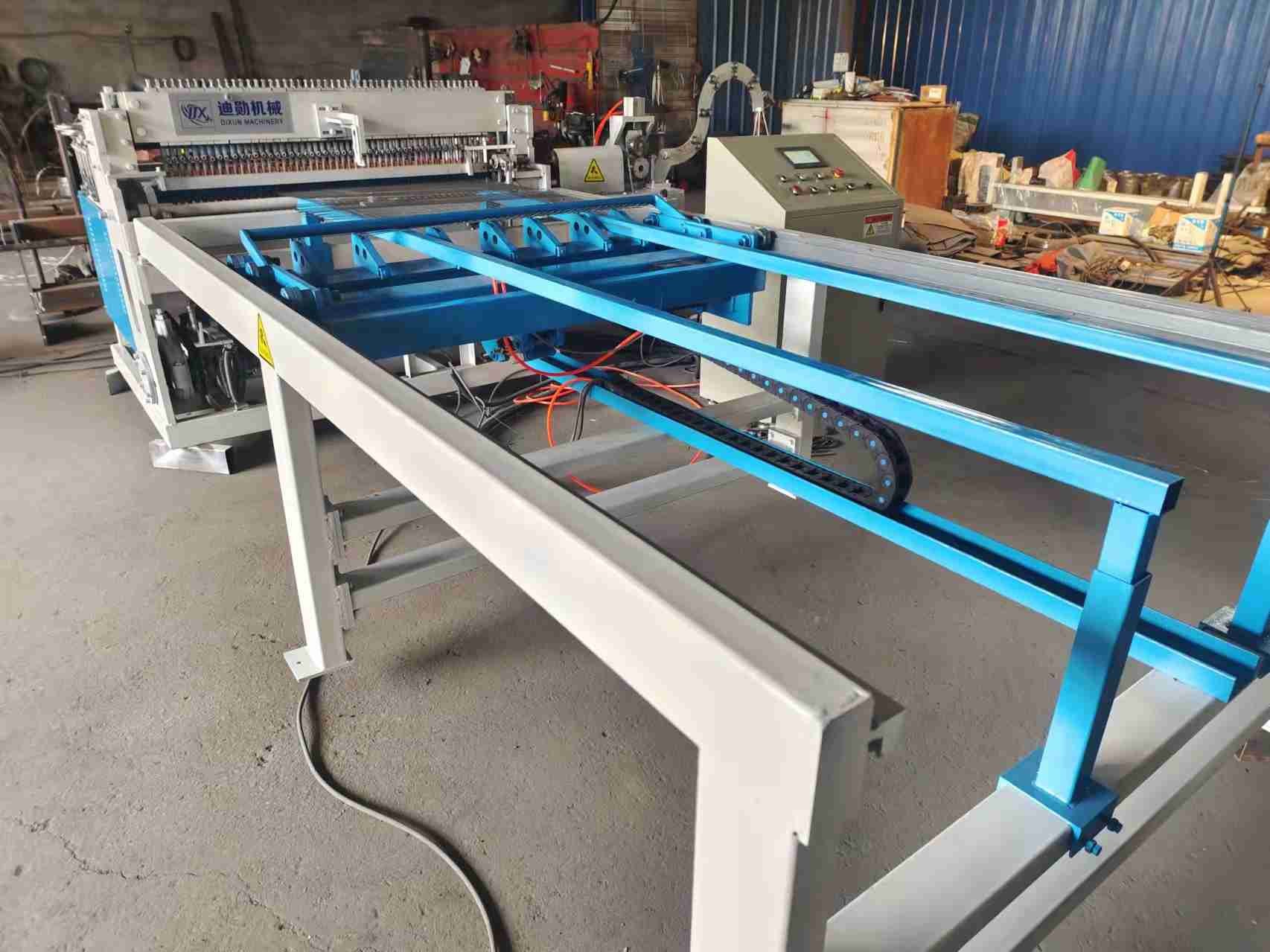

Chicken Cage Wire Mesh Welding Machine Photos:



Hole Size Adjust 415v Mesh Welding Machine Full Automatic Chicken Cage 0

Hole Size Adjust 415v Mesh Welding Machine Full Automatic Chicken Cage 1

Hole Size Adjust 415v Mesh Welding Machine Full Automatic Chicken Cage 2

Hole Size Adjust 415v Mesh Welding Machine Full Automatic Chicken Cage 3
