Rebar Diameter 6-12mm Wire Mesh Welding Machine Output 3 Tons Per Hour

Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-GWC-2500
Minimum Order Quantity One set
Packaging Details The wire mesh welding machine is nude packing. Need one 40ft container to ship.
Delivery Time 30 working days
Supply Ability 8 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Product Name Wire Mesh Welding Machine Machine Type Mechanical
Rated Capacity 160KVA*12PCS Main Motor Power 18KW
Welding Speed 45-65 Times Per Min Pulling Mesh System By Servo Motor
Falling Mesh System Automatic Output 3 Tons Per Hour
Rebar Diameter 6-12mm Length Of Mesh Panel 12m
Mesh Size 100*100mm To 300*300mm Longitudianl Wire Type Pre-straighten And Pre-cut
Cross Wire Type Pre-straighten And Pre-cut Number Of Welding Electrode 24PCS
High Light

6mm wire mesh welding machine


rebar wire mesh welding machine


12mm rebar mesh welding machine

Leave a Message
Product Description

Rebar Diameter 6-12mm Output 3 Tons Per Hour Wire Mesh Welding Machine



Wire Mesh Welding Machine Introduction:


Transverse reinforcement raw material storage frame with funnel method, you can store a lot of raw materials. Easy handling, improve production efficiency and reduce labor costs. Reinforced length delivery processautomaticcontrol. Equipment to strengthen the damping process, effectively reducing noise.Welding wire diameter range of wire mesh welding machine is 6-12 mm, the mesh size is 100-300mm, stepless adjustable. The maximum width of the welding wire mesh is 2500mm (also according to customer requirements).

Main welding machine, an alarm device that can improve the safety level and reduce the failure rate. The greatest degree of assurance of the equipment running smoothly.Welding system uses servo motor control, work accurately and use process does not produce sludge, has little effect on the environment. All key components are well-known brands, the quality of the procurement system in full accordance with ISO9001standards.

The wire mesh welding machine is composed of welding mechanism, longitudinal reinforcement, transverse reinforcement feeding mechanism, mesh stepping mechanism, netting and conveying mechanism, pneumatic system, electrical control system, cooling system and other components.


Wire Mesh Welding Machine Features:


1. The main frame is welded with thick steel plate and section bar,Which can make the main structure more solid and compact.

2. All the keys parts are made of alloys,with heat treatment applied to achieve a very high hardness.Furthermore,the special
anti-corrosion treatment is applied for the surface,to ensure smooth operation of the parts while to prevent corrosion.

3. Many diversified mesh can be set as the customers' request,which bring to the users the flexibility and versatility.

4. Welding uses the new high efficiency welding transformer, more energy efficient than traditional transformer,and solder jointscan be more strong.

5. The wire mesh welding machine all the electrical and pneumatic components adopt well-known brands.

6. The wire mesh welding machine adopt easy operation. No matter which kind of languages the operator speak,they can operate the machine easily and conveniently.

7. Ensuring the Mesh smoothness,The wire mesh welding machine adopt special welding process ,precision welding control system and high quality copperalloy electrodes with unique appearance.


8. Automatic pulling mesh mechanism and automatic net out system

9. After welding, the automatic manipulator will pull out all the mesh pieces. (No need to manually pull the mesh)

10. When the pulled mesh is detected in place on the flip plate, the flip plate will automatically turn down and the mesh will automatically fall off
To conveyor raceway.

11. In the racetrack mesh can be rolled out individually, but also according to customer requirements set more than one roll out, do not stop the network, continuous production, save labor and time, greatly improve production efficiency.

12. When there are more than one mesh on the raceway, it can automatically push the mesh together and put out the mesh in piles.

13. Raceway configuration is 12 meters, the longest mesh finished product is 6 meters. (Special requirements can be customized)


Wire Mesh Welding Machine Technical Parameters:


Parameters Unit Numerical value
Rebar diameter mm 6-12
Width of mesh panel mm 2500
Longitudinal wire space mm 100-250
Transverse wire space  mm 100-400
Number of welding electrode pcs 24
Welding speed  time/min 45-65
Max. rebar diameter mm 12+12
Capacity of welding transformer KVA 160*12
Power transformer  KVA 300
Supply voltage  V 220,380,415,440
Current frequency  Hz 50. 60
Pneumatic system working pressure Mpa ≥0.8
Water cooling working pressure Mpa 0.2≤P<0.3
Compressed air consumption M3/min ≥6
Machine dimension m 36×3.4×2.3
Machine weight Ton 14
Manpower   3 person
Control system   PLC Panasonic Jpan
Power consumption KW/h 20-22


Wire Mesh Welding Machine Applications:


The rebar mesh panel is widely used in the field of Used in airport runway, tunnel, road, concrete pipeline, water conservancy dam foundation, yard head, bridge, multi-storey and high-rise construction, warehouse and sewage treatment pool and other reinforced concrete organization. It has the advantages of improving structural strength, saving steel, saving labor, convenient transportation, fast construction, high precision grid placement scale, easy, large-scale production and cost-effective induction.

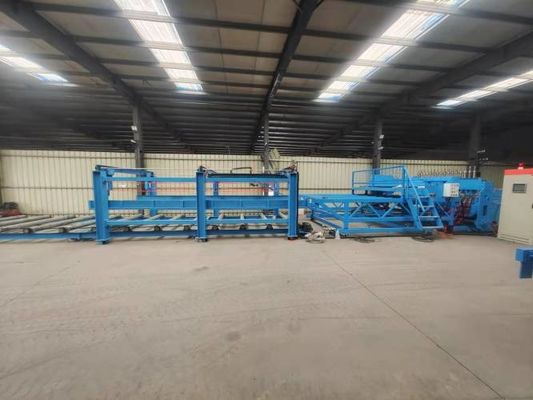

Wire Mesh Welding Machine Photos:


Rebar Diameter 6-12mm Wire Mesh Welding Machine Output 3 Tons Per Hour 0

Rebar Diameter 6-12mm Wire Mesh Welding Machine Output 3 Tons Per Hour 1

Rebar Diameter 6-12mm Wire Mesh Welding Machine Output 3 Tons Per Hour 2

Rebar Diameter 6-12mm Wire Mesh Welding Machine Output 3 Tons Per Hour 3
