Roll Height 2.4m Welded Wire Mesh Machine Capacity 300 Rolls Per Day

Roll Height 2.4m Capacity 300 rolls per day Welded Wire Mesh Machine

Welded Wire Mesh Machine Introduction:

This welded wire mesh machine is improved by our company according to the needs of customers.the machine has added an intelligent roll mesh system on the basis of the original one,which can adjust the roll mesh speed according to the welding speed of the machine, so as to make the mesh roll even and beautiful.

Welded Wire Mesh Machine Advantages:

1. The mesh size is directly set on the touch screen, which is convenient and simple.                                                                                    2. Vibration device is added to the cross wire feeding system to prevent wire winding.
3. The line wire automatic wire feeding and the cross wire are pre-straightening and cutting.
4. Cross wire adjustment on screen, line wire adjustment need move the welding electrode.
5. The mesh roll length can be set by the control panel.
6. We can easily adjust the welding current when we need to weld different wire diameters.
7. We can set the output and stop the machine automatically after the mesh production finished.
8. The finished product roll mesh is smooth and the error of opposite angle line is small.

Welded Wire Mesh Machine Features:

Longitudinal wire straightening wheel

Each line wire will pass through the straightening wheel, which can make the mesh more flat and beautiful.



Cross wire feeding system moving device

The engineer specially added a mobile device to the cross wire feeding system, which can facilitate the customer to adjust the mesh size and move the welding electrode.



Electrode and copper base

The electrode and copper base are all made of high chromium copper, which is a special alloy material with wear resistance and high temperature resistance. Increase the service life of the electrode.



Welded Wire Mesh Machine Technical Parameters:



Model	DX-GWC-2000	DX-GWC-2500	DX-GWC-3000
Mesh width	Max.2000 mm	Max.2500 mm	Max.3000 mm
Mesh hole size	100 mm 150 mm 200 mm 300 mm	100 mm 150 mm 200 mm 300 mm	100 mm 150 mm 200 mm 300 mm
Wire diameter	2.5-6.0 mm	2.5-6.0 mm	2.5-6.0 mm
Welding speed	40-60 Times/min	40-60 Times/min	40-60 Times/min
Welding transformer	125KVA*4pcs	125KVA*5pcs	125KVA*6pcs
Dimensions	8.5 X 2.5 X 1.65 m	9.5 X 3.0 X 1.65 m	12 X 3.5 X 1.65 m
Weight	5500 KG	6500 KG	7500 KG

Welded Wire Mesh Machine Applications:



Welded wire mesh is mainly used in coal mine roadway protection and reinforcement, concrete pavement, bridge pavement, airport runway, tunnel lining, floor, roof, wall, floor, concrete pipe, pile and so on.

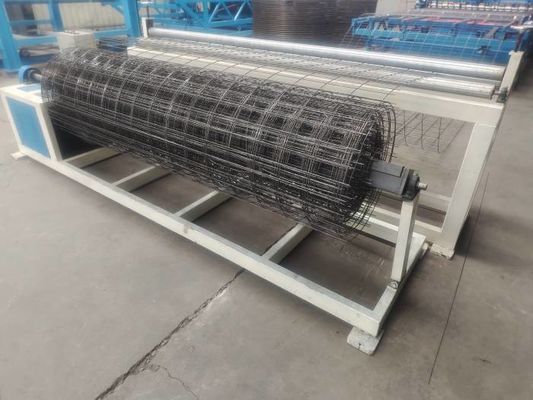

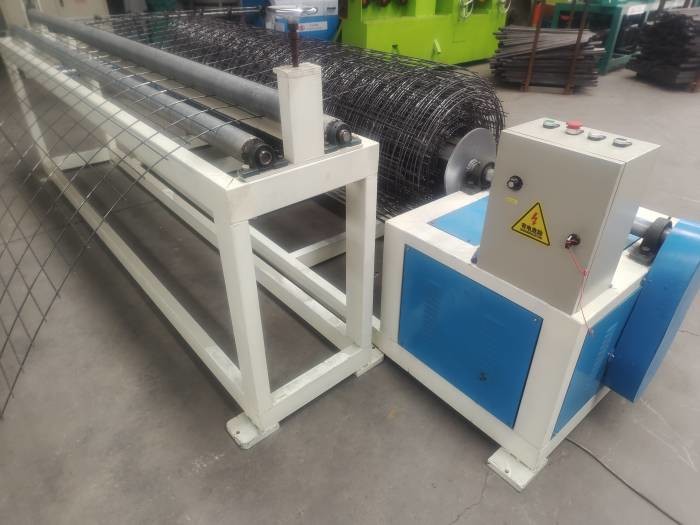

Photos of Welded Wire Mesh Machine:
