Product Details
Product Name Wire Mesh Spot Welding Machine Hole Size 50*50mm 100*100mm 150*150mm 200*200mm
Mesh Width 1000mm.1200mm,1500mm,2000mm,2500mm Wire Diameter 4-8mm
Main Motor 11kw Mesh Length 6m
Number Of Welding Electrode 51PCS Transformer Capacity 160KVA
Size Of Welding Electrode 30*30*18mm Machine Weight 5500kg
Machine Dimension 8500*3200*2100mm Machine Color As Per Request
High Light

160KVA Wire Mesh Spot Welding Machine

,

2.5m Wire Mesh Spot Welding Machine

,

160KVA wire mesh welder

Leave a Message
Product Description

Transformer Capacity 160KVA Mesh Width 2.5m Wire Mesh Spot Welding Machine





Introduction of Wire Mesh Spot Welding Machine:



Wire mesh spot welding machine adopts power electronic synchronous control technology, welding time and separate control welding are managed by automatic control system, human-machine interface, intelligent operation, humanization. Separate the welding transformer to reduce the requirement of power transformer.



Features of Wire Mesh Spot Welding Machine:



1. Control system Mitsubishi or Panasonic PLC automatic control system, combined with Weinview touch screen, can directly input and display equipment operating parameters, intelligent and easy to operate.



2. Weft wire hopper: the stepper motor drives the disk-type device to drop wires automatically, and the hopper has a large capacity of storing wires max up to 1.5 tons. When there is no cross wire in the hopper, the equipment will stop running automatically.



3. Sending longitudinal wire feeding mechanism: servo motor is equipped with planetary reducer to drive pneumatic compression wire feeding device to send wire to the welding position. The equipment is automatically welding.



4. Mesh pulling mechanism: Japan Panasonic servo motor supporting planetary reducer drives pneumatic clamping mesh pulling device to ensure the stability of the system and the standard size of the welded mesh.Automatic reciprocating mesh drawing can realize the production of lengthening size mesh.



5. Water-cooled welding electrodes and a new type of special water-cooling transformer welding mesh with epoxy resin are adopted, which is smaller in size and higher in safety and reliability than traditional transformers.



6. Low-voltage electrical appliances are made of Schneider, well-known brands to ensure the efficient and stable operation of the equipment.



7. The wire mesh spot welding machine will stop working automatically if there is no cross wires in hopper device.



8. When there is malfunction on the machine, the PLC will alarm, which is convenient to adjust the machine.



9. The cross wire space adjustment adopts PLC micro-computer control, set on the touch screen.Very easy and convenient to operate.

The mesh pulling system is automatically calculated in cycle.No need manual setting. The mesh pulling car can be back to origin automatically after finishing the pulling mesh.



Technical Parameters of Wire Mesh Spot Welding Machine:



Model DX-GWCD-2000 DX-GWCD-2500
Wire diameter 4-8mm 4-8mm
Longitudinal wire space 50-250mm 50-250mm
Cross wire space 50-250mm 50-250mm
Number of electrode 41PCS 51PCS
Transformer capacity 160KVA*7PCS 160KVA*9PCS
Main motor 7.5KW 11KW
Power supply  120KVA 120KVA
Floor space 20*6m 20*6m
Labor cost 2 persons 2 persons
Pulling mesh system By servo motor By servo motor
Longitudinal wire type Pre-cut Pre-cut
Cross wire type Pre-cut Pre-cut
Control system PLC PLC
Power consumption 6-8kw/h 7-9kw/h



Applications of Wire Mesh Spot Welding Machine:



Wire Mesh is mainly used in coal mine roadway protection and reinforcement, concrete pavement, bridge pavement, airport runway, tunnel lining, building floor, roof, wall, floor, concrete pipe, ground pile.



Loading Photos of Wire Mesh Spot Welding Machine:

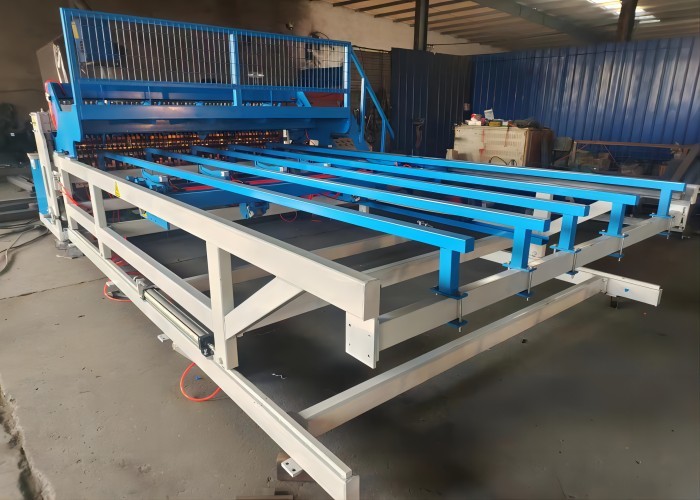

Transformer Capacity 160KVA Width 2.5m Wire Mesh Spot Welding Machine 0

Transformer Capacity 160KVA Width 2.5m Wire Mesh Spot Welding Machine 1



Photos of Wire Mesh Spot Welding Machine:

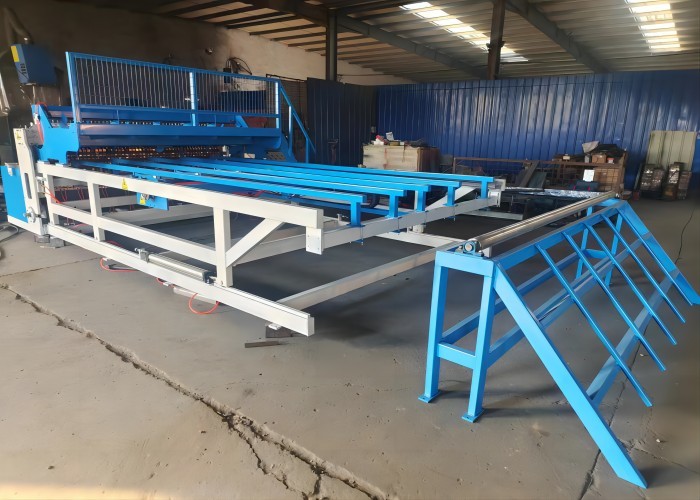

Transformer Capacity 160KVA Width 2.5m Wire Mesh Spot Welding Machine 2
