Wire 8mm Motor 11kw Reinforcing Mesh Welding Machine PLC Controlled

  • Wire 8mm Motor 11kw Reinforcing Mesh Welding Machine PLC Controlled
  • Wire 8mm Motor 11kw Reinforcing Mesh Welding Machine PLC Controlled
  • Wire 8mm Motor 11kw Reinforcing Mesh Welding Machine PLC Controlled
Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-GWCD-2500
Minimum Order Quantity One set
Packaging Details The reinforcing mesh welding machine is nude packing. Put into 40 feet container.
Delivery Time 30 working days
Supply Ability 10 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Reinforcing Mesh Welding Machine Wire Diameter 4.0-8.0mm
Width Of Mesh 2500mm Longitudinal Wire Space 50-250mm
Weft Wire Space 50-300mm Length Of Mesh 6m/12m
Number Of Welding Electrode 51 Pcs Welding Speed 40-75 Times Per Min
Main Motor 11kw Size Of Welding Electrode 30*30*18mm
Machine Weight 6500kg Machine Dimension 8500*3200*2300mm
Control System PLC Control Condition New
High Light

11kw Reinforcing Mesh Welding Machine

,

Reinforcing Mesh Welding Machine PLC controlled

,

weld mesh making machine PLC Controlled
Leave a Message
Product Description

Wire Diameter 8mm Motor 11kw Reinforcing Mesh Welding Machine





Introduction of Reinforcing Mesh Welding Machine:



Reinforcing mesh welding machine adopts CNC synchronous control technology, welding time and sub-control welding time are composed of PLC digital programming system, input panel for touch screen or keyboard two, more intelligent operation, rationalization. The steel mesh welder adopts one pressing and multiple welding. The biggest advantage of the control is that more than 30 different sizes of mesh holes can appear between warp and weft on the same mesh surface. A new type of highly efficient water-cooled welding transformer is adopted to expand the range of welding wire diameters. (The automatic welder has a high degree of automation, reduces a lot of manual operation, can be efficient, automatic welding mesh.)



Features of Reinfrocing Mesh Welding Machine:



1. The welding mesh machine each group of transformers are controlled by a separate microcomputer, a pressure multiple welding, the biggest advantage of the control is: can appear on the same mesh between the latitude and latitude of more than 30 different sizes of holes.
2. The welding electrode head of the welding mesh machine is made of high quality chromium pick copper material, long service life, reduce the production cost.
3. The welding wire feeding method: the diameter wire using artificial wire, automatic wire feeding function. Accurate position, saving welding waiting time.
4. Feeding mode of the welding mesh machine: automatic feeding of the weft wire hopper, accurate feeding position.
5. The reinforcing mesh welding machine drawing mode: the servo motor reciprocating mesh, pneumatic tightening weft wire, to ensure the accurate position of the mesh.



Technical Parameters of Reinforcing Mesh Welding Machine:



Model DX-GWCD-2500 Wire diameter 4.0-8.0mm
Longitudinal wire type Pre-cut Longitudinal wire space 50-300mm
Weft wire type Pre-cut Weft wire space 50-300mm
Welding transformer capacity 160KVA*9PCS Number of welding electrode 51PCS
Floor space 20*8m Labor cost 2 persons
Power consumption  8-10 kw/h Machine weight 6500kg
Machine dimension 8500*3200*2300mm Pulling mesh method By servo motor
Power supply 120KVA Machine color As per request
Welding speed 40-75 times per min Welding pressure Spring
Welding method By silicon controlled Control system By PLC control



Applications of Reinforcing Mesh Welding Machine:



The reinfrocing mesh widely can be used in coal mine mesh support, highway guardrail mesh, fence mesh, construction mesh, high-rise building mesh.



Loading Photos of Reinforcing Mesh Welding Machine:



Wire 8mm Motor 11kw Reinforcing Mesh Welding Machine PLC Controlled 0

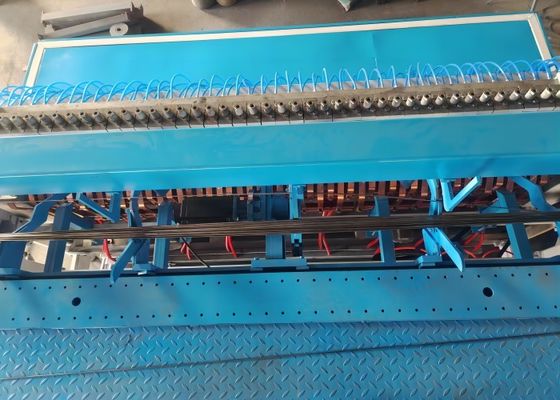

Photos of Reinforcing Mesh Welding Machine:



Wire 8mm Motor 11kw Reinforcing Mesh Welding Machine PLC Controlled 1

Wire 8mm Motor 11kw Reinforcing Mesh Welding Machine PLC Controlled 2
