Diameter 3-6mm Width 2000mm Wire Mesh Manufacturing Machine 200KVA
|Place of Origin||China|
|Minimum Order Quantity||One set|
|Packaging Details||1.main machine and accessory equipment will be packed with sketch film paper; 2.control cabinet and spare parts will be packed with the wooden box; 3.finally all the machines will be fixed with hornwoods and steel oil wire rope,ensure them stable and not|
|Delivery Time||30 working days|
|Supply Ability||One set per month|
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||Wire Mesh Welding Production Line||Wire Diameter||3-6mm|
|Mesh Width||2m||Longitudinal Wire Space||50-200mm|
|Weft Wire Space||50-200mm||Mesh Length||6m|
|Longitudinal Wire Type||Coil Wire Feeding||Weft Wire Type||Pre-cut Wire|
|Welding Speed||45-70 Times Per Min||Main Motor||7.5kw|
|Floor Space||70*15m||Power Supply||200KVA|
2000mm Wire Mesh Manufacturing Machine,
Wire Mesh Manufacturing Machine 200KVA,
weld mesh making machine 200KVA
Wire Diameter 3-6mm Mesh Width 2m Wire Mesh Welding Production Line
Introduction of Wire Mesh Welding Production Line:
The wire mesh welding production line is mainly through automatic numerical control technology to fast and accurate steel welding into a mesh, the biggest feature is automatic type, can make the finished product in mesh panel, longitudinal wire and weft wire can realize automatic feeding, automatic straightening, automatic feeding, automatic welding, automatic pulling out, automatic cutting, automatic mesh, automatic turning over mesh, automatic push together, automatic roll out. Ensure the welding fast and seamless change of specifications, to achieve accurate and fast welding, to ensure quality.
Features of Wire Mesh Welding Production Line:
1. Longitudinal wire and weft wire can automatic feeding, automatic straightening, automatic feeding, automatic welding, automatic pulling out, automatic cutting, automatic turn over mesh, automatic push together, automatic roll out.
2. The whole machine adopts computer and programmable controller control, high degree of automation.
3. Imported automatic digital servo motor system to ensure accurate mesh size.
4. The wire mesh welding production line can weld galvanized wire,low carbon wire.
5. The welding system of transformer, thyristor, upper and lower electrode adopts forced water cooling and is equipped with flow protection device. The unit can work continuously and reliably.
6. According to the user's power capacity, the use of one or multiple welding, flexibility.
7. The blanking device adopts mechanical transmission to reduce labor intensity and improve production efficiency.
8. Automatic positioning network long shear mechanism, accurate cut off the mesh.
9. The longitudinal bar is designed with line divider, and the changing mesh is flexible and convenient to ensure the accuracy of the finished mesh.
10. Unique lifting mechanism, mesh drag to lift away from the electrode, to ensure the electrode life
11. The longitudinal bar has a material storage mechanism, can ensure the quality of continuous material supply.
12. Longitudinal line using longitudinal and transverse straightening mechanism, to ensure the straightness of the wire, ensure the beauty of the mesh.
13. The unit adopts separable structure, convenient specification adjustment and maintenance.
14. Welding pneumatic system pressure is stepless adjustable, fast response to steel bar specification changes, welding pressure uniform, to ensure the quality of all solder joints.
15. Welding standard net, the upper and lower electrode positions do not need to adjust, so as to change the spacing, greatly improve the efficiency.
16. The weft wire adopts automatic step blanking, equipped with a detection device in place, to ensure reliable and accurate blanking.
Technical Parameters of Wire Mesh Welding Production Line:
|Control system||Siemens Germany||Siemens Germany|
|Numer of welding electrode||40 PCS||50 PCS|
|Mesh width||Max. 2000mm||Max. 2500mm|
|Mesh length||Max. 6m||Max. 6m|
|Welding transformer capacity||160KVA X 5PCS||160KVA X 7PCS|
|Water cooling welding transformer||YES||YES|
|Welding speed||45-70 times per min||45-70 times per min|
|Machine weight||15 tons||17 tons|
|Pulling mesh system||By servo motor||By servo motor|
|Labor cost||2 persons||2 persons|
|Voltage||220V 380V 415V 440V||220V 380V 415V 440V|
Applications of Wire Mesh Welding Production Line:
Wire Mesh is mainly used in coal mine roadway protection and reinforcement, concrete pavement, bridge pavement, airport runway, tunnel lining, building floor, roof, wall, floor, concrete pipe, ground pile and other aspects.

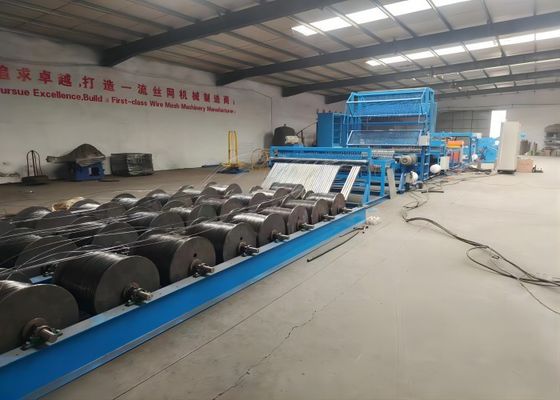

Photos of Wire Mesh Welding Production Line:
