Mesh Length 6m Turn Over Fence Mesh Welding Machine Fast Speed

Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-GWC2000
Minimum Order Quantity One set
Packaging Details 1.main machine and accessory equipment will be packed with sketch film paper; 2.control cabinet and spare parts will be packed with the wooden box; 3.finally all the machines will be fixed with hornwoods and steel oil wire rope,ensure them stable and not
Delivery Time 30 working days
Supply Ability One set per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Product Name Wire Mesh Welding Machine Wire Diameter 3-6mm
Mesh Width 2m Longitudinal Wire Space 50-200mm
Weft Wire Space 50-200mm Mesh Length 6m
Longitudinal Wire Type Coil Wire Feeding Weft Wire Type Pre-cut Wire
Welding Speed 45-70 Times Per Min Main Motor 7.5kw
Floor Space 70*15m Power Supply 200KVA
Control System Siemens PLC Production Capacity 50 Sheets Per Hour
High Light

6m Fence Mesh Welding Machine


Fence Mesh Welding Machine Fast Speed


wire net making machine Fast Speed

Leave a Message
Product Description

Mesh length 6m Turn Over Mesh Siemens PLC Wire Mesh Welding Machine



Introduction of Wire Mesh Welding Machine:


1. This wire mesh welding machine is a kind of automatic special welding machine which can automatically process and weld round steel plate into steel mesh.

2. The mesh stepping mechanism is controlled by CNC servo motor, with high accuracy and easy adjustment.

3. Automatic measuring cutting mechanism, fast speed, high precision, good quality.

4. Welding electrode height adjustable, long service life.

5. The weft wire is tested in place to avoid missing welding and ensure the quality of the mesh.


Features of Wire Mesh Welding Machine:


1. Longitudinal wire and weft wire can automatic feeding, automatic straightening, automatic feeding, automatic welding, automatic pulling out, automatic cutting, automatic turn over mesh, automatic push together, automatic roll out.

2. The whole machine adopts computer and programmable controller control, high degree of automation.

3. Imported automatic digital servo motor system to ensure accurate mesh size.

4. The wire mesh welding machine can weld galvanized wire,low carbon wire.

5. The welding system of transformer, thyristor, upper and lower electrode adopts forced water cooling and is equipped with flow protection device. The unit can work continuously and reliably.

6. According to the user's power capacity, the use of one or multiple welding, flexibility.

7. The blanking device adopts mechanical transmission to reduce labor intensity and improve production efficiency.

8. Automatic positioning network long shear mechanism, accurate cut off the mesh.

9. The longitudinal bar is designed with line divider, and the changing mesh is flexible and convenient to ensure the accuracy of the finished mesh.

10. Unique lifting mechanism, mesh drag to lift away from the electrode, to ensure the electrode life

11. The longitudinal bar has a material storage mechanism, can ensure the quality of continuous material supply.

12. Longitudinal line using longitudinal and transverse straightening mechanism, to ensure the straightness of the wire, ensure the beauty of the mesh.

13. The unit adopts separable structure, convenient specification adjustment and maintenance.


Advantages of Wire Mesh Welding Machine:


The wire mesh welding machine adopts Siemens servo motor control and Siemens PLC touch screen control, to ensure the smooth and accurate working process, so that human-computer interaction is easier. This machine conforms to Chinese ISO90001 standard and European Union safety certification standard.


Technical Parameters of Wire Mesh Welding Machine:


Model DX-GWC-2000 DX-GWC-2500
Control system Siemens Germany Siemens Germany
Numer of welding electrode 40 PCS 50 PCS
Mesh width Max. 2000mm Max. 2500mm
Mesh length Max. 6m Max. 6m
Welding transformer capacity 160KVA X 5PCS 160KVA X 7PCS
Water cooling welding transformer YES YES
Welding speed 45-70 times per min 45-70 times per min
Welding pressure Spring Spring
Machine dimension 45*2.7*2.3m 45*3.2*2.3m
Machine weight 15 tons 17 tons
Pulling mesh system By servo motor By servo motor
Power consumption 7-8kw/h 7-8kw/h
Labor cost 2 persons 2 persons
Voltage 220V 380V 415V 440V 220V 380V 415V 440V


Applications of Wire Mesh Welding Machine:


Wire Mesh is mainly used in coal mine roadway protection and reinforcement, concrete pavement, bridge pavement, airport runway, tunnel lining, building floor, roof, wall, floor, concrete pipe, ground pile and other aspects.

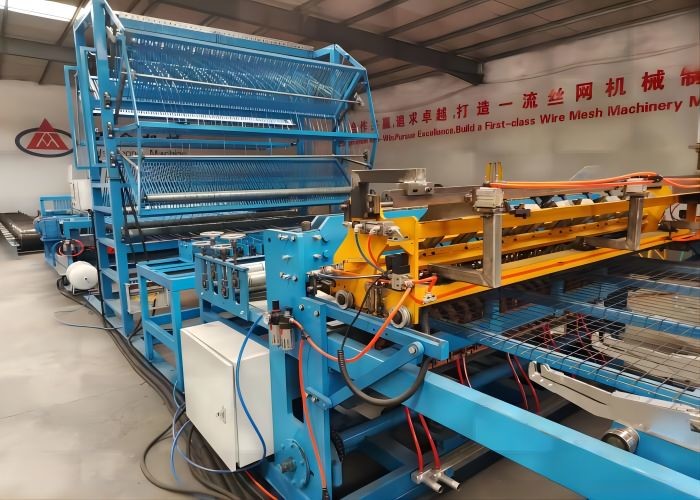

Photos of Wire Mesh Welding Machine:


Mesh Length 6m Turn Over Fence Mesh Welding Machine Fast Speed 0

Mesh Length 6m Turn Over Fence Mesh Welding Machine Fast Speed 1

Mesh Length 6m Turn Over Fence Mesh Welding Machine Fast Speed 2

Mesh Length 6m Turn Over Fence Mesh Welding Machine Fast Speed 3
