Line Wire Auto Feeding House Building Fence Mesh Panel Welding Machine 200A
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||Fence Mesh Panel Welding Machine||After-sales Service Provided||Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service|
|Welding Speed||40-60 Times/minute||Mesh Width||Max 2500mm|
|Control System||PLC+Touch Screen||Cross Wire Space||50-200mm|
|Cross Wire Loading Capacity||200kg||Power Consumption||7-8 KW Per Hour|
Auto Feeding fence mesh panel welding machine,
Auto Feeding welded wire mesh fence machine,
Fence Mesh Panel Welding Machine 200A
Line Wire Auto Feeding House Building Fence Mesh Panel Welding Machine
Introduction of Fence Mesh Panel Welding Machine:
The fence mesh panel welding machine adopts synchronous control technology, welding time and controlled welding are composed of PLC digital programming system, input panel for touch screen or key two, make the machine more intelligent, reasonable. With a single pressing, divided welding. The advantage of this control is that holes of different sizes can appear between weft and weft in the same net. Welding adopts a new high-efficiency welding transformer, which can be divided into eight levels to expand the range of welding wire diameter. Easy to operate, high flexibility, is artificial single spot welding machine several times the output.
Features of Fence Mesh Panel Welding Machine:
The fence mesh panel welding machine adopts indirect welding technology, a pressing and fractional welding, welding time and fractional control welding are composed of PLC digital programming system, input panel for touch screen or key two, more intelligent operation, rationalization.
Per-cut line wire by manual feeding, per-cut cross wires auto feeding with the high production rate,which keep the mesh surface is very flat. The hopper adopts the steeping motor control ,brake motor wheels and the cross wire will fallen automatically from the hopper.
Our transformers adopts big power at 125KVA every one,which can ensure the welding quality in good condition and adopt water cooling system. Our clients are very satisfied with our new development. The greatest advantage is that you can adjust the distance of cross wire at random on the same one piece wire mesh sheet very easily, and only need to set the any space required on the touch screen.
Advantages of Fence Mesh Panel Welding Machine:
1. Adopts electrical synchronous control technique. Both separate-phase welding and welding time are controlled by digital and integrated electric circuit. This operation is accurate and stable. Firm welded spot is firm and without welded tracks.
2. The input front-panel is touch screen. The operation is more intelligent and reasonable.
3. The line wire and the cross wire are pre-straightened and pre-cut.
4. Wire mesh panel is pulled by the servo motor automatically.
5. Line wire feeding device save more welding time. The cross wire feeds from the hopper automatically.
6. The transformer adopts water-cooling system. The water cooling system prolongs the service time of transformer.
Technical Parameters of Fence Mesh Panel Welding Machine:
|Number of welding electrode||40 PCS|
|Rated capacity||160KVA X 5 PCS|
|Line wire type||Pre-cut|
|Cross wire type||Pre-cut|
|Line wire space||50-250mm|
|Cross wire space||50-300mm|
|Line wire feeding||Automatic|
|Cross wire feeding||Automatic|
|Material of welding electrode||CuCrZr|
Applications of Fence Mesh Panel Welding Machine:
It is mainly used in large-scale industrial workshops, large-scale venues, workshop flat bottom, bridge pavement, highway pavement, tunnel lining, subway engineering, highway engineering, housing engineering, airport construction and other projects.

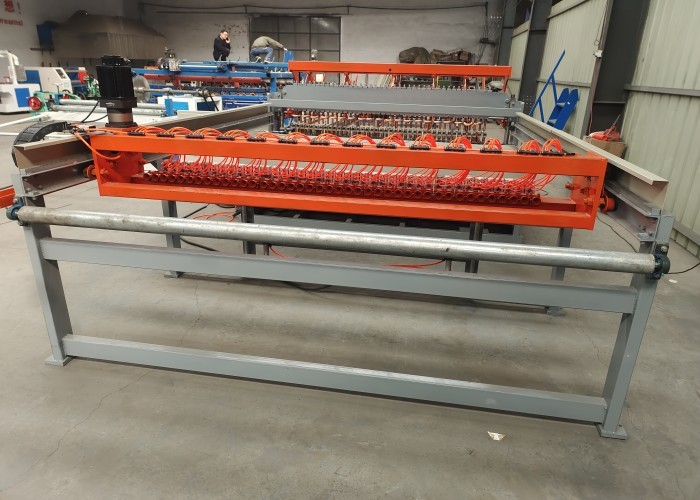

Photos of Fence Mesh Panel Welding Machine:
