Mesh Length 6m Welded Wire Mesh Fence Machine Panasonic PLC Controlled
| Place of Origin | China |
|---|---|
| Brand Name | DIXUN |
| Certification | CE |
| Model Number | DX-GWCD-2000 |
| Minimum Order Quantity | One set |
| Packaging Details | Nude packing. Put into 20 feet container. |
| Supply Ability | 10 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Fence Mesh Panel Welding Machine | After-sales Service Provided | Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service |
|---|---|---|---|
| Wire Diameter | 2.5-6mm | Voltage | 380V/50HZ/Customized |
| Welding Speed | 40-60 Times/minute | Mesh Width | Max 2500mm |
| Control System | PLC+Touch Screen | Cross Wire Space | 50-200mm |
| Current | 200A | Mesh Length | 6000mm |
| Cross Wire Loading Capacity | 200kg | Power Consumption | 7-8 KW Per Hour |
| High Light | Welded Wire Mesh Fence Machine PLC Controlled,6m Welded Wire Mesh Fence Machine,fence mesh welding machine PLC Controlled |
||
Product Description
Panasonic PLC Mesh Length 6m Welded Fence Mesh Welding Machine
Introduction of Welded Fence Mesh Welding Machine:
The welded fence mesh panel welding machine adopts synchronous control technology, welding time and controlled welding are composed of PLC digital programming system, input panel for touch screen or key two, make the machine more intelligent, reasonable. With a single pressing, divided welding. The advantage of this control is that holes of different sizes can appear between weft and weft in the same net. Welding adopts a new high-efficiency welding transformer, which can be divided into eight levels to expand the range of welding wire diameter. Easy to operate, high flexibility, is artificial single spot welding machine several times the output.
Features of Welded Fence Mesh Panel Welding Machine:
The fence mesh panel welding machine adopts indirect welding technology, a pressing and fractional welding, welding time and fractional control welding are composed of PLC digital programming system, input panel for touch screen or key two, more intelligent operation, rationalization.
Per-cut line wire by manual feeding, per-cut cross wires auto feeding with the high production rate,which keep the mesh surface is very flat. The hopper adopts the steeping motor control ,brake motor wheels and the cross wire will fallen automatically from the hopper.
Our transformers adopts big power at 125KVA every one,which can ensure the welding quality in good condition and adopt water cooling system. Our clients are very satisfied with our new development. The greatest advantage is that you can adjust the distance of cross wire at random on the same one piece wire mesh sheet very easily, and only need to set the any space required on the touch screen.
Technical Parameters of Welded Fence Mesh Panel Welding Machine:
| Model | DX-GWCD-2000 |
| Mesh width | 2000mm |
| Mesh length | 6000mm |
| Number of welding electrode | 40 PCS |
| Rated capacity | 160KVA X 5 PCS |
| Main motor | 5.5KW |
| Line wire type | Pre-cut |
| Cross wire type | Pre-cut |
| Line wire space | 50-250mm |
| Cross wire space | 50-300mm |
| Line wire feeding | Automatic |
| Cross wire feeding | Automatic |
| Machine weight | 4500kg |
| Machine dimension | 14*2.7*1.8m |
| Material of welding electrode | CuCrZr |
Applications of Welded Fence Mesh Panel Welding Machine:
It is mainly used in large-scale industrial workshops, large-scale venues, workshop flat bottom, bridge pavement, highway pavement, tunnel lining, subway engineering, highway engineering, housing engineering, airport construction and other projects.

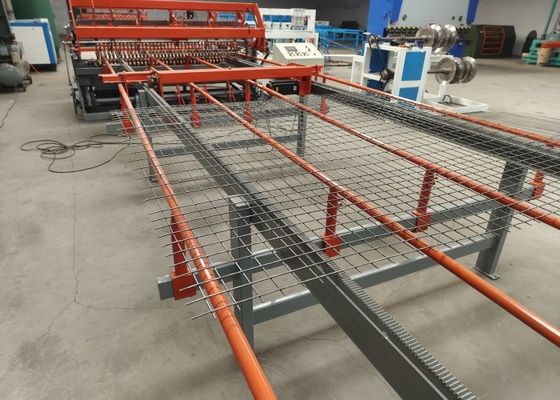

Photos of Welded Fence Mesh Panel Welding Machine:
