Mesh Size 75mm Wall Reinforcement Brick Force Mesh Welding Machine High Efficiency

  • Mesh Size 75mm Wall Reinforcement Brick Force Mesh Welding Machine High Efficiency
  • Mesh Size 75mm Wall Reinforcement Brick Force Mesh Welding Machine High Efficiency
  • Mesh Size 75mm Wall Reinforcement Brick Force Mesh Welding Machine High Efficiency
Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-ZDW-75
Minimum Order Quantity One set
Packaging Details brick force mesh machine package by plastic membrane then loading in container.
Delivery Time 30 working days
Supply Ability 5 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Brick Force Mesh Welding Machine Longitudinal Wire Type Coil Wire Feeding
Cross Wire Type Pre-cut Wire Diameter 1.6-3.0mm
Mesh Size 75mm,115mm,230mm Motor 4.0kw
Mesh Width Max. 1000mm Welding Way By Silicon Controlled
Production Capacity 4 Rolls One Time Labor Cost One Person
Length Of Mesh 20m One Roll Power Transformer 80KVA
High Light

Reinforcement Brick Force Mesh Welding Machine

,

75mm Brick Force Mesh Welding Machine

,

Wire Mesh Welder High Efficiency
Leave a Message
Product Description

Mesh Size 75mm Wall Reinforcement Brick Force Mesh Welding Machine





Introduction of Brick Force Mesh Welding Machine:



The brick force mesh welding machine adopts numerical control synchronous control technology. The welding time and the sub-control welding time are all composed of PLC digital programming system. The servo motor pulls the mesh, and the input panel is touch screen or keyboard. The operation is more intelligent and rational. The device has the advantages of stable performance, firm solder joints and precise welding dimensions. The machine adopts power electronic synchronous control technology, which can automatically slice and automatically wind up, with high output, stable performance, firm solder joints and no burn marks.



Function Features of Brick Force Mesh Welding Machine:



1.The brick force mesh welding production line is a new research and development project designed for some countries in Africa.

2. It works with coil wire feeding ,the double work position welding and automatic centerless grinding roll and shear mesh .

3. The rolling mesh device is mainly composed of the mesh tension ,guide rolling mesh ,cutting and dial the mesh devise ,which has greatly improve the work efficiency ,eliminating the need of for manual downtime cut mesh rewinding.



Advantages of Brick Force Mesh Welding Machine:



1. Famous electrical brand:German Siemens PLC. Japan Mitsubishi servo driver. Taiwan Delta inverter. Low-voltage air switch and encoder all in France Schneider.

2. The cross and line wire feeding by draw drum accompany the wire straightening device.

Save time and more covenient.

3. The mesh pulling by servo moto and reducer, It will make the mesh more accurate .

4. The control system adopt PLC system, touch screen operation and it is more intelligent and rationalization.



Technical Parameters of Brick Force Wire Mesh Welding Machine:



Items Parameters
Mesh size 75mm,115mm,230mmm
Number of welding electrode 8 pcs
Wire diameter 1.6-3.0mm
Cross wire space 20-300mm
Main motor 4.0kw
Welding speed 60 times per min
Welding transformer 120KVA
Material low carbon wire or galvanized wire
Machine weight 3500kg
Machine dimension 4500*1200*1100mm
Production capacity 4 rolls one time
Floor space 10*3m
Control system PLC
Welding pressure By spring



Applications of Brick Force Wire Mesh Welding Machine:



The brick force mesh is widely used in construction ,hollow wall reinforcement ,increase the elasticity ,to prevent wall cracks ,is a good building auxiliary material. The Brick force mesh is used for the foundation ,wall ,ect. It has higher request for strength and stability of place and the local stress where it is reinforced in the brick and block.

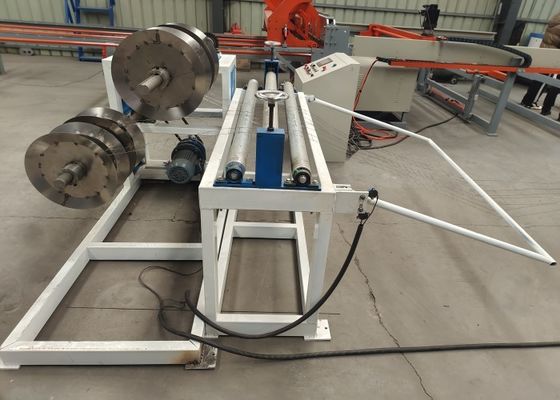

Photos of Brick Force Wire Mesh Welding Machine:



Mesh Size 75mm Wall Reinforcement Brick Force Mesh Welding Machine High Efficiency 0

Mesh Size 75mm Wall Reinforcement Brick Force Mesh Welding Machine High Efficiency 1

Mesh Size 75mm Wall Reinforcement Brick Force Mesh Welding Machine High Efficiency 2
