Coil Length 20m Size 115mm Brick Force Wire Mesh Welding Machine 4.0kw Power Saving

  • Coil Length 20m Size 115mm Brick Force Wire Mesh Welding Machine 4.0kw Power Saving
  • Coil Length 20m Size 115mm Brick Force Wire Mesh Welding Machine 4.0kw Power Saving
  • Coil Length 20m Size 115mm Brick Force Wire Mesh Welding Machine 4.0kw Power Saving
  • Coil Length 20m Size 115mm Brick Force Wire Mesh Welding Machine 4.0kw Power Saving
Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-ZDW-115
Minimum Order Quantity One set
Packaging Details 1.main machine and accessory equipment will be packed with sketch film paper; 2.control cabinet and spare parts will be packed with the wooden box; 3.finally all the machines will be fixed with hornwoods and steel oil wire rope,ensure them stable and not
Delivery Time 30 working days
Supply Ability 6 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Brick Force Mesh Welding Machine Wire Diameter 1.6-3.0mm
Mesh Size 75mm,115mm,230mm Length Of Coil Mesh 20m One Roll
Main Motor 4.0kw Longitudinal Wire Type Coil Wire Feeding
Cross Wire Type Pre-cut Control System By PLC
Machine Weight 3500kg Machine Dimension 4500*1000*1100mm
Power Consumption 3-5kw/h Floor Space 15*3m
High Light

Wire Mesh Welding Machine 4.0kw

,

Wire Mesh Welding Machine Power Saving

,

4.0kw wire mesh welder
Leave a Message
Product Description

Coil Mesh Length 20m Mesh Size 115mm Brick Force Mesh Welding Machine





Introduction of Brick Force Mesh Welding Machine:



The brick force mesh welding machine can make the brick force mesh for construction. The finished brick force mesh is in rolls and the machine can output four brick force mesh rolls at the same time. It is easy to operate and maintain. The brick force mesh is used in the brickwork reinforcement. It can be black brickforce or galvanized brickforce.



Features of Brick Force Mesh Welding Machine:



1. This machine adopts programmable logic controller (PLC) for control, and adjustment is simple, stable and reliable.
2. Using touch screen operation, simple, convenient and natural human-computer interaction.
3. Due to the precise processing of parts and strict quality control, after installation and commissioning, under normal working conditions, it can maintain trouble-free operation for a long time.
4. Particularly suitable for steel bar processing, such as housing construction, steel welded mesh, etc.
5. The machine adopts servo motor with high precision and good stability.

6. The machine adopts synchronous control technique.

7. The welding time and separate welding are controlled by PLC for system digital input panel or touch screen buttons.It can be more intelligent operations and rationalizing.

8. The advantages of the device are stable performance ,strong welding spot and accurate weldingaperture.

9. The machine adopts synchronous control technology of power electric,auto-sharding,automatic rolling,high yield,stable performance,strong welding spot,without welded tracks.



3. The components of the brick force mesh welding machine:


Main welding part       1unit
Mesh coiling part        1unit

Auxiliaries needed:
Wire straightening and cut machines 2 sets
Line wire straightening rollers 1set
Line wire payoffs          6sets
Electric cutting tool      1piece



Technical Parameters of Brick Force Mesh Welding Machine:



Model DX-ZDW-115
Welding wire diameter 1.6-3.0mm
Longitudinal wire size 75mm,115mm,230mm
Welding press Resistance welding
Welding speed 60 times per min
Cross wire size 50-300mm
Welding transformer 120KVA
Number of welding electrode 8 pcs
Material of welding electrode CuCrZr
Supply transformer capacity 80 kva
Voltage 220V 380V 415V 440V 50Hz or 60Hz
Welding type SCR Controlled
Labor cost One person
Mesh width Max.300mm
Finished product 4 rolls mesh



Applications of Brick Force Mesh Welding Machine:



It is usually applied to wall reinforcement,has the characteristics of seismic resistance.

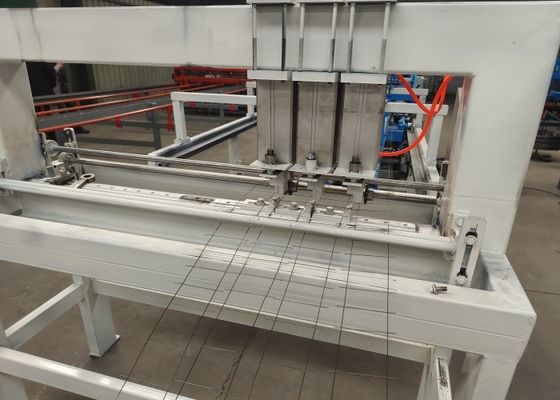

Photos of Brick Force Mesh Welding Machine:



Coil Length 20m Size 115mm Brick Force Wire Mesh Welding Machine 4.0kw Power Saving 0

Coil Length 20m Size 115mm Brick Force Wire Mesh Welding Machine 4.0kw Power Saving 1

Coil Length 20m Size 115mm Brick Force Wire Mesh Welding Machine 4.0kw Power Saving 2
