Railway Guard Fence Size 1.8*2.2m Fence Mesh Panel Welding Machine 200A
| Place of Origin | China |
|---|---|
| Brand Name | DIXUN |
| Certification | CE |
| Model Number | DX-GWCD-2500 |
| Minimum Order Quantity | One set |
| Packaging Details | Wooden pallet and the plastic package in the container.The bracket and auxiliary equipments will be with plastic package, spare parts in carton box. The main machine will be fixed in the container by steel wire rope to make it stable for Fence Mesh Making |
| Delivery Time | 30 working days |
| Supply Ability | 5-6 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Fence Mesh Panel Welding Machine | Wire Diameter | 3.0-6.0mm |
|---|---|---|---|
| Welding Speed | 50-75 Times/min | Color | As Requirement |
| Rated Capacity | 150KVA*6 | Mesh Width | 1200/1500/2000/2500mm |
| Control System | PLC+Touch Screen | Cross Wire Space | 50-200mm |
| Dimensions | 7000mm*3200mm*1700mm | Current | 200A |
| Longitudinal Wire Space | 50-250mm | Main Motor | 5.5kw |
| High Light | Fence Mesh Panel Welding Machine 200A,Railway Guard Fence Mesh Welding Machine,wire mesh welding machine 200A |
||
Product Description
Railway Guard Fence Size 1.8*2.2m Fence Mesh Panel Welding Machine
Introduction of Fence Mesh Panel Welding Machine:
1. Our fence mesh panel welding machine cent-control and welding time are composed of PLC program system . The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time, times welding .
2. Per-cut line wire by manual feeding, per-cut cross wires auto feeding with the high production rate,which keep the mesh surface is very flat. The hopper adopts the steeping motor control ,brake motor wheels and the cross wire will fallen automatically from the hopper.
3. Our transformers adopts big power at 125KVA every one,which can ensure the welding quality in good condition and adopt water cooling system. Our clients are very satisfied with our new development.
4. The greatest advantage is that you can adjust the distance of cross wire at random on the same one piece wire mesh sheet very easily, and only need to set the any space required on the touch screen.
5. The up and down of pulling hook is controlled by air cylinder. And the mesh pulling distance (cross wire space) is adjusted by PLC on touch screen.
6. Cast water-cooling welding transformer:160KVA*6PCS (48welding electrodes) ——every 8 welding electrodes need one welding transformer.
7. Wire feeding way: The longitudinal wires pre-straighten pre-cut. feed by manual. and the cross wires pre-straightened and pre-cut, automatic feeding by step motor. The welding degree is adjustable by touch screen by PLC.
Advantages of Fence Mesh Panel Welding Machine:
1. The upper and lower welding electrodes are water cooling types, increasing the service life of welding electrodes.
2. Upper copper wires connect the upper electrode and the lower electrode. Lower copper plates connect lower electrodes and welding transformers.
3. Cast water-cooling welding transformers.
4. Separate control technology.
Technical Parameters of Fence Mesh Panel Welding Machine:
| Item | DX-GWCD-2000 | DX-GWCD-2500 |
| Number of welding electrode | 40 pcs | 48 pcs |
| Wire diameter | 3.0-6.0mm / 4.0-8.0mm | 3.0-6.0mm / 4.0-8.0mm |
| Width of mesh | Max.2000mm | Max. 2500mm |
| Welding transformer capacity | 160kva*5 | 160kva*6 |
| Longitudinal wire type | pre-cut | pre-cut |
| Cross wire type | pre-cut | pre-cut |
| Longitudinal wire space | 50-250mm | 50-250mm |
| Cross wire space | 50-300mm | 50-300mm |
| Machine weight | 4500kg | 5500kg |
| Machine dimension | 7500*2700*1700mm | 7500*3200*1700mm |
| Main motor power | 5.5kw | 7.5kw |
| Machine color | as per require | as per require |
Applications of Fence Mesh Panel Welding Machine:
It can be used for the production and manufacture of highway guardrail, fence net, construction net, high-rise building net and other products.

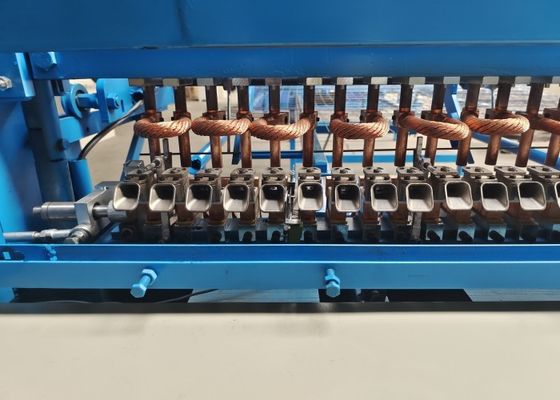

Photos of Fence Mesh Panel Welding Machine:
