Highway 12mm Mesh Width 3m Reinforcing Mesh Welding Machine Pneumatic

  • Highway 12mm Mesh Width 3m Reinforcing Mesh Welding Machine Pneumatic
  • Highway 12mm Mesh Width 3m Reinforcing Mesh Welding Machine Pneumatic
  • Highway 12mm Mesh Width 3m Reinforcing Mesh Welding Machine Pneumatic
  • Highway 12mm Mesh Width 3m Reinforcing Mesh Welding Machine Pneumatic
Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-GWC3000B
Minimum Order Quantity One set
Packaging Details 1.main machine and accessory equipment will be packed with skecth film paper; 2.control cabinet and spare parts will be packed with the wooden box; 3.finally all the machines will be fixed with hornwoods and steel oil wire rope,ensure them stable and not
Delivery Time 30 working days
Supply Ability 3 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Reinforcing Mesh Welding Machine Wire Diameter 6-12mm
Voltage 380V/220V/415V/440V Weight 10T
Warranty 2 Years Welding Speed 40-70 Times/min
Rated Capacity 150kva*12pcs Dimensions 9.5m*3.5m*2.2m
Mesh Width Max. 3m Mesh Length Max. 12m
Control System PLC Control Current 600-800A
Highlight

Highway Reinforcing Mesh Welding Machine

,

Reinforcing Mesh Welding Machine Pneumatic

,

Width 3m Reinforcing Mesh Welding Machine
Leave a Message
Product Description

Highway 12mm Mesh Width 3m Pneumatic Reinforcing Mesh Welding Machine





Introduction of Pneumatic Reinforcing Mesh Welding Machine:



1. This pneumatic reinforcing mesh welding machine adopts Japan Mitsubishi brand electronic synchronous control technique, welding time and sub-control welding are all composed of digital integrated circut, which has high control accuracy, stable performance, firm welding spots and without burned mark.

2. The pneumatic welding speed is fast and the operation is simple and easy to master.

3. The weft matched with the accurate weft cutting device and accurate positioning device, ensures the weft at the same length and without being out.

4. The mesh drawing system is controlled by servo motor which improved the precision of mesh opening size, meanwhile the line wire and the weft wire spacing are adjustable.



Features Details of Reinforcing Mesh Welding Machine:



1. Special pneumatic electrode

Pneumatic electrodes for welding speed Max. 75 times/min, and adjustable welding pressure for the flat welded panel.



2. Automatic wire feeding car

Line wire feeding car for Pre-straighten and pre-cut wires, working faster, and saving labor jobs.



3. Automatic pushing hopper

Cross-wire pushing hopper with European technology, working faster and continuously.



4. Automatic pulling mesh

Servo motor for mesh pulling working with Taiwan Gear rack, cross wire space more precise.



5. Welding transformer cooling

Cast water-cooling welding transformer, efficient cooling method, welding current can be adjusted by PLC.

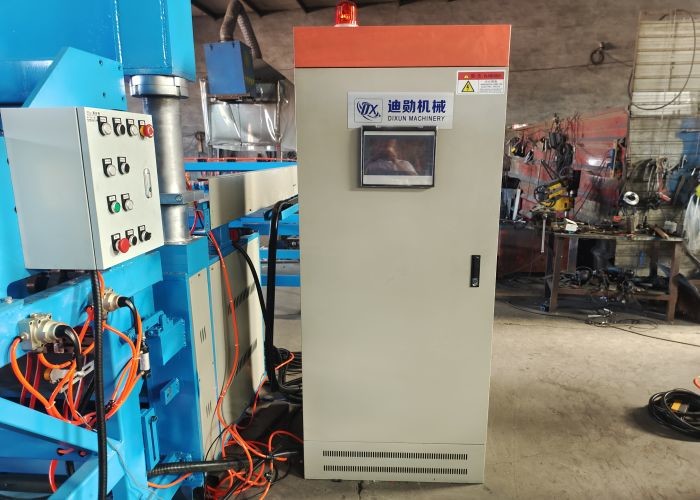

6. The electrical system

The electrical system from the international famous brand for precise control and smooth working.



Technical Parameters of Reinforcing Mesh Welding Machine:



Item     DX-2000CA     DX-2500CA     DX-3000CA     DX-3300CA
Number of Electrodes          20            24          30          32
Max.Mesh Width      2000mm       2500mm       3000mm        3300mm
Wire Diameter     6.0-12mm      6.0-12mm      6.0-12mm       6.0-12mm
Mesh Length       3-12m         3-12m        3-12m       3-12m
Cross Wire Space     100-300mm    100-300mm     100-300mm      100-300mm
Line Wire Space     100-300mm    100-300mm     100-300mm       100-300mm
Line Wire Feeding Way                           Pre-cut Wires. By the Line Wire Sending Car
Cross Wire Feeding Way                          Pre-cut Wires. By the Special Electrical Hopper
Welding Transformer 150KVA*10pcs 150KVA*12pcs 150KVA*15pcs 150KVA*16pcs
Welding Pressure                                                Air Cylinder
Welding Speed  50-75 times/min 50-75 times/min 45-60 times/min 45-60 times/min
Control System                                   PLC Control and Touch Screen



Applications of Reinforcing Mesh Welding Machine:



The finish mesh normally use as brc reinforcing wire mesh, fence mesh,mine protection, widely use on side of road for protect, highway, building, bridge, road etc.



Photos of Reinforcing Mesh Welding Machine:



Highway 12mm Mesh Width 3m Reinforcing Mesh Welding Machine Pneumatic 0

Highway 12mm Mesh Width 3m Reinforcing Mesh Welding Machine Pneumatic 1

Highway 12mm Mesh Width 3m Reinforcing Mesh Welding Machine Pneumatic 2

Highway 12mm Mesh Width 3m Reinforcing Mesh Welding Machine Pneumatic 3
