Building Fence Hole Size 50x200mm Wire Mesh Panel Welding Machine CNC
| Place of Origin | China |
|---|---|
| Brand Name | DIXUN |
| Certification | CE |
| Model Number | DX-2000B |
| Minimum Order Quantity | One set |
| Packaging Details | Main mechanical plastic packaging and steel wire fixed in the container,Accessories are packed in wooden cases. |
| Delivery Time | 30 working days |
| Supply Ability | 6 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Wire Mesh Welding Machine | Longitudinal Wire Type | Coil Wire Feeding |
|---|---|---|---|
| Cross Wire Type | Pre-straight And Pre-cut | Wire Diameter | 3-6mm |
| Longitudinal Wire Space | 50-200mm | Cross Wire Space | 50-200mm |
| Width Of Mesh | 2000mm | Length Of Mesh | 3m |
| Aperture Size | From 50*50mm To 200*200mm | Welding Speed | 50-80 Times Per Min |
| Pulling Mesh System | Servo Motor | Size Of Welding Electrode | 35*35*18mm |
| Welding Transformer | 160KVA*6PCS | Control System | PLC And Touch Screen |
| High Light | PLC Wire Mesh Panel Welding Machine,CNC Wire Mesh Panel Welding Machine,50x200mm Wire Mesh Welding Machine |
||
Product Description
Building Fence Hole Size 50*200mm CNC Wire Mesh Panel Welding Machine
Introduction of Wire Mesh Panel Welding Machine:
This production line of wire mesh panel welding machine is I am at home and abroad for many years with mesh welding technology experience, independent research and development of innovative devices. Transverse reinforcement raw material storage frame with funnel method, you can store a lot of raw materials. Easy handling, improve production efficiency and reduce labor costs.
Welding wire diameter range of the device is 3.0-6.0 mm, the mesh size is 50-200 mm, stepless adjustable. The maximum width of the welding wire mesh is 2500 mm (also according to customer requirements).
Features of Wire Mesh Panel Welding Machine:
1. The wire mesh panel welding machine is controlled by man-machine interface and plc programming control mode, with a high degree of automation.
2. The wire mesh panel welding machine can weld galvanized wire, cold drawn wire, black wire and other materials, with wide adaptability.
3. According to the capacitance of users, one-time or fractional welding can be adopted, with great flexibility.
4. The unit is designed as a separable structure to facilitate specification adjustment and maintenance.
5. The welding transformer adopts forced water cooling and is equipped with flow protection device, so that the unit can work reliably and continuously.
6. The welding pressure shall be uniform to ensure the quality of all welding joints.
7. The cross wire blanking device adopts stepping motor for automatic feeding to reduce labor intensity and improve efficiency.
8. The longitudinal dimension of the mesh can be changed through screen input to meet the needs of multi specification changes of the engineering mesh.
9. The cross wire blanking position is equipped with a magnetic material throwing mechanism, which has fast blanking speed and high production efficiency.
10. The electrode is equipped with a device in place to ensure reliable and accurate blanking of the transverse reinforcement.
Technical Parameters of Wire Mesh Panel Welding Machine:
| Model | DX-2000B |
| Main motor | 5.5kw |
| Motor of pulling mesh | 1.5kw |
| Cross wire space | 50-200mm |
| Power consumption | 6-7KW/H |
| Production capacity | 230 sheets per hour |
| Floor space | 20*4m |
| Welding speed | 50-80 times per min |
| Material of electrode | CuCrZr |
| Machine weight | 4800kg |
Applications of Wire Mesh Panel Welding Machine:
The wire mesh panel can be used in bulding fence, air fence, highway fence,raod fence, coal mine roof protection, tunnel, bridge construction, roadbed mesh, construction sites.

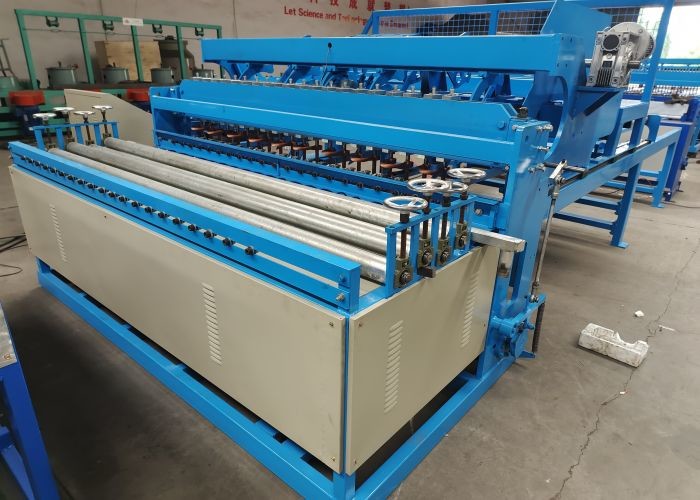

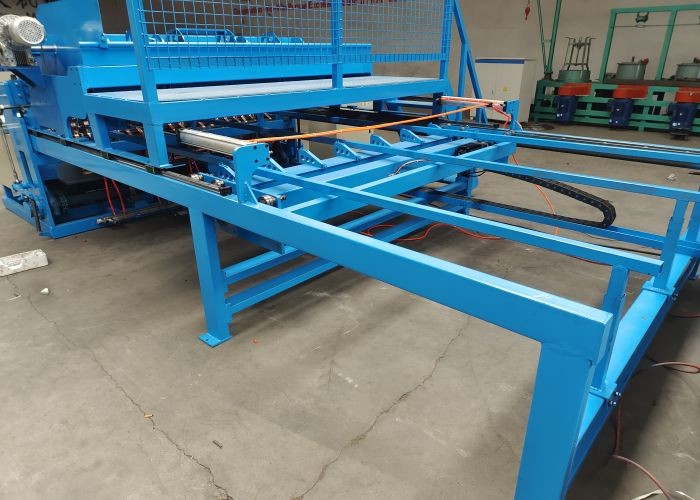

Photos of Wire Mesh Panel Welding Machine:
