Construction Wire Mesh Panel Welding Machine Aperture 50mm Width 2m

  • Construction Wire Mesh Panel Welding Machine Aperture 50mm Width 2m
  • Construction Wire Mesh Panel Welding Machine Aperture 50mm Width 2m
Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-2000B
Minimum Order Quantity One set
Packaging Details Main mechanical plastic packaging and steel wire fixed in the container,Accessories are packed in wooden cases.
Delivery Time 30 working days
Supply Ability 6 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Construction Wire Mesh Panel Welding Machine Longitudinal Wire Type Coil Wire Feeding
Cross Wire Type Pre-straight And Pre-cut Wire Diameter 3-6mm
Longitudinal Wire Space 50-200mm Cross Wire Space 50-200mm
Width Of Mesh 2000mm Length Of Mesh 3m
Welding Speed 50-80 Times Per Min Pulling Mesh System Servo Motor
Welding Transformer 160KVA*6PCS Control System PLC And Touch Screen
High Light

50mm Aperture Wire Mesh Welding Machine

,

2m Wire Mesh Panel Welding Machine

,

Servo Wire Mesh Welding Machine
Leave a Message
Product Description

Aperture 50mm Width 2m Construction Wire Mesh Panel Welding Machine





Introduction of Construction Wire Mesh Panel Welding Machine:



This production line of construction wire mesh panel welding machine is I am at home and abroad for many years with mesh welding technology experience, independent research and development of innovative devices. Transverse reinforcement raw material storage frame with funnel method, you can store a lot of raw materials. Easy handling, improve production efficiency and reduce labor costs.

Welding wire diameter range of the device is 3.0-6.0 mm, the mesh size is 50-200 mm, stepless adjustable. The maximum width of the welding wire mesh is 2500 mm (also according to customer requirements).

Features of Construction Wire Mesh Panel Welding Machine:

1. Spool wire payoff system.
This production line adopts the I-wheel paying off system, which can greatly save the mechanical floor area. The spool can wind the wire rod with a length of more than 1200 meters.
2. Braking system.
The pay off rack is equipped with an automatic brake system, which can prevent the wire from winding due to inertia when the machine stops.
3. Straightening wheel system.
The wire will pass through the straightening wheel system, which can make the wire more straight and smooth, and ensure the flatness and beauty of the welded wire mesh.
4. Cross wire feeding system.
The cross wire feeding system is independently designed and improved by our company, with fast and stable operation.

5. Welding electrode.

All welding electrodes are made of high chromium copper alloy, which is wear-resistant and high temperature resistant, extending the service life.

6. Cross wire positioning.
The horizontal wire positioning device adopts a small cylinder, which is convenient and sensitive to improve the welding speed.

7. Pull mesh motor.

The mesh pulling motor uses a servo motor. The position movement is very fast and accurate, ensuring that each grid size is accurate and beautiful.

8. Mesh cutting machine.
The construction wire mesh panel welding machine is equipped with a mesh cutting machine, which can set different cutting lengths on the screen to facilitate customers to produce different wire mesh sizes.
9. Control cabinet.
To set the mesh specification, you only need to input the number on the control cabinet. The mechanical operation is simple and easy to learn.
Technical Parameters of Construction Wire Mesh Panel Welding Machine:

Model DX-2500B
Wire diameter 3.0-6.0mm
Mesh width 2000mm
Aperture size from 50*50mm to 250*250mm
Mesh length 3m or 6m
Longitudinal wire type Coil wire
Cross wire type Pre-cut
Welding transformer 160KVA
Machine weight 4800kg
Machine dimension 9500*2800*1900mm
Pulling mesh system By servo motor
Cutting mesh system Automatic
Cross wire hopper load wires 1000kg
Max.Weld wire diameter 6+6mm
Machine color As per your required


Applications of Construction Wire Mesh Panel Welding Machine:



The wire mesh panel can be used in bulding fence, air fence, highway fence,raod fence, coal mine roof protection, tunnel, bridge construction, roadbed mesh, construction sites.



Photos of Construction Wire Mesh Panel Welding Machine:

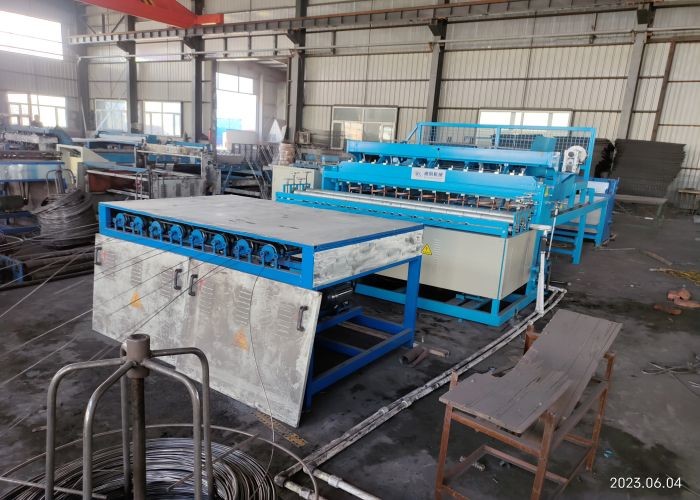

Construction Wire Mesh Panel Welding Machine Aperture 50mm Width 2m 0

Construction Wire Mesh Panel Welding Machine Aperture 50mm Width 2m 1

Construction Wire Mesh Panel Welding Machine Aperture 50mm Width 2m 2

Construction Wire Mesh Panel Welding Machine Aperture 50mm Width 2m 3
