Security Fence Wire Mesh Welding Machine 3-6mm Diameter

Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-2000B
Minimum Order Quantity One set
Packaging Details the main mahcine is nude fixed in the container by the cable and the spare part is in wooden case.
Delivery Time 30 working days
Supply Ability 10 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Wire Mesh Welding Production Line After-sales Service Provided Engineers Available To Service Machinery Overseas
Wire Diameter 3-6mm Weight 6500KG
Voltage 220V/380V/415V/440V Welding Speed 75rows/min
Type Fully Automatic Mesh Width 0.5m-2.0m
Rated Duty Cycle 50% Rated Capacity 4x125 KVA(customized)
Usage Welding Wire Mesh Fence Cross Wire Space 50mm-300mm
Highlight

6mm dia Wire Mesh Welding Machine

,

Security Fence Wire Mesh Welding Machine

,

3mm dia Wire Mesh Welding Machine

Leave a Message
Product Description

Vertical Wire Coil Wire 3-6mm Security Fence Wire Mesh Welding Machine





Introduction of Wire Mesh Welding Machine:



1. The wire mesh welding machine adopts electrical & electronic synchronous control technique, both separate-phase welding and welding time composed of digital and integrated electric circuit, high precision, stable performance, solid welding joint and no burn marks.
2. Cross wires are pre-straightened and pre-cut, fed from hopper. The hopper is driven by stepper motor, accurately auto-feeding wire.
3. The vertical wires are fed from coil wire. The cross wire is pre-cut. Need manual to put cross wire hopper.
4. Mesh pulling system adopts elastic tension link and opening positioning equipment, the opening is easy to regulate accurately and can be adjusted freely within a certain range.
5. The finished products can be in panel mesh.
6. The welding speed is fast and it is easy to learn and operate. Only two operators are enough.

Advantages of Wire Mesh Welding Machine:

1. The mesh size is directly set on the touch screen, which is convenient and simple.
2. Vibration device is added to the cross wire feeding system to prevent wire winding.
3. The vertical wire automatic wire feeding and the cross wire are pre-straightening and cutting.
4. Cross wire adjustment on screen, line wire adjustment need move the welding electrode.
5. The mesh panel length can be set by the control panel.
6. We can easily adjust the welding current when we need to weld different wire diameters.
7. The finished product panel mesh is smooth and the error of opposite angle line is small.
8. We can set the output and stop the machine automatically after the mesh production finished.



Technical Parameters of Wire Mesh Welding Machine:



Model
DX-2000B
DX-2500B
DX-3000B
Mesh width
Max.2000 mm
Max.2500 mm
Max.3000 mm
Mesh hole size
100 mm
150 mm
200 mm
300 mm
100 mm
150 mm
200 mm
300 mm
100 mm
150 mm
200 mm
300 mm
Wire diameter
3.0-6.0 mm
3.0-6.0 mm
3.0-6.0 mm
Welding speed
40-80 Times/min
40-80 Times/min
40-80 Times/min
Transformer
125KVA*3
125KVA*4
125KVA*4
125KVA*5
125KVA*5
125KVA*6
Dimensions
8.5 X 2.5 X 1.65 m
9.5 X 3.0 X 1.65 m
12 X 3.5 X 1.65 m
Weight
5500 KG
6500 KG
7500 KG



Applications of Wire Mesh Welding Machine:



Wire Mesh is used in coal mine roof protection, tunnel, bridge construction, roadbed mesh, construction site construction materials.

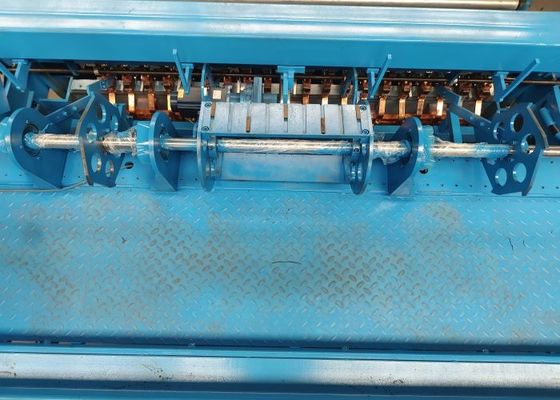

Photos of Wire Mesh Welding Machine:



Security Fence Wire Mesh Welding Machine 3-6mm Diameter 0

Security Fence Wire Mesh Welding Machine 3-6mm Diameter 1

Security Fence Wire Mesh Welding Machine 3-6mm Diameter 2

Security Fence Wire Mesh Welding Machine 3-6mm Diameter 3
