Railway Protection 50*200mm Automatic Welded Wire Mesh Machine For 3d Fence
| Place of Origin | China |
|---|---|
| Brand Name | DIXUN |
| Certification | CE |
| Model Number | DX-GWCD-2500 |
| Minimum Order Quantity | One set |
| Packaging Details | Nude packing.Need one 40 feet container to ship. |
| Delivery Time | 30 working days |
| Supply Ability | 5 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Fence Mesh Welding Machine | Welding Method | By Resistance Welding |
|---|---|---|---|
| Welding Speed | 75 Times Per Min | Main Motor | 5.5kw |
| Width Of Mesh | 2500mm | Mesh Size | 50*200mm |
| Length Of Mesh | 1-4m | Number Of Electrode | 48pcs |
| Welding Transformer | 160KVA*6PCS | Machine Weight | 4500kg |
| Machine Dimension | 7500*3300*1700mm | Line Wire Feeding | By Line Wire Feeding Car |
| Cross Wire Feeding | By Stepping Motor | Control System | By PLC |
| High Light | railway automatic welded wire mesh machine,50*200mm automatic welded wire mesh machine,5.5kw automatic wire mesh welding machine |
||
Product Description
Railway Protection Mesh Size 50*200mm 3d Fence Mesh Welding Machine
Introduction of Fence Mesh Welding Machine:
Weft wire straightening cut off automatic feed wire by stepping motor, automatic feeding, Warp straightening cut artificial placement, warp with automatic push wire, save time, improve efficiency, pull the net using servo motor and reducer, runway using imported linear guide rail combined with rack, can make the mesh more, diagonal error control within ±2mm. The machine is composed of 3 parts, which are divided into the main machine, the pulling track and the automatic pushing mechanism. Control using PLC programming, touch screen, one-click operation, more intelligent, rationalization.
Feature of Fence Mesh Welding Machine:
Fence mesh welding machine is an advanced mechatronic welding equipment. The biggest advantage is that the diameter of the wire can be adjusted, the mesh size of the weft wire input touch screen can reach the hole distance you achieve, in the welding mesh if you want to make the welding hole distance change, you put the hole distance input computer can reach the hole distance you want, the hole distance can be adjusted at will.
Fence mesh welding machine welded mesh flat, diagonal error is small.
1. The maximum width of the mesh welded by the fence mesh welding machine is 2.5 meters
2. Welding wire diameter is 2.5mm-6mm
3. Welding transformer air self-cooling
4. The welding form is once pressed, divided control welding, diameter wire tray wire feed, or straight bar feed
5. Fence mesh welding machine adopts cycle fine-tuning during welding to reduce welding pollution
6. Welding pressure is adjustable
7. Wire diameter size can be adjusted
8. Weft wire hole distance input computer hole distance automatically change
9. Fence mesh is widely used in railway, highway, bridge high-rise building, stadium, stadium, airport, workshop isolation and other mesh welding, can be customized according to customer needs.
Advantages of Fence mesh welding machine:
1. The line wire is fed in coils.This reduce the material feeding frequency.
2. The cross wire is precut and falls automatically in the wire hopper.
3. Adopt new energy-saving welding transformer. Fully enclosed, pure copper core. Ensure that each welding point is firmly welded, not easy to enter welding slag, and has a long service life.
4. The machine adopts servo motor to push the mesh finished welding.The pushing speed is even to ensure the diagonal symmetry of the mesh panel.
5. The control cabinet is equipped with visual touch screen. Easy for operation.
Technical Parameters of Fence Mesh Welding Machine:
| Model | DX-GWCD-2500 |
| Wire diameter | 2.5-6.0mm |
| Welding speed | 75 times per min |
| Line wire space | 50-200mm |
| Cross wire space | 50-200mm |
| Length of mesh | 1-4m |
| Line wire type | Pre-cut wire |
| Cross wire type | Pre-cut wire |
| Pulling mesh | By servo motor |
| Loading capacity of cross wire hopper | 100kg |
Applications of Fence Mesh Welding Machine:
Fence refers to the industrial "protective guardrail", it is mainly used in residential, highway, commercial area and other places, it can protect and protect personal safety and equipment and facilities.
Fence is widely used in municipal engineering, roads, factories, development zones, stadiums, garden squares and other places of security protection and decoration. Its product shape is beautiful, and it is firmly installed, corrosion resistance is good, is a good choice to beautify the urban environment.

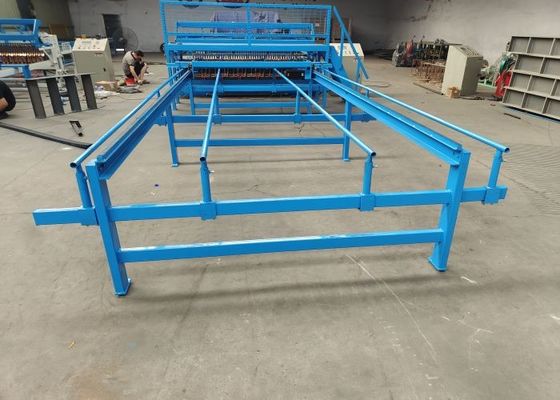

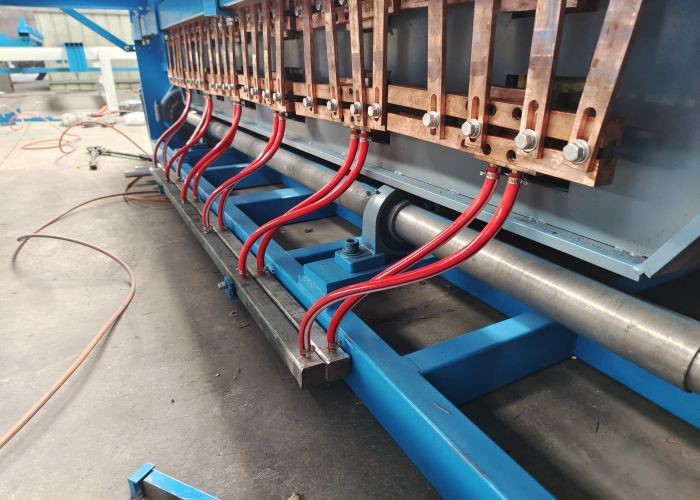

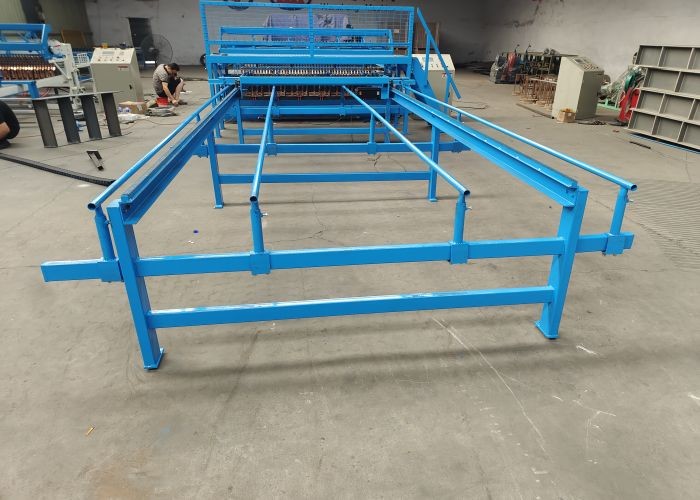

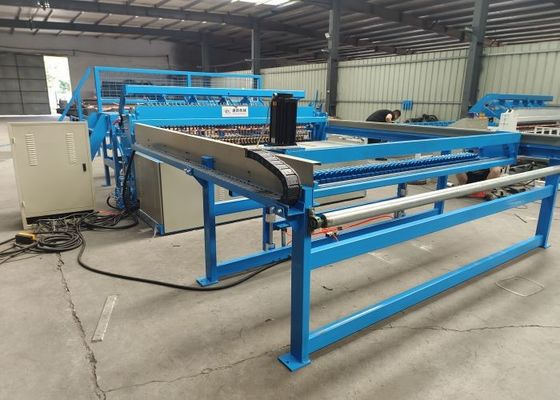

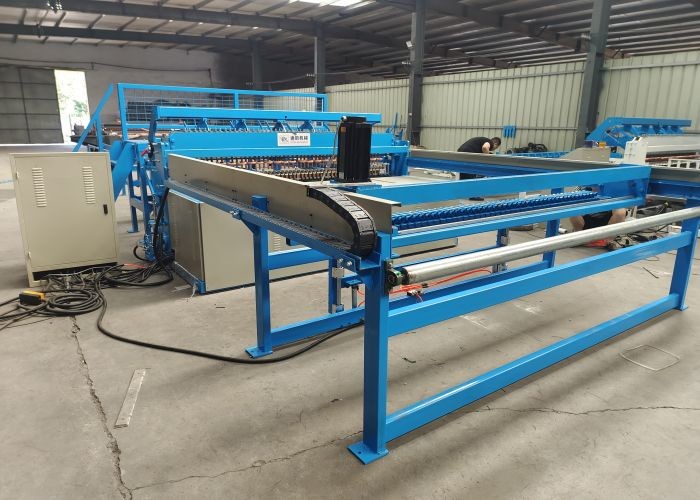

Photos of Fence Mesh Welding Machine:
