3-6mm Fence Guard Fence Mesh Welding Machine Cross Wire Space 50-200mm Plc

Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-GWCD-2000
Minimum Order Quantity One set
Packaging Details Nude packing.Need one 40 feet container.
Delivery Time 30 working days
Supply Ability 6 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Wire Diameter 3-6mm Voltage 380V/50HZ/Customized
Welding Speed 50-75 Times/min Weight 3.5T
Usage Product Fence For Protect Highway And Railway Rated Capacity 150KVA*6
Mesh Width 1200/1500/2000/2500mm Rated Duty Cycle Adjusted By Transformer
Control System PLC+Touch Screen Cross Wire Space 50-200mm
Current 200A Length Of Mesh 1-4m
High Light

highway fence mesh welding machine


3mm fence mesh welding machine


automatic wire mesh welding machine plc

Leave a Message
Product Description

Fence Guard Cross Wire Space 50-200mm PLC Fence Mesh Welding Machine



Introduction of Fence Mesh Welding Machine:


1. The fence mesh welding machine adopts synchronous control technique. The center-control and welding time are composed of PLC program system. The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time, times welding.

2. Welding by electromotor; the hopper adopts the step motor; brake motor wheels; pulling the wire mesh is controlled by the servo motor.

3. 160KVA Transformer with water cooling system.

4. The line wire and the weft wire are pre-straight and pre-cut. The greatest advantage is that you can adjust the distance of weft wire at random on the same one piece wire mesh sheet.

5. Mesh pulling system is controlled by servo-motor that adopts elastic tension and opening positioning mesh, which improves the precision of mesh opening size.

6. Wire feeding way:The line wires and cross wires should be pre-straightened and pre-cut, then be put by manual work

7. Material:Suitable for low carbon iron wire, cold drawn wire,or galvanized (cold galvanized, hot galvanized) processing.


Features of Fence Mesh Welding Machine:


1. Control system Mitsubishi or Panasonic PLC automatic control system, combined with Weinview touch screen, can directly input and display equipment operating parameters, intelligent and easy to operate.

2. Weft wire hopper: the stepper motor drives the disk-type device to drop wires automatically, and the hopper has a large capacity of storing wires max up to 1.5 tons. When there is no cross wire in the hopper, the equipment will stop running automatically.

3. Sending longitudinal wire feeding mechanism: servo motor is equipped with planetary reducer to drive pneumatic compression wire feeding device to send wire to the welding position. The equipment is automatically welding.

4. Mesh pulling mechanism: servo motor supporting planetary reducer drives pneumatic clamping mesh pulling device to ensure the stability of the system and the standard size of the welded mesh.Automatic reciprocating mesh drawing can realize the production of lengthening size mesh.

5. Water-cooled welding electrodes and a new type of special water-cooling transformer welding mesh with epoxy resin are adopted, which is smaller in size and higher in safety and reliability than traditional transformers.

6. Low-voltage electrical appliances are made of Schneider, well-known brands to ensure the efficient and stable operation of the equipment.

7. The machine will stop working automatically if there is no cross wires in hopper device.

8. When there is malfunction on the machine, the PLC will alarm, which is convenient to adjust the machine.

9. The cross wire space adjustment adopts PLC micro-computer control, set on the touch screen.Very easy and convenient to operate.

10. The mesh pulling system is automatically calculated in cycle.No need manual setting. The mesh pulling car can be back to origin automatically after finishing the pulling mesh.


Technical Parameters of Fence Mesh Welding Machine:


Wire diameter 3--6mm Line wire form pre-cut wire
Weft wire space



Weft wire form pre-cut wire
Line wire space



Rated voltage As your required
Mesh width Max 2400mm Water cooling welding transformer 160KVA X 3PCS
Welding speed 40--65 times/min Overall dimension 7.5X 3.2X 2.1M
Welding electrodes 12 PCS Max. mesh length 6m
Total weight 4.5 tons Main motor 5.5KW


Applications of Fence Mesh Welding Machine:


Fence is mainly used in municipal greenfield. flowerbed. workpalce greenfield road, airport, harbor greenfield etc. The products have beautiful shape, various colors, not only have the effect of defending, but also beautifying.

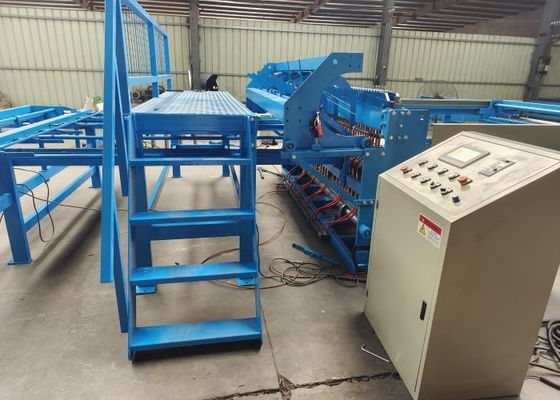

Photos of Fence Mesh Welding Machine:


3-6mm Fence Guard Fence Mesh Welding Machine Cross Wire Space 50-200mm Plc 0

3-6mm Fence Guard Fence Mesh Welding Machine Cross Wire Space 50-200mm Plc 1

3-6mm Fence Guard Fence Mesh Welding Machine Cross Wire Space 50-200mm Plc 2
