Hole Size 150x150mm Wire Mesh Welding Machine Converter Speed

Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-2500B
Minimum Order Quantity One set
Packaging Details Nude packing. Need one 20 feet container.
Delivery Time 30 working days
Supply Ability 10 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Wire Mesh Welding Production Line Wire Diameter 3-6mm
Color Can Be Customized Voltage 220V/380V/415V/440V
Type Fully Automatic Rated Capacity 6*125KVA
Condition New Cross Wire Space 50mm-300mm
Dimensions 14mX3.2mX2.3m Width Of Mesh 2500mm
Longitudinal Wire Space 100-200mm Longitudinal Wire Type Coil Wire
Cross Wire Type Pre-cut Motor 5.5kw
High Light

150x150mm hole wire mesh welding machine


converter speed wire mesh welding machine


150x150mm hole welded wire mesh machine

Leave a Message
Product Description

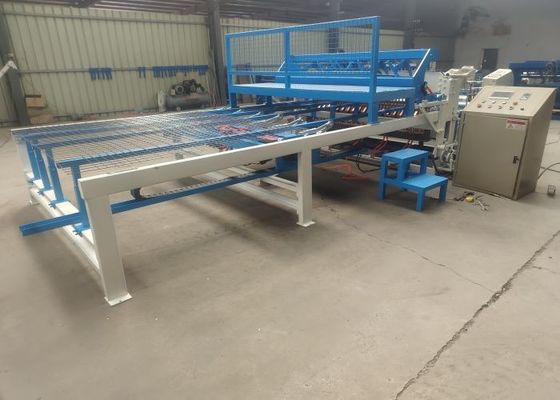

Hole Size 150*150mm Converter Speed Wire Mesh Welding Production Line



Introduction of Wire Mesh Welding Production Line:


Wire mesh welding production line also called roll mesh welding production line, welded wire mesh roll machine, used to make road mesh, reinforcing mesh, construction mesh.


Machine Main Function and Advantages of Wire Mesh Welding Production Line:

1. Our wire mesh welding production line,the longitudinal wire feeding from coil automatically,which is more convenient and save labor;
2.The welding transformers is our new model and installed with water cooling system,which prolong the service life;
3. Our welding pressure adopts mechanical spring,easy to adjust,which save the cost and maintenance cost is lower than other pneumatic model;
4. The cross wires are fed from pre-cut,which adopts step motor driven from the special hopper one by one;
5. Every welding transformer is controlled by single microcomputer control ,cent-control welding one time pressure ,which is more intelligentialized.The controller will connect with the touch screen , and we can set the welding current and welding time on the touch screen ,which is very convenient .
6. The cross wire testing devices are equipped . When the cross wire can't suitably fall down or no cross wire, the machine will stop automatically,greatly avoid the occurrence of unqualified meshes.


Technical Parameters of Wire Mesh Welding Production Line:


No. Item Specification
1 Welding Wire Diameter Range 3.0-6.0(mm)
2 Cross Wire Space 100-300mm(adjustable)
3 Line Wire Space 100-300mm(adjustable)
4 Mesh Length 50m
5 Max Mesh Width 2500mm adjustable
6 Number of Electrodes 24 adjustable
7 Welding Speed 0-80times/min
8 Rated Voltage 380 ±5% 50HZ Three phase or customized
9 Rated Power 160KVA*4(Water cooling system)
10 Main Motor 4.0KW (Electromagnetic Brake Motor)
11 Welding Time 10ms-100ms
12 Control Way PLC+Touch Screen
13 Welding Way By Control Silicon Control Electric Resistance Weld
14 Pressure Mode Adjustable Spring Pressure
15 Weight About 3.5T
16 Overall Dimension 5100*3200*1700mm
17 External Power Supply 380V±5% 50Hz,Three Phase,<=100m from the control cabinet or customized
18 Single-phase Load Area of Power Wire (Copper Wire)120mm2
19 External Power Transformer by Three Times Welding 150KVA
20 Cooling System Clean,neutral to slightly alkaline(ph:7~8)water,flow rate 5.12m3/h,import temperature 25~30ºC.


Applications of Wire Mesh Welding Production Line:
