Servo Motor Pull Welded Wire Mesh Machine Plc For Diameter 3mm
| Place of Origin | China |
|---|---|
| Brand Name | DIXUN |
| Certification | CE |
| Model Number | DX-2500B |
| Minimum Order Quantity | One set |
| Packaging Details | Nude packing.need one 20 feet container. |
| Delivery Time | 30 working days |
| Supply Ability | 10 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Fence Mesh Welding Machine | Wire Diameter | 3-6mm |
|---|---|---|---|
| Welding Speed | 50-75 Times/min | Rated Capacity | 150KVA*6 |
| Mesh Width | Max 2500mm | Control System | PLC+Touch Screen |
| Cross Wire Space | 50-200mm | Current | 200A |
| Longitudinal Wire Space | 50-200mm | Main Motor | 5.5kw |
| Machine Weight | 4500kg | Production Capacity | 1.5 Tons Per Hour |
| High Light | servo motor welded wire mesh machine,welded wire mesh machine plc,diameter 3mm fence mesh welding machine |
||
Product Description
Servo Motor Pull Mesh Wire Diameter 3mm PLC Fence Mesh Welding Machine
Introduction of Fence Mesh Welding Machine:
Fence mesh welding machine is our company according to the market trend of ordinary welding machine research and development improvement, the main welding machine and roll mesh system are operated separately.
The advantage of this technology is that the welding machine does not need to stop while roll mesh system unloading the wire mesh. This method greatly improves the production efficiency of the wire mesh and increases the competitiveness of the products.
Features of Fence Mesh Welding Machine:
Welding electrode
The welding electrode adopts pick chromium copper alloy to ensure the service life of the machine.
Wire straightening system
The wire straightening system can make the wire mesh smoother and more beautiful after two times straightening by roller and straightening wheel.
Pull mesh motor
The pull mesh system adopts servo motor equipped with special customized gear reducer to make the wire drawing system run more accurately and smoothly.
Roll mesh system
The automatic roll mesh system can start and stop automatically according to the tightness of the wire mesh, and the machine will automatically remove the coil and automatically return to position.
Technical Parameters of Fence Mesh Welding Machine:
| Item | DX-1200A | DX-1600A | DX-2400B | DX-2500B |
| Number of Electrodes | 24 | 32 | 40 | 48 |
| Max.Mesh Width | 1200mm | 1600mm | 2400mm | 2500mm |
| Wire Diameter | 2.5-6.0mm | 2.5-6.0mm | 3.0-6.0mm | 3.0-6.0mm |
| Cross Wire Space | 50-250mm | 50-250mm | 50-250mm | 50-250mm |
| Line Wire Space | 50-250mm | 50-250mm | 50-250mm | 50-250mm |
| Finished Products Way | Roll Mesh/Both Roll Mesh and Plate Mesh | |||
| Pulling Mesh Way | Servo Motor | |||
| Electric Capacity | 125KVA*3 | 125KVA*4 | 125KVA*5 | 125KVA*6 |
| Welding Speed | 50-80t/min | 50-80t/min | 50-80t/min | 50-80t/min |
| Control System | PLC & Touch Screen | |||
Applicatiosn of Fence Mesh Welding Machine:
The fence mesh is widely used in grassland protection, road construction, roof construction.

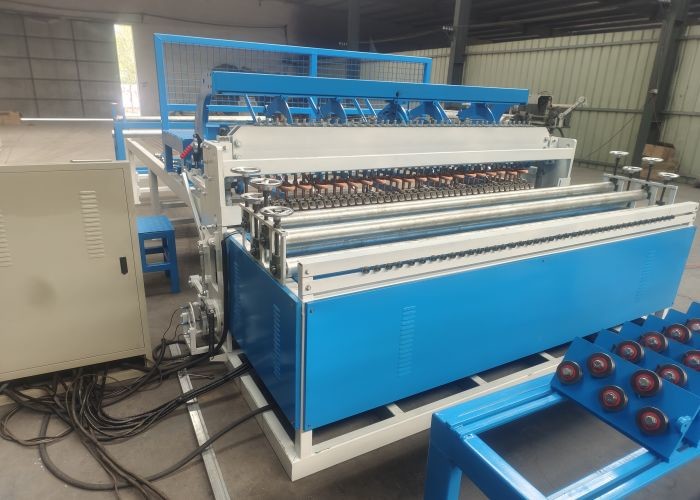

Photos of Fence Mesh Welding Machine:
