Bridge Construction Hole Size 100mm Reinforced Rebar Mesh Welding Machine
| Place of Origin | China |
|---|---|
| Brand Name | DIXUN |
| Certification | CE |
| Model Number | DX-GWC-3000C |
| Minimum Order Quantity | One set |
| Packaging Details | The reinforced rebar mesh welding machine is nude packing. Need one 40 feet container to ship. |
| Delivery Time | 30 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 6 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Reinforced Rebar Mesh Welding Machine | Wire Diameter | 5-12mm |
|---|---|---|---|
| Voltage | 380V/220V/415V/440V | Warranty | 2 Years |
| Welding Speed | 40--65 Times Per Min | Type | Automatic |
| Mesh Width | Max. 3m | Mesh Length | 3-12 Meter |
| Control System | PLC Control | Certification | ISO9001-2008;CE |
| Condition | New | Longitudinal Wire Space | 100-300mm |
| Cross Wire Space | 100-300mm | Welding Transformer | 160KVA X 15pcs |
| High Light | Bridge Steel Bar Mesh Welding Machine,Construction Steel Bar Mesh Welding Machine,100mm Reinforcement Wire Mesh Welding Machine |
||
Product Description
Bridge Construction Hole Size 100mm Reinforced Rebar Mesh Welding Machine
Introduction of Reinforced Rebar Mesh Welding Machine:
The reinforced rebar mesh welding machine adopts transverse reinforcement raw material storage frame with funnel method, you can store a lot of raw materials. Easy handling, improve production efficiency and reduce labor costs. Reinforced length delivery process automatic control. Equipment to strengthen the damping process, effectively reducing noise. Welding wire diameter range of the device is 6-12 mm, the mesh size is 100-300 mm, stepless adjustable. The maximum width of the welding wire mesh is 3000 mm (also according to customer requirements). There is an alarm device on the welding host that can improve the safety level and reduce the failure rate. The greatest degree of assurance of the equipment running smoothly.
Welding system uses servo motor control, work accurately and use process does not produce sludge, has little effect on the environment. All key components are well-known brands, the quality of the procurement system in full accordance with ISO9001 standards. And comply with EU safety certification standards.
System equipment can and desktop computers or notebook computers or workstations are connected. Easy operation. The greatest degree of raw material savings for customers. Improve production efficiency,intelligent management. Welding part can easily to replace, which greatly improves the service life of machinery, maximum reduce the cost.
Features of Reinforced Rebar Mesh Welding Machine:
1. Cast water-cooling transformer and lower welding electrode base.
2. Pure welding electrodes, 30*30*50mm (6-12mm).
3. PLC control of cross wire space adjustment and welding current adjustment.
4. Pre-straightened & pre-cut wires.
5. Touch screen interface.
6. Wire pre-load system.
Detailed Introduction of Reinforced Rebar Mesh Welding Machine:

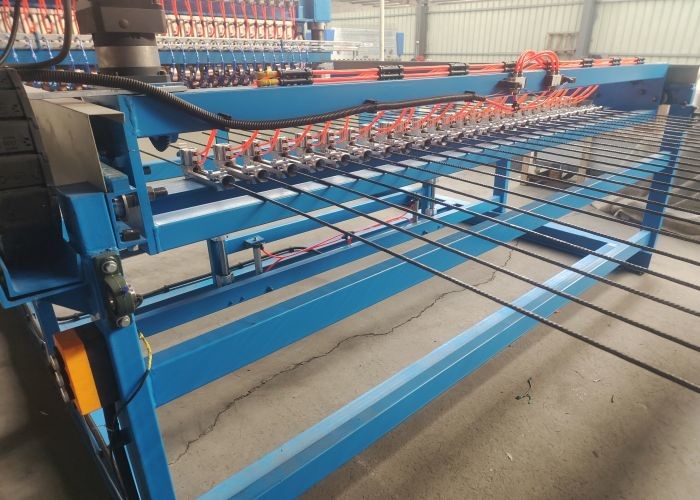

1. Longitudinal wire feeding system.
Wire feeding system can send the steel bars to the welding machine automatically.When the main machine is being welded, the material of the next reinforcing mesh can be placed at the same time.Improved productivity.
2. Cross wire conveyor system.
The cross wire conveyor system adopts the invention patent, It can make the cross wire fall in the specified position relatively parallel.
3. Cross wire feeder.
The reinforced rebar mesh welding machine is equipped with a cross wire feeder, which can carry 2000 kg of wire at the same time, saving time and increasing production efficiency.
4. Welding cylinder.
The welding cylinder is specially customized, with fast and stable action. The most important thing is to prolong the service life to a great extent.
5. Welding electrode.
1. The welding electrode is connected to the transformer by single wire connection. The conductive effect is better, the electric energy is used more fully, and the electric energy and cost are saved.
2. All connecting wires are solid copper plates.
3. Welding electrodes are made of pure red copper and chromised bronze ,durable,can bu used at least 3-6 months.

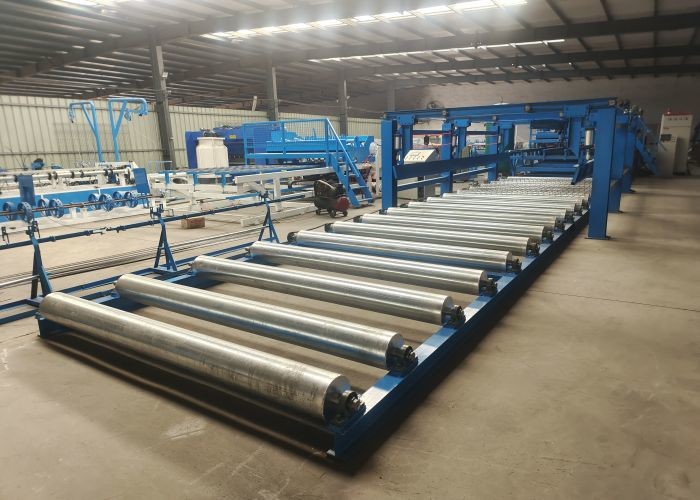

6. Mesh pulling system
1. The reinforcing mesh conveying system is divided into 6meter and 12meter.
2. It contains a roller conveyor,which is easy to pack reinforcing mesh and convenient to load truck.
3. We can design the conveying system length according to the customer's requirements.
4. It is controlled by servo motor (2kw)&planetary reducer and air cylinders,advanced
Technical Parameters of Reinforced Rebar Mesh Welding Machine:
| Model | DX-GWC-2500C | DX-GWC-3000C |
| Length of mesh | 3-12m | 3-12m |
| Production capacity | 30-35 tons per day (10 hours) | 30-40 tons per day(10 hours) |
| Longitudinal wire type | Pre-cut | Pre-cut |
| Cross wire type | Pre-cut | Pre-cut |
| Number of welding electrode | 24 pcs | 30 pcs |
| Welding transformer | 160kva x 12 pcs | 160kva x 15 pcs |
| Machine weight | 13.5 tons | 14.8 tons |
| Machine dimension | 29 x 3.5 x 2.1m | 29 x 4.2 x 2.1m |
| Floor space | 42 x 10m | 42 x 12m |
| Pulling mesh system | By servo motor | By servo motor |
| Falling mesh system | Automatic | Automatic |
Applications of Reinforced Rebar Mesh Welding Machine:
Reinforced rebar panel mesh welding machine, also called BRC mesh welding machine, concrete mesh welding machine, used to make steel rebar mesh, bridge construction mesh,road mesh, building construction mesh etc.

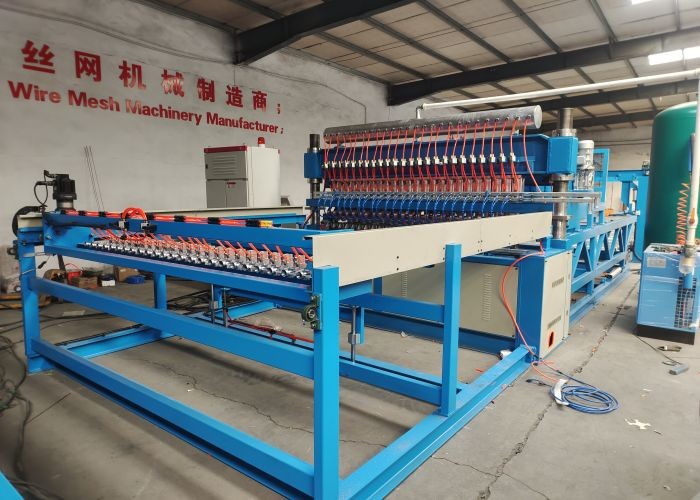

Photos of Reinforced Rebar Mesh Welding Machine:
