Mesh Width 3m Mesh Width 6m Highway PLC Reinforcing Mesh Welding Machine

  • Mesh Width 3m Mesh Width 6m Highway PLC Reinforcing Mesh Welding Machine
  • Mesh Width 3m Mesh Width 6m Highway PLC Reinforcing Mesh Welding Machine
  • Mesh Width 3m Mesh Width 6m Highway PLC Reinforcing Mesh Welding Machine
  • Mesh Width 3m Mesh Width 6m Highway PLC Reinforcing Mesh Welding Machine
Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-GWC-3000C
Minimum Order Quantity One set
Packaging Details The reinforced mesh welding machine is nude packing. Need one 40 feet container to ship.
Delivery Time 30 working days
Payment Terms L/C, T/T
Supply Ability 6 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Reinforced Mesh Welding Machine Wire Diameter 5-12mm
Voltage 380V/220V/415V/440V Warranty 2 Years
Welding Speed 40--65 Times Per Min Type Automatic
Mesh Width Max. 3m Mesh Length 3-12 Meter
Control System PLC Control Certification ISO9001-2008;CE
Condition New Longitudinal Wire Space 100-300mm
High Light

Width 3m reinforcing mesh welding machine

,

Highway reinforcing mesh welding machine

,

Width 6m Reinforcing Mesh Welder
Leave a Message
Product Description

Mesh Width 3m Mesh Width 6m Highway PLC Reinforcing Mesh Welding Machine


Introduction of Reinforced Mesh Welding Machine:

Welding system uses servo motor control, work accurately and use process does not produce sludge, has little effect on the environment. All key components are well-known brands, the quality of the procurement system in full accordance with ISO9001 standards. And comply with EU safety certification standards.

System equipment can and desktop computers or notebook computers or workstations are connected. Easy operation. The greatest degree of raw material savings for customers. Improve production efficiency,intelligent management. Welding part can easily to replace, which greatly improves the service life of machinery, maximum reduce the cost.


Detailed Introduction of Reinforced Mesh Welding Machine:


1. Longitudinal wire feeding system.
Wire feeding system can send the steel bars to the welding machine automatically.When the main machine is being welded, the material of the next reinforcing mesh can be placed at the same time.Improved productivity.

2. Cross wire conveyor system.
The cross wire conveyor system adopts the invention patent, It can make the cross wire fall in the specified position relatively parallel.

3. Cross wire feeder.
The reinforced mesh welding machine is equipped with a cross wire feeder, which can carry 2000 kg of wire at the same time, saving time and increasing production efficiency.

4. Welding cylinder.
The welding cylinder is specially customized, with fast and stable action. The most important thing is to prolong the service life to a great extent.

5. Welding electrode.
1. The welding electrode is connected to the transformer by single wire connection. The conductive effect is better, the electric energy is used more fully, and the electric energy and cost are saved.
2. All connecting wires are solid copper plates.
3. Welding electrodes are made of pure red copper and chromised bronze ,durable,can bu used at least 3-6 months.

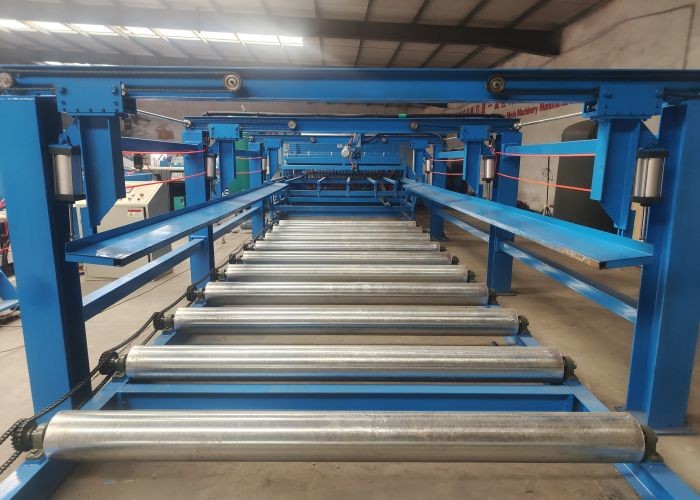

6. Mesh pulling system
1. The reinforcing mesh conveying system is divided into 6meter and 12meter.
2. It contains a roller conveyor,which is easy to pack reinforcing mesh and convenient to load truck.
3. We can design the conveying system length according to the customer's requirements.
4. It is controlled by servo motor (2kw)&planetary reducer and air cylinders,advanced

Technical Parameters of Reinforced Mesh Welding Machine:


Wire diameter 6--12mm Longitudinal wire form Pre-cut wire
Weft wire space

100--300mm

(adjustable)

 Weft wire form pre-cut wire
Longitudinal wire space

100--250mm

(adjustable)

 Rated voltage Customized
Mesh width Max 2500mm Welding Transformer 160KVA X 15PCS
Welding speed 50-- 70 times/min Machine dimension 26X 3.7X 2.2m(L*W*H)
Welding electrodes 30 PCS Max. mesh length 6m or 12m
Total weight 13.5T Power transformer 200KVA
Production Capacity 25-30 tons at 10 hours Manpower 3 workers
Workshop space 40mx10m(L*W) Cable 240mm2*3pcs(Aluminium cable)
Electrical brake 630A Power consumption 20KW/Hour
Distance from power transformer to machine 150m Tool kit One



Applications of Reinforced Mesh Welding Machine:

Reinforced rebar panel mesh welding machine, also called BRC mesh welding machine, concrete mesh welding machine, used to make steel rebar mesh, bridge construction mesh,road mesh, building construction mesh etc.

Photos of Reinforced Mesh Welding Machine:

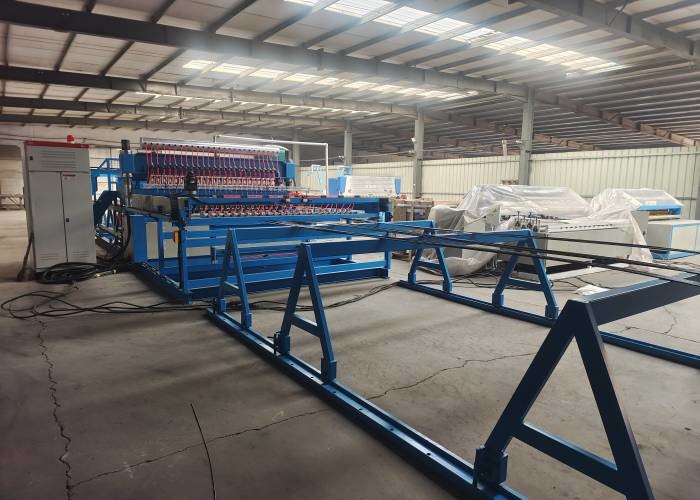

Mesh Width 3m Mesh Width 6m Highway PLC Reinforcing Mesh Welding Machine 0

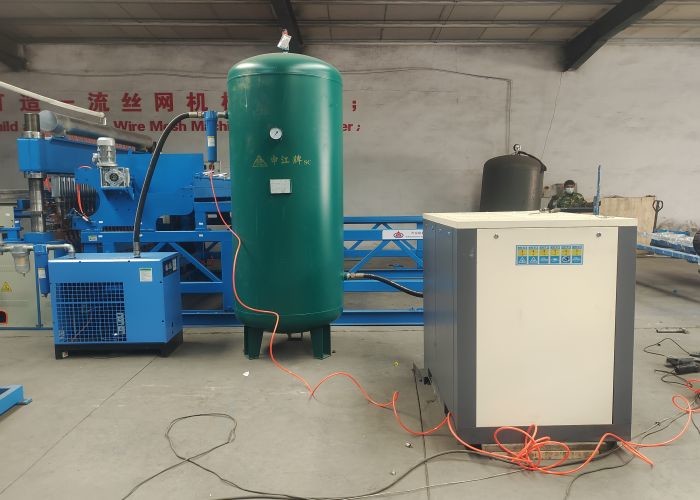

Mesh Width 3m Mesh Width 6m Highway PLC Reinforcing Mesh Welding Machine 1

Mesh Width 3m Mesh Width 6m Highway PLC Reinforcing Mesh Welding Machine 2

Mesh Width 3m Mesh Width 6m Highway PLC Reinforcing Mesh Welding Machine 3

Mesh Width 3m Mesh Width 6m Highway PLC Reinforcing Mesh Welding Machine 4
