Automatic Stacker Mesh Length 6m Reinforcing Steel Bar Mesh Welding Machine
| Place of Origin | China |
|---|---|
| Brand Name | DIXUN |
| Certification | CE |
| Model Number | DX-GWC-3000C |
| Minimum Order Quantity | One set |
| Packaging Details | The reinforcing steel bar mesh welding machine is nude packing. Need one 40 feet container to ship. |
| Delivery Time | 30 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 5 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Reinforcing Steel Bar Mesh Welding Machine | After-sales Service Provided | Commissioning And Training,Video Technical Support |
|---|---|---|---|
| Wire Diameter | 5-12mm | Voltage | 380V 50Hz 3Phase/Customized |
| Warranty | 2 Years | Usage | Welding Mesh |
| Welding Speed | 40--65 Times Per Min | Type | Automatic |
| Dimensions | 20*3.2*2.3m | Mesh Width | Max. 3m |
| Mesh Length | Max. 12m | Control System | PLC Control |
| High Light | automatic stacker reinforcing mesh welding machine,length 6m reinforcing mesh welding machine,wire mesh welding machine for reinforcement |
||
Product Description
Automatic Stack Mesh Length 6m Reinforcing Steel Bar Mesh Welding Machine
Introduction of Reinforcing Steel Bar Mesh Welding Machine:
The reinforcing steel bar mesh welding machine adopts CNC synchronous control technology, welding time and sub-control welding time are composed of PLC digital programming system, input panel for touch screen or keyboard two, the operation is more intelligent and rational. The reinforcement steel bar mesh welding machine adopts a pressing, divided welding, the biggest advantage of the control is that more than 30 different sizes of mesh between the warp and the weft can appear on the same mesh surface. The welding adopts a new high-efficiency water-cooled welding transformer to expand the range of welding wire diameters.The reinforcement steel bar mesh welding machine has a high degree of automation, reduces a lot of manual operation, and can be efficient and automatic welding mesh.
Features of Reinforcing Steel Bar Mesh Welding Machine:
1. The reinforcing steel bar mesh welding machine each group of transformers are controlled by a separate microcomputer, a pressure multiple welding, the biggest advantage of the control is: can appear on the same mesh between latitude and latitude more than 30 different sizes of holes.
2. The welding electrode head of the welding machine is made of high-quality chromium pick copper material, long service life, reduce production costs.
3 The wire feeding method of the welding machine: the diameter wire adopts artificial threading, automatic wire feeding function. Accurate position, saving welding waiting time.
4. The reinforcing steel bar mesh welding machine feeding mode: automatic feeding feed yarn hopper, accurate feeding position.
5. The pulling mesh system of reinforcement steel bar mesh welding machine: the use of servo motor reciprocating mesh, pneumatic tightening weft wire, to ensure the accurate position of the mesh.
6. The automatic stacker of reinforcing steel bar mesh welding mesh machine : automatic mesh conveying mechanism, automatic stacking, mesh stacker neatly, convenient transportation. Reduce manpower and material resources.
Line Wire Frame
The straightened wires can be put on the frame. so that wires can be gripped easily for workers.
Line Wire Feeding Mechanism
The wires will be gripped by gripper and sent to the mesh welding machine.There is some space between feeding pulley and welder, so it can realize continuous welding.
Mesh Welding Machine:
30 independent welding units, line wire spacing can be adjusted infinitely, mesh specification change is more simple and convenient.

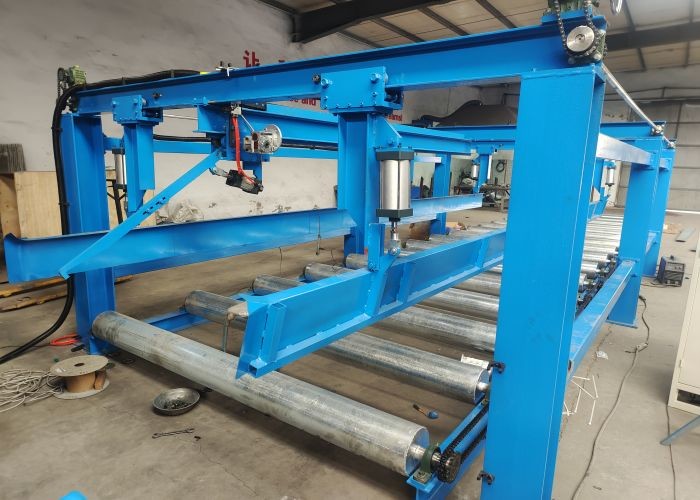

Stacking Mechanism
The meshes are pulled to stacking mechanism, the support beams in both sides will be opened and meshes fall on the rollers for transportation.

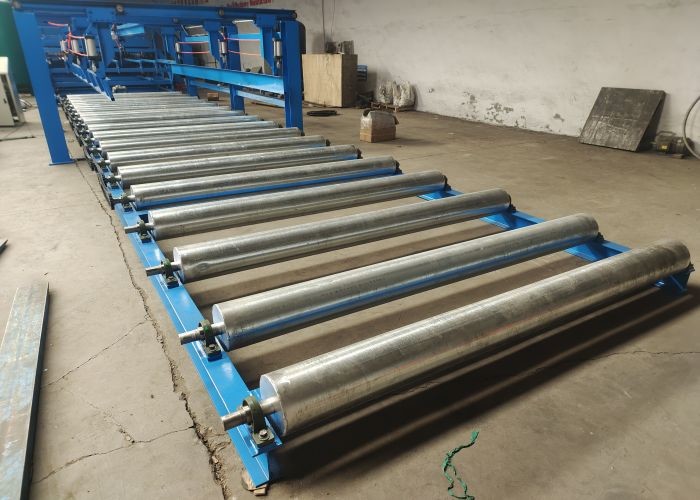

Transportation Mechanism
The stacked meshes will be conveyed out of the stacking mechanism for packing and transportation.
Technical Parameters of Reinforcing Steel Bar Mesh Welding Machine:
| Model | DX-GWC-3000C |
| Line wire space | 100-300mm |
| Cross wire space | 100-300mm |
| Line wire diameter | 5-12mm |
| Cross wire diameter | 5-12mm |
| Max. weld wire diameter | 12+12mm |
| Welding speed | 40-65 times per min |
| Welding pressure | Air cylinder |
| Width of mesh | 3000mm |
| Control system | By PLC |
| Pulling mesh system | By servo motor |
| Machine weight | 15 tons |
Applications of Reinforcing Steel Bar Mesh Welding Machine:
Reinforcing steel bar mesh is a new and energy-saving building material at present.
Widely used in highways, tunnels, multi-storey and high-rise buildings, water conservancy dam foundation, sewage treatment ponds and so on. In the concrete structure, it has the advantages of improving structural strength, saving steel, saving labor, convenient transportation, convenient construction, high precision grid layout, easy specialization, large-scale production, and high comprehensive cost efficiency.
Photos of Reinforcing Steel Bar Mesh Welding Machine:
