Transformer 160 Kva Wire Mesh Manufacturing Machine Length 45m Welding In Roll

  • Transformer 160 Kva Wire Mesh Manufacturing Machine Length 45m Welding In Roll
  • Transformer 160 Kva Wire Mesh Manufacturing Machine Length 45m Welding In Roll
  • Transformer 160 Kva Wire Mesh Manufacturing Machine Length 45m Welding In Roll
  • Transformer 160 Kva Wire Mesh Manufacturing Machine Length 45m Welding In Roll
Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-2500B
Minimum Order Quantity One set
Packaging Details The wire mesh welding machine is nude packing. Need one 20 feet container to ship.
Delivery Time 30 working days
Supply Ability 10 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Wire Mesh Welding Machine In Rolls Wire Diameter 3-6mm
Weight 3300kg Voltage 220V/380V/415V/440V
Welding Speed 40-60 Times/minute Power 7.5kw
Cross Wire Space 50mm-300mm Dimensions 14mX3.2mX2.3m
Vertical Wire Space 50mm-300mm Mesh Length 45m In Roll
Pulling Mesh System By Servo Motor Production Capacity 300 Rolls Per Day
High Light

Transformer wire mesh manufacturing machine

,

160 Kva wire mesh manufacturing machine

,

45m wire mesh making machine
Leave a Message
Product Description

Transformer 160kva Mesh Length 45m Wire Mesh Welding Machine In Roll





Introduction of Wire Mesh Welding Machine In Roll:



1. The wire mesh welding machine,the line wire feeding from coil automatically,which is more convenient and save labor;
2. The welding transformers is our new model and installed with water cooling system,which prolong the service life;
3. Our welding pressure adopts mechanical spring,easy to adjust,which save the cost and maintenance cost is lower than other pneumatic model;
4. The cross wires are fed from pre-cut,which adopts step motor driven from the special hopper one by one;
5. Every welding transformer is controlled by single microcomputer control ,cent-control welding one time pressure ,which is more intelligentialized.The controller will connect with the touch screen , and we can set the welding current and welding time on the touch screen ,which is very convenient .
6. The cross wire testing devices are equipped . When the cross wire can't suitably fall down or no cross wire, the machine will stop automatically,greatly avoid the occurrence of unqualified meshes.



Advantages of Wire Mesh Welding Machine In Roll:



1. Welding electrodes are made of pure copper, durable.
2. Brake motor & planetary reducer connect the principal axis directly, high stability.
3. Cast water-cooling transformers, high efficiency. Welding degree is adjusted by PLC.
4. SMC Japan air cylinders & pneumatic parts, machine working more stable.
5. Panasonic servo motor&planetary reducer for pulling mesh, more precise.
6.The cable carrier is Igus brand, imported from Germany, very good quality, not hung down.



Detailed Introduction of Wire Mesh Welding Machine In Roll:



Line wire straightening wheel



Each line wire will pass through the straightening wheel, which can make the mesh more flat and beautiful.

Connecting copper block

The connection between transformer and electrode uses copper block instead of soft copper leaf, which has better quality and conductive effect.

Electrode and copper base

The electrode and copper base are all made of high chromium copper, which is a special alloy material with wear resistance and high temperature resistance. Increase the service life of the electrode.



Technical Parameters of Wire Mesh Welding Machine In Roll:



No. Item Specification
1 Welding Wire Diameter Range Φ3.0-6.0(mm)
2 Cross Wire Space 100-300mm(adjustable)
3 Line Wire Space 100-300mm(adjustable)
4 Mesh Length 500-30000mm(automatic cutting mesh according to the practical needs)
5 Max Mesh Width 2500mm adjustable
6 Number of Electrodes 24/adjustable
7 Welding Speed 0-80times/min
8 Rated Voltage 380 ±5% 50HZ Three phase or customized
9 Rated Power 160KVA*4(Water cooling system)
10 Main Motor 4.0KW (Electromagnetic Brake Motor)
11 Welding Time 10ms-100ms
12 Control Way PLC+Touch Screen
13 Welding Way By Control Silicon Control Electric Resistance Weld
14 Pressure Mode Adjustable Spring Pressure
15 Weight About 3.5T
16 Overall Dimension 5100*3200*1700mm
17 External Power Supply 380V±5% 50Hz,Three Phase,<=100m from the control cabinet. or customized
18 Single-phase Load Area of Power Wire (Copper Wire)120mm2
19 External Power Transformer by Three Times Welding 150KVA
20 Cooling System Clean,neutral to slightly alkaline(ph:7~8)water,flow rate 5.12m3/h,import temperature 25~30ºC.



Applications of Wire Mesh Welding Machine In Roll:



The wire mesh in roll is widely used in grassland protection,roof construction, road hardening etc.



Photos of Wire Mesh Welding Machine In Roll:

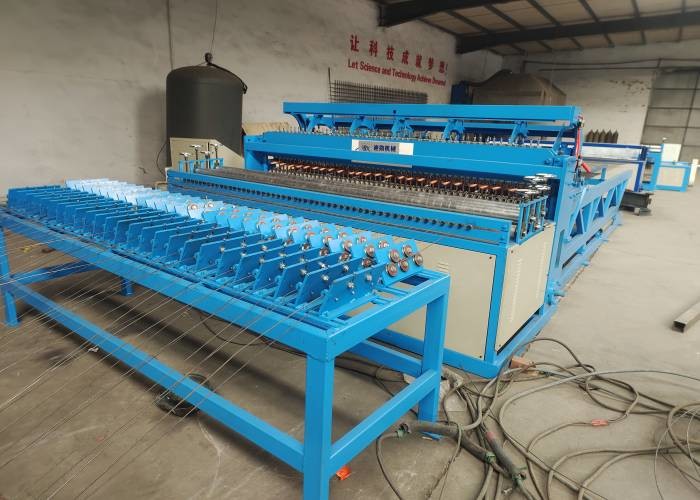

Transformer 160 Kva Wire Mesh Manufacturing Machine Length 45m Welding In Roll 0

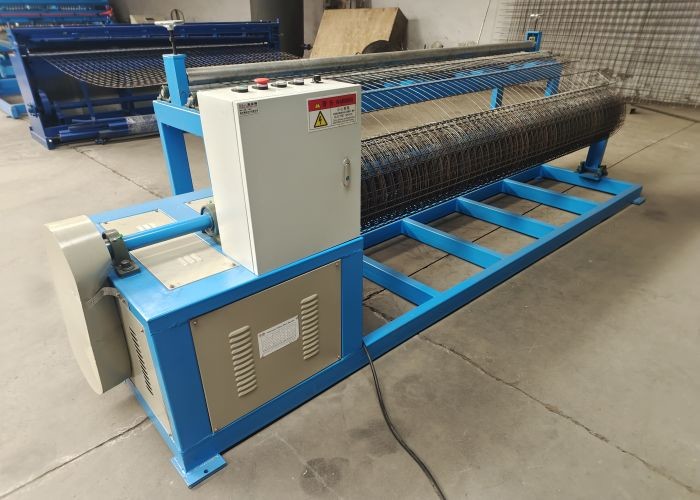

Transformer 160 Kva Wire Mesh Manufacturing Machine Length 45m Welding In Roll 1

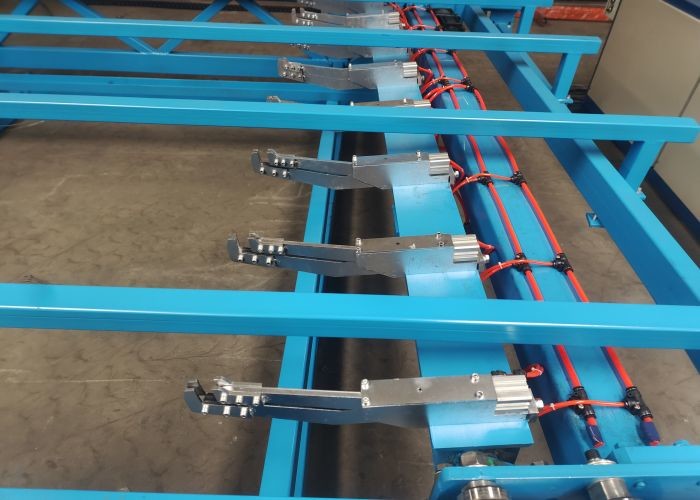

Transformer 160 Kva Wire Mesh Manufacturing Machine Length 45m Welding In Roll 2

Transformer 160 Kva Wire Mesh Manufacturing Machine Length 45m Welding In Roll 3
