Conforce Wire Mesh Making Machine For Mesh Width 2.4m Hole Size 100mm

Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-2400B
Minimum Order Quantity One set
Packaging Details The Conforce Wire Mesh Making Machine is nude packing. Need one 20 feet container to ship.
Delivery Time 30 working days
Supply Ability 10 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Product Name Conforce Wire Making Machine Width Of Mesh 2400mm
Line Wire Type Coil Wire Feeding Cross Wire Type Pre-cut
Line Wire Space 100mm-200mm Cross Wire Space 100mm-200mm
Welding Speed 45-70 Times Per Min Length Of Mesh 40m In Roll Mesh
Number Of Electrode 24pcs Main Motor 4.0kw
Pulling Mesh System By Servo Motor Cross Wire System By Stepping Motor
High Light

conforce wire mesh making machine


Width 2.4m wire mesh making machine


100mm Hole wire mesh welding machines

Leave a Message
Product Description

Mesh Width 2.4m Hole Size 100mm Conforce Wire Mesh Making Machine



Introduction of Conforce Wire Mesh Making Machine:


The conforce wire mesh making machine, designed to cater to the reading habits of English-speaking natives. This conforce wire mesh making machine offers several key features and advantages:

1. The line wire is fed automatically from a coil, providing convenience and saving labor.

2. The welding transformers are equipped with a water cooling system, ensuring a longer service life.

3. Our welding pressure utilizes a mechanical spring, making it easy to adjust and resulting in lower maintenance costs compared to other pneumatic models.

4. The cross wires are fed from pre-cut pieces, driven by a step motor from a special hopper one by one.

5. Each welding transformer is controlled by a single microcomputer, allowing for centralized control and intelligent operation. The controller is connected to a touch screen, enabling convenient setting of welding current and time.

6. The conforce wire mesh making machine is equipped with cross wire testing devices, automatically stopping the machine if the cross wire is not suitable or missing, effectively preventing the production of unqualified meshes.

Detailed Introduction of Conforce Wire Mesh Making Machine:


Line Wires Pay-off


The Line Wires Pay-off is a must-have tool for any wire mesh production line. This innovative device allows for easy and efficient unwinding of line wires, ensuring a smooth and seamless production process.


Line Wire Straightening Device


The Line Wire Straightening Device offered is designed to provide precise and accurate straightening of line wires. With this device, you can ensure that your line wires are perfectly straight, resulting in high-quality wire mesh products.

Line Wire Threading Mouth


The Line Wire Threading Mouth, manufactured by Anping Wanzhong Wire Mesh Products Co., Ltd., is an essential tool for threading line wires through the wire mesh machine. This device simplifies the threading process, saving you time and effort.


Cross Wire Feeding Device


The Cross Wire Feeding Device is a cutting-edge solution that ensures smooth and precise wire feeding during the mesh production process. With its advanced technology, this device eliminates wire tangling and ensures consistent wire spacing, resulting in high-quality mesh products.


Servo Motor Pulling Mesh Device


The Servo Motor Pulling Mesh Device is a game-changer in wire mesh production. Equipped with a powerful servo motor, this device offers precise and controlled pulling of the mesh, ensuring accurate dimensions and tight mesh formation. It significantly reduces manual labor and increases productivity.

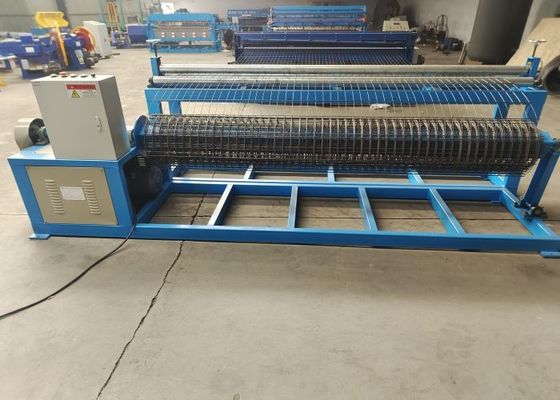

Automatic Rolling Mesh Machine


The Automatic Rolling Mesh Machine is a state-of-the-art machine that automates the mesh rolling process. The rolling mesh speed is adjustable. With its advanced features, this machine can roll the mesh into neat and compact rolls, ready for transportation or storage. It saves time, reduces labor costs, and improves overall efficiency.


Technical Parameters of Conforce Wire Mesh Making Machine:


No. Item Specification
1 Welding Wire Diameter Range Φ3.0-5.0(mm)
2 Cross Wire Space 100-300mm(adjustable)
3 Line Wire Space 100-300mm(adjustable)
4 Mesh Length 500-30000mm(automatic cutting mesh according to the practical needs)
5 Max Mesh Width 2500mm adjustable
6 Number of Electrodes 24/adjustable
7 Welding Speed 0-80times/min
8 Rated Voltage 380 ±5% 50HZ Three phase or customized
9 Rated Power 160KVA*4(Water cooling system)
10 Main Motor 4.0KW (Electromagnetic Brake Motor)
11 Welding Time 10ms-100ms
12 Control Way PLC+Touch Screen
13 Welding Way By Control Silicon Control Electric Resistance Weld
14 Pressure Mode Adjustable Spring Pressure
15 Weight About 3.5T
16 Overall Dimension 5100*3200*1700mm
17 External Power Supply 380V±5% 50Hz,Three Phase,<=100m from the control cabinet. or customized
18 Single-phase Load Area of Power Wire (Copper Wire)120mm2
19 External Power Transformer by Three Times Welding 150KVA
20 Cooling System Clean,neutral to slightly alkaline(ph:7~8)water,flow rate 5.12m3/h,import temperature 25~30ºC.


Photos of Conforce Wire Mesh Making Machine:

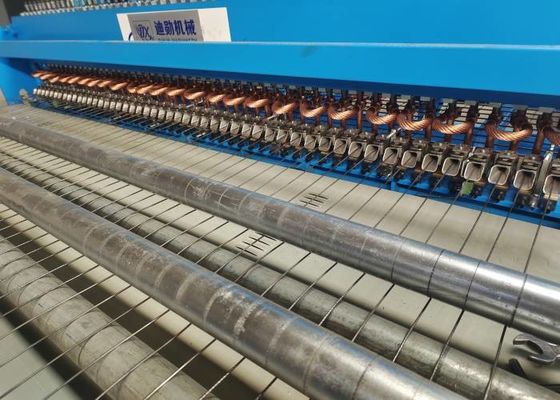

Conforce Wire Mesh Making Machine For Mesh Width 2.4m Hole Size 100mm 0

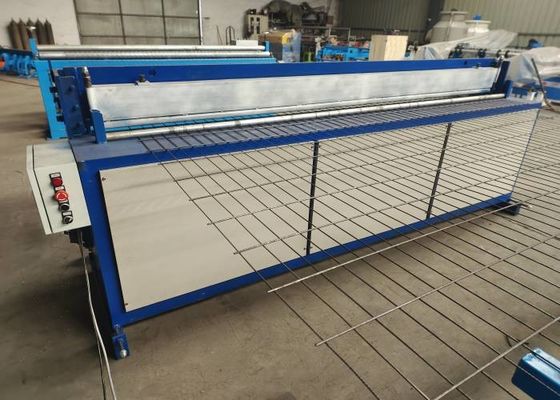

Conforce Wire Mesh Making Machine For Mesh Width 2.4m Hole Size 100mm 1

Conforce Wire Mesh Making Machine For Mesh Width 2.4m Hole Size 100mm 2
