Prison Defence BTO-22 11 strips Concertina Razor Barbed Wire Machine
| Place of Origin | China |
|---|---|
| Brand Name | DIXUN |
| Certification | CE & ISO 9001:2015 |
| Model Number | DX-63T |
| Minimum Order Quantity | One set |
| Packaging Details | The spare parts and control cabinet will be loaded in wooden box. The main machine is nude packing.It need one 40 ft container. |
| Delivery Time | 30 working days |
| Supply Ability | 5 sets per month |
Product Details
| Product Name | Concertina Razor Barbed Wire Machine | Load Steel Weight Of Decoiler | 2T |
|---|---|---|---|
| Motor Of Decoiler | 1.5kw | Motor Of Punch Machine | 5.5kw |
| Weight Of Punch Machine | 3.9T | Width Of Steel Coil | 154mm |
| Thickness Of Steel Coil | 0.5mm Or 0.4mm | Number Of Strips | 11 Strips |
| Total Weight | 9T | Required Labor | One Person |
| Highlight | concertina razor barbed wire machine,BTO-22 razor wire machine,11 strips barbed wire machine |
||
Product Description
Prison Defence BTO-22 11 strips Concertina Razor Barbed Wire Machine
Introduction of Concertina Razor Barbed Wire Machine
Concertina Razor Wire with Various Blade Types Making Machine,.The razor barbed wire machine, also known as the razor barbed wire machine is a special machine for producing razor barbed wire.
Advantages of Concertina Razor Barbed Wire Machine
1. High speed punching machine. high efficiency and easy operation.
2. Automatic lubricating system to save operation time and avoid some parts worn because of short of lubrication oil.
3. Step motor feeding material to make material feeding more precise.
4. PLC control to make operation easy and machine run stable.
5. Some spare parts for free
Working principle of Concertina Razor Barbed Wire Machine
Razor barbed wire machine consists of razor strip making machine and coil machine. Razor strip making machine cuts steel strip into different razor shapes according to different moulds.
Coil machine is used to wrap razor strip up onto the steel wire and wind up the finished products into rolls.
Technical Parameters of Concertina Razor Barbed Wire Machine

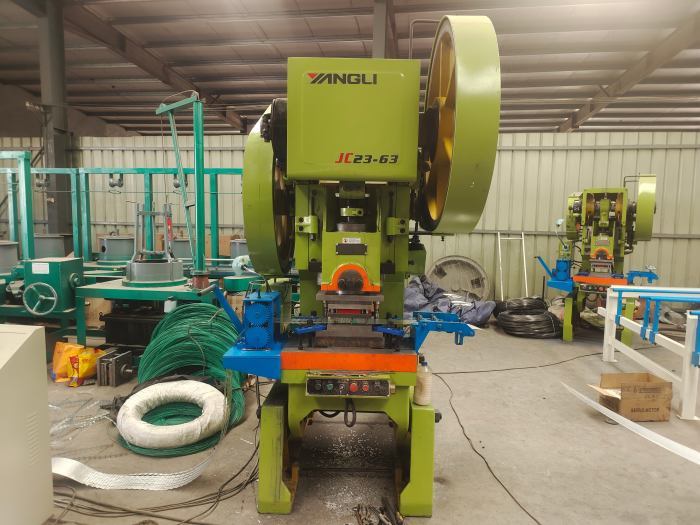

| Punch machine from Yangli brand Best quality | Coiling machine nverter controlled | |
| Production speed | 220-280m/h | 800kg at 8 hours |
| Raw material | Galvanized steel sheet or Stainless steel | Galvanized wire |
| Thickness | 0.5mm or 0.4mm | 2.5mm |
| Motor | 5.5kw | 1.5kw |
| Voltage | 220V,380V,415V,440V | 220V,380V,415V,440V |
| Weight | 3.9T | 400kg |
| Dimension | 1800x1600x2650mm | 1000x550x1000mm |
| Punch pressure | 63T | |
| Feeding material | By stepping motor |
Applications of Concertina Razor Barbed Wire
Barbed wire with blades, also known as blade barbed wire or blade barrier mesh, is a new type of security fencing. It features excellent qualities such as aesthetic appearance, cost-effectiveness, high effectiveness in deterrence, and easy installation. As a result, it is widely used in industrial and mining enterprises, gardens and residential complexes, border outposts, prisons, detention centers, government buildings, and other national security facilities across many countries.

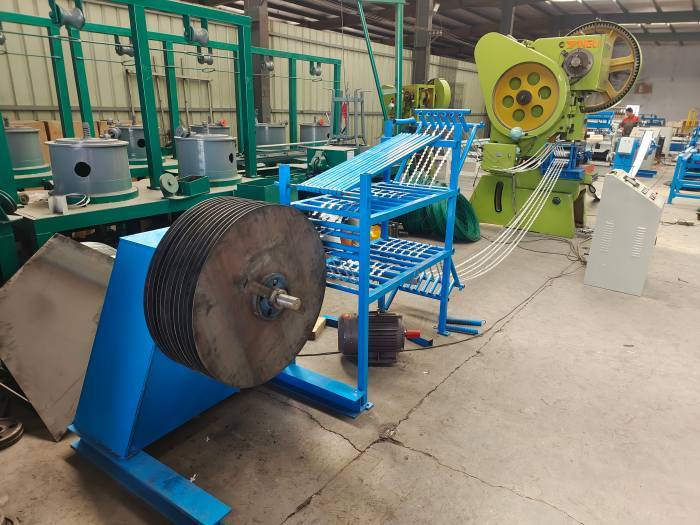

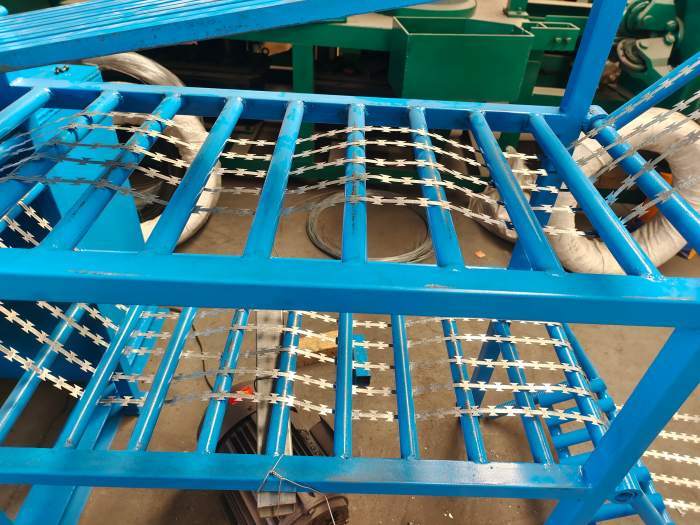

Photos of Conceretina Razor Barbed Wire Machine
