Separate Control Anti Climb 6m Wire Fence Making Machine
| Place of Origin | China |
|---|---|
| Brand Name | DIXUN |
| Certification | CE |
| Model Number | DX-GWC-3200A |
| Minimum Order Quantity | One set |
| Packaging Details | The Security Fence Mesh Panel Welding Machine is nude packing. Need one 40 feet container to load. |
| Delivery Time | 30 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 8 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Mesh Panel Welding Machine | Wire Diameter | 3.0-6.0 Mm |
|---|---|---|---|
| Mesh Width | Max 3200mm | Mesh Size | 76.2*12.7mm (standard Mesh Size) |
| Mesh Length | Max 6m | Welding Transformer | 160KVA*11PCS |
| Welding Speed | 80-120 Times Per Min | Welding Electrodes | 44PCS |
| Weight | 4.9T | Dimension | 6.5*3.9*1.9m |
| Workshop Dimension | 16m*6m | Labor Cost | Two Persons |
| Power Transformer | 120KVA | Condition | New |
| High Light | 6m Wire Fence Making Machine,Anti Climb Wire Fence Making Machine,6m wire net making machine |
||
Product Description
SMC Air Cylinder Panasonic PLC Anti-Climb Fence Mesh Panel Welding Machine
Anti-Climb Fence Mesh Panel Welding Machine Introduction:
The anti-climb fence mesh panel welding machine is also called security fence mesh panel welding machine. The machine welding pressure is from the air cylinder. The air cylinder is adopt SMC Japan. Each welding electrode is controlled by one SMC air cylinder, the pressure can be totally same. So the welding points are even, the finished mesh is flattened.We can design the machine according to your wire diameter, mesh hole size and mesh width.
Anti-Climb Fence Mesh Panel Welding Machine Features:
1. The anti-climb fence mesh panel welding machine is mainly used to make anti-climb fence mesh panel.
2. Pre-cut of line wire and weft wire, line wire feeding by manual, weft wire feeding by automatic alignment.
3. Each welding electrode is controlled by one SMC(Japan) air cylinder. So the welding points are even. One copper wire connects one welding electrode. (Single wire connection). The welding electrodes will not affect each other.
4. Both of upper and lower electrodes are water cooling, to reduce the temperature of welding electrode.
5. New Pneumatic welding for stronger welding, smoother mesh and faster speed.
6. The pulling system with a servo motor pulls the mesh panel more accurately and intelligently.
7. The security fence mesh panel welding machine is made of thick steel plate and profile steel, high strength, high toughness, main structure is more solid.
8. The welding adopts separate-control technology, making the welding transformers working separately to reduce the capacity requirement of power transformer and reduce the impact current.
9. The circuit module is designed by our engineers and university professors, not be easily broken. The welding spark is less.
10. The cross wire space adjustment adopts PLC micro-computer control, set on the touch screen. You could adjust the cross wire space on the touch screen. Very easy and convenient to operate and master.
Anti-Climb Fence Mesh Panel Welding Machine Technical Parameters:
| Model | DX-GWC-2500A | DX-GWC-3200A |
| Wedling mesh width | 2500mm | 3200mm |
| Line wire space | 76.2-300mm | 76.2-300mm |
| Cross wrie space | 12.7-200mm | 12.7-200mm |
| Mesh length | Max 6m | Max 6m |
| Wire diameter | 3-6mm | 3-6mm |
| Welding electrodes | 33PCS | 44PCS |
| Copper material | Chromium Zirconium copper | Chromium Zirconium copper |
| Welding transformer | 160KVA*8PCS | 160KVA*11PCS |
| Welding speed | 80-120 times per min | 80-120 times per min |
| Control system | By PLC touch screen | By PLC touch screen |
| Weight | 5.2T | 5.8T |
| Dimension | 6.5*3.2*1.9m | 6.5*3.9*1.9m |
Anti-Climb Fence Mesh Panel Welding Machine Technical Parameters:
The security fence mesh panel is mainly used in the military, airports, security forces, prisons, light rail, inter-city trains and other important isolation measures.

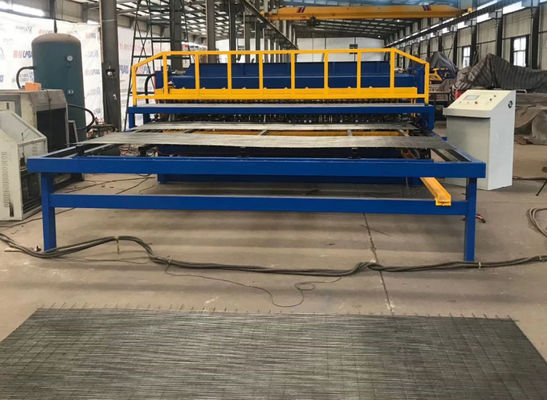

Anti-Climb Fence Mesh Panel Welding Machine Photos:
