Servo Motor Cross Wire 48PCS Mesh Panel Welding Machine

Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-GWC-2500D
Minimum Order Quantity One set
Packaging Details The Welded Wire Mesh Panel Welding Machine is nude packing. Need one 20 feet container to load.
Delivery Time 30 working days
Payment Terms L/C, T/T
Supply Ability 5 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Product Name Mesh Panel Welding Machine Wire Diameter 3.0-6.0mm
Mesh Width Max 2500mm Line Wire Distance Min 50mm Max 200mm
Cross Wire Distance Min 12.5mm Max 200mm Welding Speed 75 Times Per Min
Welding Electrodes 48PCS Mesh Length Max 6m
Welding Transformer 160KVA*6PCS Pulling Mesh System By Servo Motor Controlled
Application Material Ribbed Steel Bar, Round Bar, Galvanized Wire Power Transformer 120KVA To Supply Working.
High Light

48PCS Mesh Panel Welding Machine


Servo Motor Mesh Panel Welding Machine


6m fence panel machine

Leave a Message
Product Description

Line Wire Manual Feed Cross Wire Space Adjust Wire Mesh Panel Welding Equipment



Wire Mesh Panel Welding Equipment Introduction:

The Wire Mesh Panel Welding Equipment adopts intelligent control, high integration, low failure rate, welding control system independently developed by our company.The welding mesh is firm and highly efficient. The Wire Mesh Panel Welding Equipment can one time pressing, sub welding, the biggest advantage is that the machine can produce different mesh hole size in one piece of mesh panel. New efficient water-cooled welding transformer is adopted for welding, which enlarges the range of welding wire diameter. Easy to operate, high flexibility, the output is several times of manual single spot welding machine. The Wire Mesh Panel Welding Equipment suitable material: ribbed steel bar, round bar, galvanized wire.


Wire Mesh Panel Welding Equipment Features:


1. The Wire Mesh Panel Welding Equipment is a mechatronics welding mesh equipment, the advantage is that the wire can be adjusted, the aperture of the weft wire input computer can reach the hole distance you reach, in the welding mesh if you want to make the hole distance to be changed, you put the hole distance input computer can reach the hole distance you want, the hole distance can be adjusted at will.

2. Each group of transformers is controlled by a separate microcomputer, which can be welded by pressing and controlling once. The welding point is uniform, firm, more stable, faster and more intelligent.
3. This Wire Mesh Panel Welding Equipment adopts mechanical welding pressure, pressure point uniform, no welding.
4. The welding point of the equipment is made of high quality alloy copper, long service life, reduce the production cost.
5. The enhanced design of the transformer has a separate, can meet the long-term welding, no open welding leakage phenomenon.
6. Only one person is needed to operate the whole process to reduce labor costs.

7. The finished product mesh panel by the Wire Mesh Panel Welding Equipment flat mesh, is a small diagonal error welding mesh equipment.

After-sales service:

1. The warranty period is one year, and the equipment program part is maintained for life. The wearing parts and electronic parts are not covered by the warranty.
2. If the equipment fails, our company will reply within one hour and go to the customer's site for maintenance as soon as possible.
3. After the warranty, our company will provide life-long after-sales service support, and provide equipment components at a preferential price.


Welded Wire Mesh Panel Welding Machine Technical Parameters:


Model DX-GWC-2500D Welding wire diameter 3.0-6.0mm
Welding mesh width 2500mm Welding speed 75 times per min
Line wire distance 50-200mm Cross wrie distance 12.5-200mm
Line wire way Pre-straighten pre-cut Cross wire way Pre-straighten pre-cut
Welding electrodes 48PCS Welding transformer 160KVA*6pcs
Machine dimension 12*3*1.8m Main motor power 4KW
Control system By PLC programmable controller Welding way Silicon controlled
Power transformer 120KVA Upper electrodes size 20*120mm


Welded Wire Mesh Panel Welding Machine Applications:


The welded wire mesh panel welding machine is mainly used in fence mesh, road mesh, reinforcing mesh, shelf, explosion-proof wall etc.


Welded Wire Mesh Panel Welding Machine Photos:

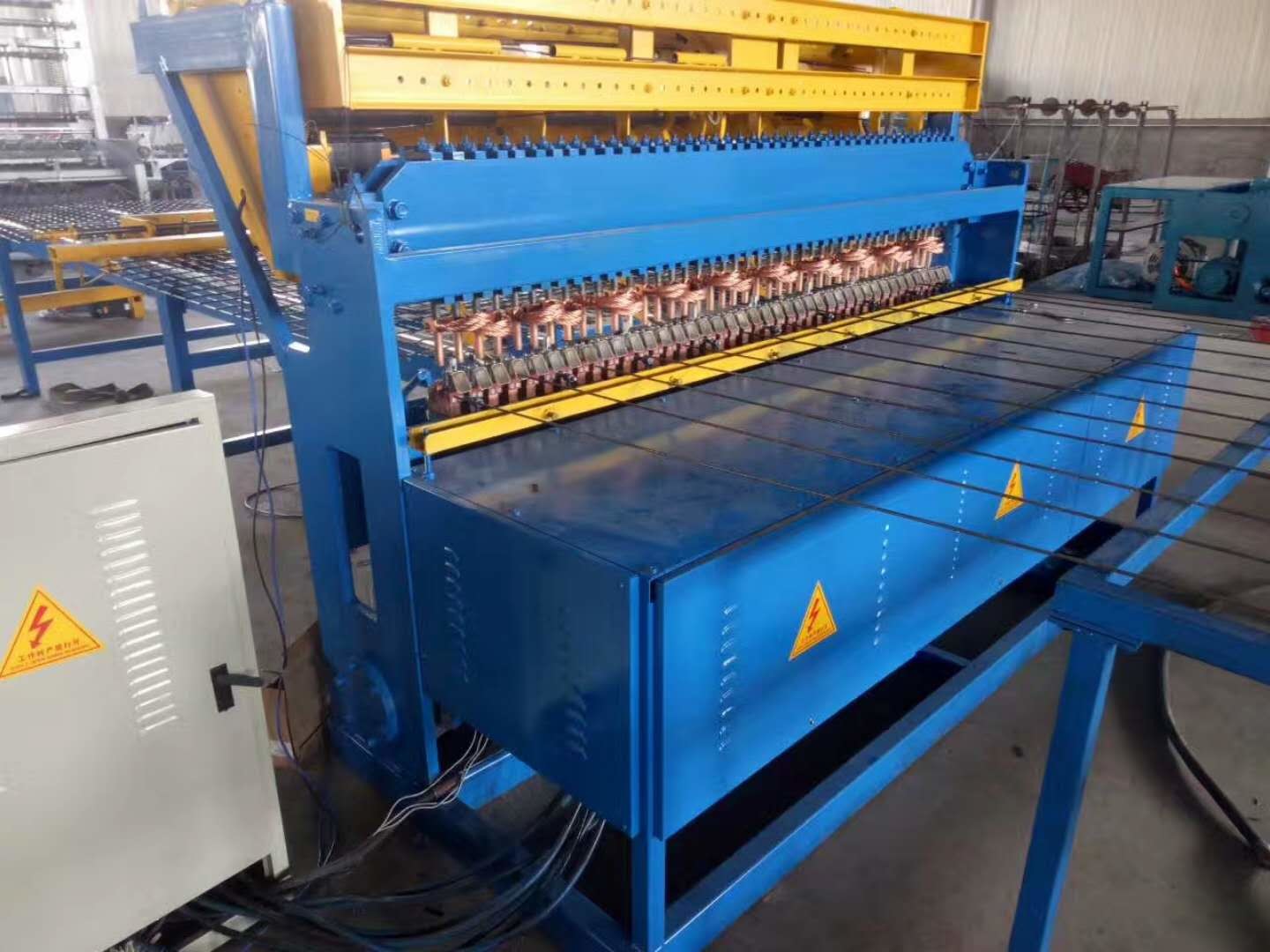

Servo Motor Cross Wire 48PCS Mesh Panel Welding Machine 0

Servo Motor Cross Wire 48PCS Mesh Panel Welding Machine 1
