Rebar Size 3-8mm Wire Straightening And Cutting Machine Length 6m

  • Rebar Size 3-8mm Wire Straightening And Cutting Machine Length 6m
  • Rebar Size 3-8mm Wire Straightening And Cutting Machine Length 6m
  • Rebar Size 3-8mm Wire Straightening And Cutting Machine Length 6m
Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-BY4-8
Minimum Order Quantity One set
Packaging Details Rebar Straightening And Cutting Machine nude packaging.
Delivery Time 30 working days
Supply Ability 10 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Rebar Straightening And Cutting Machine Weight 1200kg
After-sales Service Provided Engineers Available To Service Machinery Overseas Condition New
Warranty One Year Voltage 220V/380V/415V/440V
Dimension(l*w*h) 7100*600*1100mm Power(w) 11KW
Application Steel Bar Straightening Cuttting Cutting Speed 130m Per Min
Cutting Length Error 1mm
High Light

rebar wire straightening and cutting machine

,

3mm wire straightening and cutting machine

,

wire rod straightening and cutting machine
Leave a Message
Product Description

Rebar Size 4-8mm Cut Length 6m Rebar Straightening And Cutting Machine





Rebar Straightening And Cutting Machine Introduction:



Rebar straightening and cutting machine is a kind of auto equipment designed and manufactured by ourselves based on absorbing the advanced electromechanical controlled resistance technology from home and abroad. Combined with a high ratio of performance to price the domestic market launches steel wire straightening and cutting equipment.



Rebar Straightening And Cutting Machine Features:



1. High speed straightening& cutting machine with high production, which can match our welding machine working speed.
2. One set high speed machine equal to few sets normal speed machine, save power and labor, also save working space.
3. With PLC+ touch screen control system, easy operation.
4. Famous brand configuration, easily for after-sales maintenance.
5. Our advanced wire pay-off, can bear 600-2000 kg wires, no need for frequent feeding wire coils.
6. Better material for machinery, stronger and longer service life.

7. Due to the precise processing of parts and strict quality control, after installation and commissioning, under normal working conditions, it can maintain trouble-free operation for a long time.
8. Particularly suitable for steel bar processing, such as housing construction, steel welded mesh, etc.
9. The machine adopts servo motor with high precision and good stability.



Rebar Straightening And Cutting Machine Technical Parameters:



Model GY2-3.5 GY3-8 GY6-12
Wire diameter 2-3.5 mm 3-8 mm 5-12 mm (round rod),

6-10 mm (ribbed bar)
Cut length 500-2500 mm 700-6000 mm 1000-12000 mm
Cut error ±1 mm ±1 mm ±1 mm
Speed 80-100 m/ min 100-120 m/min 70-130 m/min
Straightening motor 4 KW 11 KW 22 KW
Cutting motor 1.5 KW 4.0 KW 7.5 KW
Overall dimension 7.2*0.8*1 m 9×0.6×1.2m 30×3×2m
Weight 1100 kgs 1200Kgs 5500 Kgs

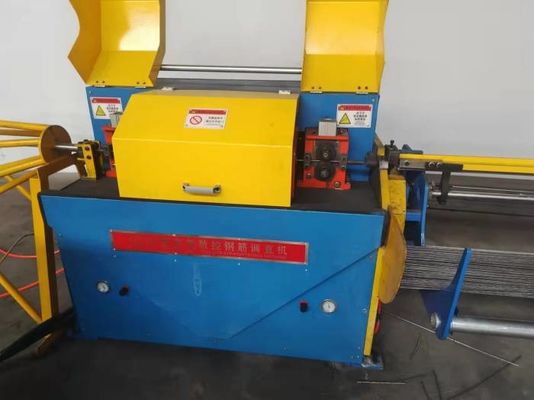

Photos of Rebar Straightening And Cutting Machine:



Rebar Size 3-8mm Wire Straightening And Cutting Machine Length 6m 0

Rebar Size 3-8mm Wire Straightening And Cutting Machine Length 6m 1

Rebar Size 3-8mm Wire Straightening And Cutting Machine Length 6m 2

Rebar Size 3-8mm Wire Straightening And Cutting Machine Length 6m 3
