Diameter 3mm Welded Wire Mesh Machine Pneumatic Hook Pull
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||Welded Wire Mesh Machine||Wire Diameter||2.5-6mm|
|Warranty||2 Years||Welding Speed||40-60 Times/minute|
|Mesh Type||Rolling Mesh||Power||7.5kw|
|Cross Wire Space||Adjustable Stepless 25-600 Mm||Hole Size||50*50~200*200mm|
|Width||2500mm||Longitudinal Wire Type||Coil Wire Feeding|
|Horizontal Wire Type||Pre-cut||Roll Length||50m|
diameter 3mm welded wire mesh machine,
precut welded wire mesh machine,
pneumatic hook pull mesh welding machine
Wire Diameter 3mm Pneumatic Hook Pull Mesh Welded Wire Mesh Machine
Welded Wire Mesh Machine Introduction:
This welded wire mesh machine mainly by numerical control technology the production line fully automatic rebar fast and accurate welded into a network, the biggest characteristic is automatic type, can realize the volume mesh, also can realize net, longitudinal reinforcement and transverse reinforcement can realize automatic feeding, automatic straightening, automatic feeding, automatic welding, automatic pull, automatic cutting, automatic roll of net, automatic double network, automatic, automatic roll out. Ensure fast and seamless change of welding specifications, to achieve accurate and fast welding, to ensure quality.
Welded Wire Mesh Machine Features:
1. Longitudinal reinforcement and transverse reinforcement can realize automatic feeding, automatic straightening, automatic feeding, automatic welding, automatic pulling, automatic cutting, automatic winding, automatic turning over, automatic pushing, automatic rolling out.
2. The machine adopts computer and programmable controller control, high degree of automation.
3. Imported automatic digital servo motor system to ensure accurate grid size.
4. The welded wire mesh machine can weld cold rolled ribbed steel bar, hot rolled ribbed steel bar, hot rolled disk steel bar, cold rolled light circle and other materials, wide adaptability.
5. Welding transformer, SCR, upper and lower electrode welding system adopts forced water cooling and flow protection device, the unit can reliably work continuously.
6. According to the user's capacity, the use of one or two welding, flexibility.
7. Automatic positioning of the length of the network cutting mechanism, accurate cutting of the network.
8. Longitudinal wire design with wire splitter, flexible and convenient to change the mesh, to ensure the accuracy of the finished mesh.
9. Longitudinal wire with storage mechanism, can ensure the quality of continuous feeding.
10. Longitudinal and horizontal straightening mechanism is adopted to ensure the straightness of the wire and the beauty of the net.
Welded Wire Mesh Machine Technical Parameters:
|Mesh length||45m in roll mesh|
|Longitudinal wire diameter||3-6mm|
|Horizontal wire diameter||3-6mm|
|Longitudinal wire space||50-250mm|
|Horizontal wire space||25-300mm|
|Number of welding electrode||48PCS|
|Main motor power||7.5kw|
|Raw material||Galvanized wire,black wire.|
|Welding speed||40-60 times/minute|
|Longitudinal wire feeding method||Coil wire feeding automatically|
|Horizontal wire feeding method||Pre-cut feeding automatically|
|Welding press||By spring press|
|Adjust longitudinal wire space||By manual to move the welding electrode|
|Adjust horizontal wire space||By touch screen|
|Pulling mesh method||By servo motor to pull mesh|
Welded Wire Mesh Machine Applications:
Welded wire mesh is used for roof protection of coal mines, tunnels, bridge construction, roadbed reinforcement, construction site construction materials.

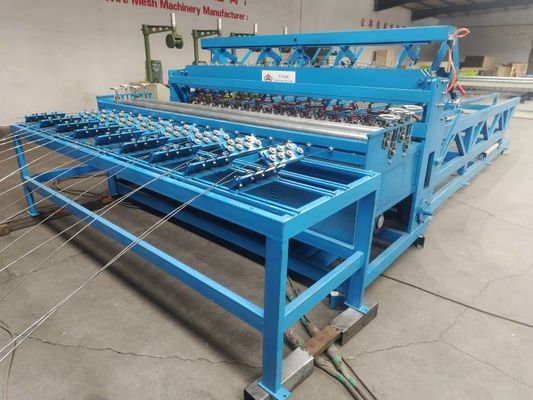

Welded Wire Mesh Machine Photos:
