Mesh Size 150mm Vertical Wire Coil Road Hardening Conforce Wire Machine

  • Mesh Size 150mm Vertical Wire Coil Road Hardening Conforce Wire Machine
  • Mesh Size 150mm Vertical Wire Coil Road Hardening Conforce Wire Machine
  • Mesh Size 150mm Vertical Wire Coil Road Hardening Conforce Wire Machine
  • Mesh Size 150mm Vertical Wire Coil Road Hardening Conforce Wire Machine
Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-2500B
Minimum Order Quantity One set
Packaging Details The Conforce Wire Machine is nude packing. Need one 20 feet container to ship.
Delivery Time 30 working days
Supply Ability 10 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Welded Wire Mesh Machine Welding Speed 40-60 Times/minute
Mesh Width Max.1.2-2.5m Control System PLC
Type Fully Automatic Mesh Type Roll Mesh/panels
Hole Size 50*50~200*200mm Vertical Wire Diameter 3-5mm
Cross Wire Diameter 3-5mm Roll Mesh Length 45m
Pulling Mesh System By Servo Motor Production Capacity 300 Rolls Per Day
High Light

150mm welded wire mesh machine

,

Vertical welded wire mesh machine

,

Vertical automatic wire mesh welding machine
Leave a Message
Product Description

Mesh Size 150mm Vertical Wire Coil Roof Construction Conforce Wire Machine





Introduction of Construction Conforce Wire Machine:



The conforce wire machine is improved by our company according to the needs of customers.The conforce wire machine has added an intelligent roll mesh system on the basis of the original one,which can adjust the roll mesh speed according to the welding speed of the machine, so as to make the mesh roll even and beautiful.



Features of Conforce Wire Machine:



1. The mesh size is directly set on the touch screen, which is convenient and simple.



2. Vibration device is added to the cross wire feeding system to prevent wire winding.

3. The vertical wire automatic wire feeding and the cross wire are pre-straightening and cutting.

4. Cross wire adjustment on screen, line wire adjustment need move the welding electrode.

5. The mesh roll length can be set by the control panel.

6. We can easily adjust the welding current when we need to weld different wire diameters.

7. The finished product roll mesh is smooth and the error of opposite angle line is small.

8. We can set the output and stop the machine automatically after the mesh production finished.

Pull mesh system

The mesh pulling system adopts servo motor, which can improve the accuracy of mesh size and make the mechanical operation more
smooth.

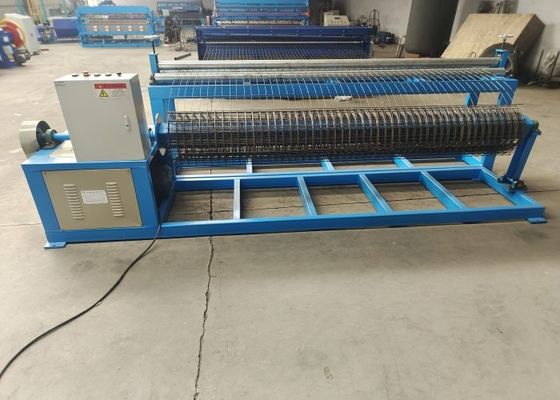

Automatic roll mesh machine

The roll mesh system can automatically push the finished mesh roll out of the machine, save labor and increase output.

Connecting copper block

The connection between transformer and electrode uses copper block instead of soft copper leaf, which has better quality and
conductive effect.

Vertical wire straightening wheel

Each vertical wire will pass through the straightening wheel, which can make the mesh more flat and beautiful.

Technical Parameters of Conforce Wire Machine:

Model DX-2500B
Vertical wire type Automatic Coil wire feeding
Cross wire type Pre-cut
Number of welding electrode 51 pcs
Welding transformer 160KVA*7pcs
Control system PLC
Vertical wire space 50-200mm
Cross wire space 50-200mm

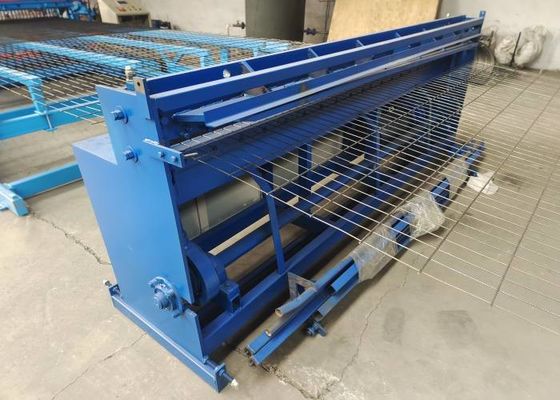

Mesh cutting machine Automatic cut mesh
Rolling mesh machine Automatic rolling mesh
Main motor 5.5kw
Machine weight 5.8 tons
Machine dimension 15*3.3*1.7mm
Vertical wire straighten wheel 51 sets
Cross wire hopper Controlled by stepping motor



Applications of Conforce Wire Machine:



Building and civil engineering. Welding mesh is often used in the reinforcement of building structures, such as in the crack prevention project of wall insulation, internal plaster hanging mesh, and external wall insulation of high-rise buildings
The breeding industry. Electric welded mesh can be used as a fence to enclose livestock or crops.
Agriculture. Electric mesh can be used for garden fencing, drying crops (such as corn), and captive farming in the home.



Photos of Conforce Wire Machine:

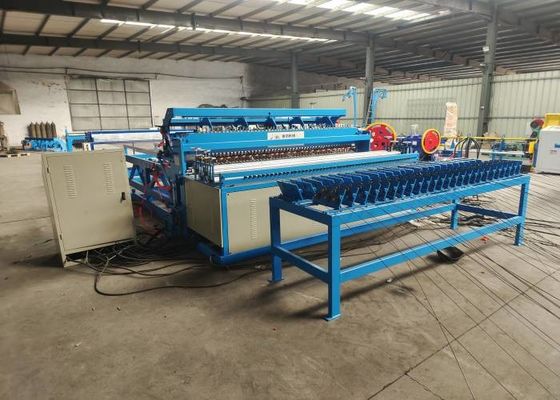

Mesh Size 150mm Vertical Wire Coil Road Hardening Conforce Wire Machine 0

Mesh Size 150mm Vertical Wire Coil Road Hardening Conforce Wire Machine 1

Mesh Size 150mm Vertical Wire Coil Road Hardening Conforce Wire Machine 2

Mesh Size 150mm Vertical Wire Coil Road Hardening Conforce Wire Machine 3
