Cut Length 6m Rebar Straightening And Cutting Machine Size 5-8mm

Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-HS5-8
Minimum Order Quantity One set
Packaging Details Nude packing.
Delivery Time 30 working days
Supply Ability 10 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Product Name Steel Wire Straightening And Cutting Machine Straightening Speed 35m/min
Motor Power 5.5kw Wire Diameter 5-8mm
Cutting Length 1-6m Weight 400KG
Voltage 220V/380V/415V/440V Dimension(l*w*h) 7100*600*1100mm
Straight Mould 7 Pcs Floor Space 10*3m
High Light

6m rebar straightening and cutting machine


5mm rebar straightening and cutting machine


8mm rebar coil straightening machine

Leave a Message
Product Description

Cut Length 6m Rebar Size 5-8mm Rebar Straightening And Cutting Machine



Introduction of Rebar Straightening And Cutting Machine:


Rebar straightening and cutting machine, also called wire straightening and cutter,steel wire straightening and cutting machine. It belongs to one of the straightening equipment. For straightening and cutting steel bars up to 8 mm in diameter, the cutting length can be customized according to customer requirements. Adjustable straight and cut stainless steel wire, aluminum wire, cold drawing wire, plastic steel wire, etc., cut, small error, good performance.


The structure of the rebar straightening and cutting machine is to adjust the Angle of the straight wire die by rotating the high-speed rotor, to achieve the effect of straightening, and then through the wire wheel forward. After reaching the required size, the wire touches the positioning key and pushes the runway forward 5 mm, the upper punch presses the vertical cutting knife immediately cut off, the wire through the pressure plate on the vertical wire knife presses the open bearing, the wire automatically falls to the wire holder, if you want to change the length, move the positioning key.


Features of Rebar Straightening And Cutting Machine:


1. This rebar straightening and cutting machine mainly consists of Rotary plate type feeding rack,Protection frame,Main machine, Store wire frame,Control cabinet and Control cabinet.

2. The machine structure is rational, it is stable and reliable, simple operation, high automation and good performance.

3. The cut length and wire diameter can be adjusted according to your requirement.

4. This machine only needs one worker to insert the wire into the straightening assembly, then the machine can straighten and cut wires automatically.

5. The straightening moulds are alloy material, can be used long time.

6. Straightening speed of 130 m/min, usually in 120 m/min work, straightening short steel bar below 2 m in low and medium speed work.

7. High shearing accuracy, cutting length error ±1mm.

8. High straightness, straightening steel straightness is less than or equal to 2 mm/m.

9. Suitable for straightening shear cold rolled round, cold rolled ribbed steel bar, hot rolled round, hot rolled ribbed steel bar.

10. Low failure rate: due to the fine processing of parts, strict quality control, so after installation and debugging, under normal working conditions, can maintain trouble-free operation for a long time.

11. Advanced technology: this machine straightening, cutting and the world's advanced technology synchronization.


Technical Parameters of Rebar Straightening And Cutting Machine:


Model DX-HS5-8 Wire diameter 5.0mm-8.0mm
Cut length error ±1mm Cutting length 500-6000mm
Wire Straighten motor 4.0kw Straightening speed Max.35m/min
Wire cutting servo motor 1.5kw Weight 400kg
Manpower 1 person Machine dimension 7100*600*1100mm (L*W*H)
Required floor space 10*3m(L*W) Production capacity 15 tons /10 hours (6mm rebar)


Applications of Rebar Straightening And Cutting Machine:


The rebar straightening and cutting machine has the characteristics of reasonable structure, convenient operation, safe and reliable, etc. The rebar straightening and cutting machine is suitable for the straightening of chicken coop, rabbit coop, construction net, various welding wire, Shule board wire cutting and special-shaped net wire.


Photos of Rebar Straightening And Cutting Machine:

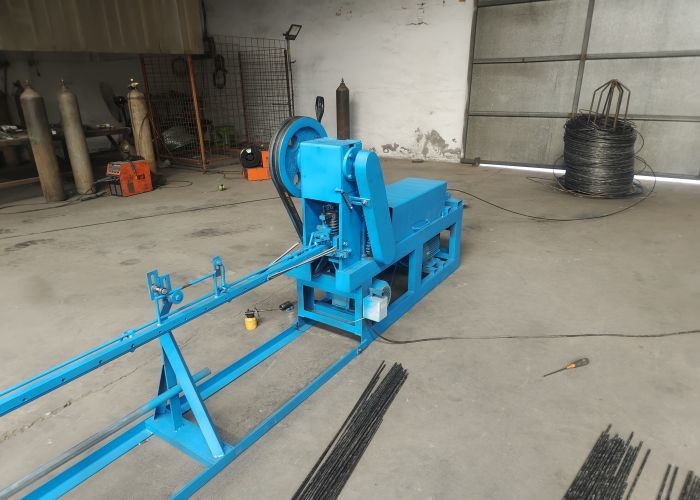

Cut Length 6m Rebar Straightening And Cutting Machine Size 5-8mm 0

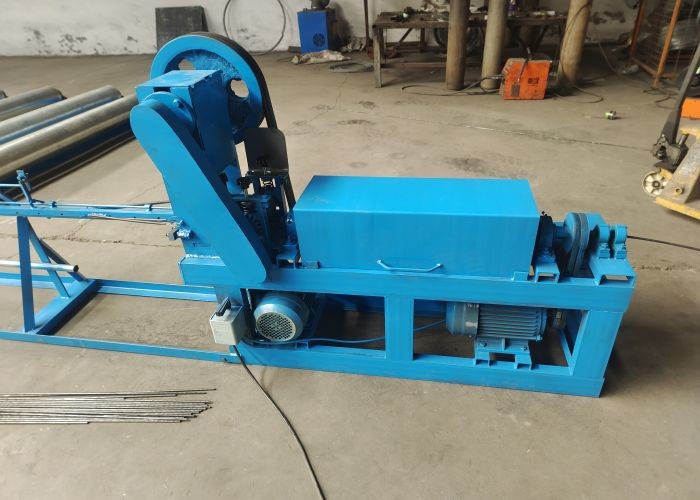

Cut Length 6m Rebar Straightening And Cutting Machine Size 5-8mm 1
