PLC Wire Mesh Welder Width Of Mesh 2.1m Hole Size 1/2 Inch
| Place of Origin | China |
|---|---|
| Brand Name | DIXUN |
| Certification | CE |
| Model Number | DX-DHW-5 |
| Minimum Order Quantity | One set |
| Packaging Details | The welded wire mesh machine is nude packing. Need one 20 feet container. |
| Delivery Time | 30 working days |
| Supply Ability | 10 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Welded Wire Mesh Machine | Welding Speed | 60--120 Times Per Min |
|---|---|---|---|
| Mesh Width | Max.1.2-2.5m | Voltage | 220V/380V/415V/440V |
| Control System | PLC | Mesh Type | Rolling Mesh |
| Hole Size | 12.5*12.5mm--75*75mm | Wire Diameter | 1.0--2.5mm |
| Capacity | 85KVA*6PCS | Motor | 4.0kw |
| Machine Weight | 3.9 Tons | Machine Dimension | 3200*1600*1700mm |
| High Light | PLC wire mesh welder,2.1m width wire mesh welder,1 2in automatic wire mesh welding machine |
||
Product Description
Width Of Mesh 2.1m Hole Size 1/2 Inch Welded Wire Mesh Machine
Introduction of Welded Wire Mesh Machine:
Automatic wire feeding, suitable for low carbon steel wire,the commonly used wires are galvanized wire, hot-dip galvanized wire, black iron wire.The machine box body has reasonable design, low noise, easy operation and adjustment of welding times.The welding mesh is characterized by flat mesh surface, uniform mesh, firm welding joints,stability and good corrosion resistance.
Features of Welded Wire Mesh Machine:
1. Both the longitude wire and cross wire is fed from wire coils automatically.
2. The raw material is suitable for low-carbon steel wire (black wire) and galvanized wire.
3. The middle cutter and sider cutters can be adjusted randomly to make two mesh rolls at the same time.
4. The welding time and welding current can be adjusted on the control panel to adjust the welding degree.
5. The welding transformers have 8 degrees and can be adjusted for different wire diameters.
6. The mesh roll length can be set by a counter switch on the control panel. (For example, if 25m mesh length, 25mm cross wire space, the number should set 1001.)
7. The mesh roll length can be set by the control panel.
8. The width and mesh size can be adjusted, and the dimensional accuracy is high, and can be arbitrarily adjusted within the specified range.
9. You can produce two rolls or three wire mesh at the same time, just adjust the cutter position.
Auxiliary Equipment
1. Mesh repairing table
2. Mesh repairing machine
Usage: re-weld the points who was miss machine and to hold the re-weld mesh with misoperation situatiowelding
3. Bobbin stand-off, 1 set
4. Wire rolling machine, 1 set
Technical Parameters of Welded Wire Mesh Machine:
| Type | DX-DHW-1 | DX-DHW-2 | DX-DHW-3 |
| Wire diameter | 0.4-0.65mm | 0.65-1.8mm/0.8-2mm | 1.0-2.2mm/1.2-2.5mm |
| Aperture/pitch | 1/4", 1/2" 6.25, 12.5mm |
1/2", 1", 2", 3", 4" 12.5, 25, 50mm |
1", 2", 3", 4" 25, 50, 75, 100mm |
| Mesh width | Max.1m, 1.2m | Max.1.2m,1.5m, 2m | Max.1.2m, 1.5m, 2m, 2.5m |
| Motor | 2.2kw | 2.2kw; 4kw | 4kw; 5.5kw |
| Welding speed | Max.75 rows/min | Max.120-180 rows/min | Max.80-120 rows/min |
| Transformer | 50kva*3 | 60kva*4;60kva*5, 60kva*7 | 70kva/80kva*5/6/7/8 |
| Weight | 1.5T | 2T, 2.5T | 2T, 2.5T, 3T, 3.5T |
Applications of Welded Wire Mesh Machine:
Welded wire mesh is widely used in industry, agriculture, construction, transportation, mining and other industries. Such as machine protective cover, animal and livestock fence, flower and tree fence, window guard fence, passage fence, poultry cage, home office food basket, paper basket and decoration.

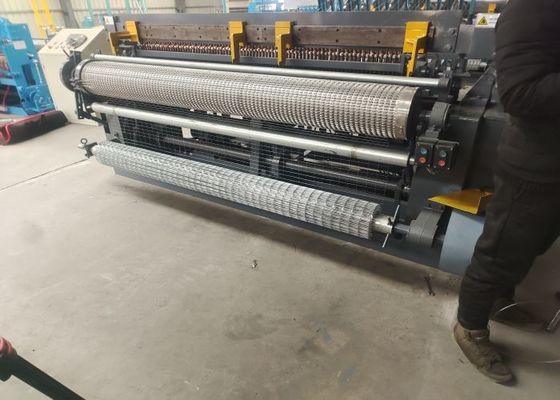

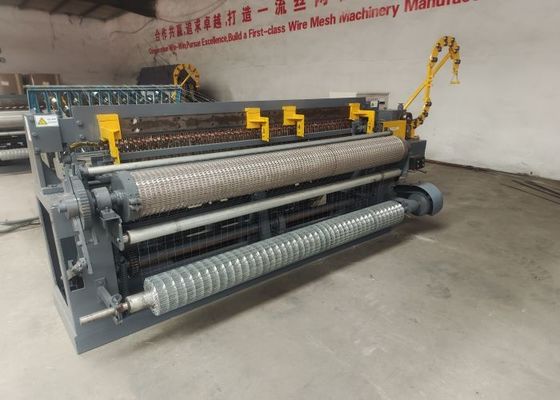

Photos of Welded Wire Mesh Machine:
