Hole Size 1/2 Inch Welded Wire Mesh Machine Chicken Cage Mesh Electric

Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-DHW-5
Minimum Order Quantity One set
Packaging Details Nude packing. Put into 20 feet container.
Delivery Time 30 working days
Supply Ability 10 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Electric Welded Wire Mesh Machine Wire Diameter 0.45-2.6mm
Welding Speed 60--120 Times Per Min Weight 4800KG
Mesh Width Max.1.2-2.5m Voltage 220V/380V/415V/440V
Type Fully Automatic Mesh Type Rolling Mesh
Line Wire Type Coil Wire Feeding Cross Wire Feeding Coil Wire Feeding
Hole Size 1/2 Inch*1/2 Inch Roll Length 100m
High Light

1/2 Inch welded wire mesh machine


Electric welded wire mesh machine


1/2Inch automatic wire mesh welding machine

Leave a Message
Product Description

Hole Size 1/2 Inch Chicken Cage Mesh Electric Welded Wire Mesh Machine



Introduction of Electric Welded Wire Mesh Machine:


1. Both of the line wire and cross wire are fed from wire coils automatically.


2. The Two side cutters can be adjusted to make mesh rolls at same time.


3. The welding time and welding current can be adjusted on the control panel to adjust the welding degree.


4. The welding transformers have 8 degrees and can be adjusted for different wire diameters.

For example, need to adjust voltage regulation to level six, inserted the handle as shown below:


5. The mesh roll length can be set by counter switch on the control panel. (For example, if 25m mesh length, 6mm cross wire space, the number should set 5001.)


6. About electric parts

New type machine use Delixi brand breaker, Schneider brand electric parts.

Old type machine use common brand electric parts, no inverter.


7. About the steel plate&bottom material

On the back of the new type machine, we use 1.5mm steel plate, on the bottom we use square steel; Old type machine use 0.2mm steel plate and angle iron, not stable.


8. About the motor and reducer

New type machine use Mengniu brand main motor & Guomao brand reducer, which are the best quality in China. The quality can be guaranteed.


Technical Parameters of Electric Welded Wire Mesh Machine:


Model DX-DNW-5 Wire diameter 0.45-2.6mm
Mesh opening size 5x10mm,15x20mm
Mesh width 1000mm Welding electrodes 201pcs
Welding speed 80-140 rows/min Welding transformer 95KVA*3pcs
Measurement 2.4*1.8*1.4m Machine weight 2.5T
Electric motor 4.0kw Labor cost 1 person


Applications of Electric Welded Wire Mesh Machine:


Electric welding mesh is made of high quality low carbon steel wire row welding, and then cold plating (electroplating), hot plating, PVC plastic coated surface passivation, plasticization treatment, flat mesh, uniform mesh, solid solder joints, local machining performance is good, stable, anti-corrosion, good corrosion resistance.


The use of electric welding mesh is very wide, mainly used in the following areas:


Building and civil engineering. Electric welding mesh is often used in the reinforcement of building structures, such as wall insulation anti-crack engineering, internal plaster hanging mesh, building external wall insulation system.
The breeding industry. Welding nets can be used as fences, such as cattle and sheep fences, pig nets, etc.
Agriculture. Electric welding mesh can be used for farm fences, corn granaries to store corn ears, seedbeds, etc.
Industry. Electric welding mesh is used for welding metal parts in machinery manufacturing, such as construction machinery, automobiles, ships, aircraft, etc.
Gardening and decorating. Electric welding mesh can be used to make flower POTS and flower stands, garden fences and so on.
Filtration and drainage. Electric welding mesh can be used to make screens and filtration equipment.
Security protection. Electric welding mesh can be used to make protective equipment and safety nets.
In addition, welding mesh can also be used for highway guardrail, sports site Seine, landscaping (such as retaining walls, urban landscape and park landscape, etc.), seismic or soil desertification reinforcement, slope protection, river control, coastal protection, reservoir, canal and pipeline renovation, rock rupture protection, bridge protection, etc.


Photos of Electric Welded Wire Mesh Machine:

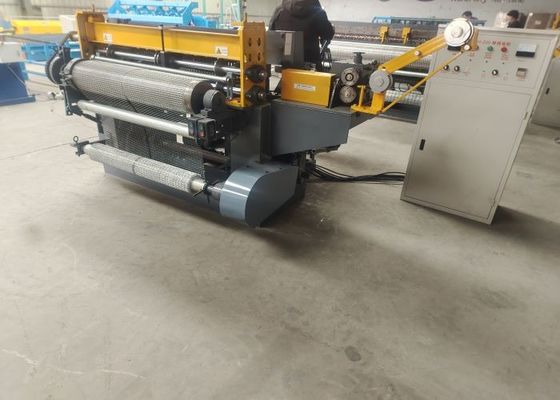

Hole Size 1/2 Inch Welded Wire Mesh Machine Chicken Cage Mesh Electric 0

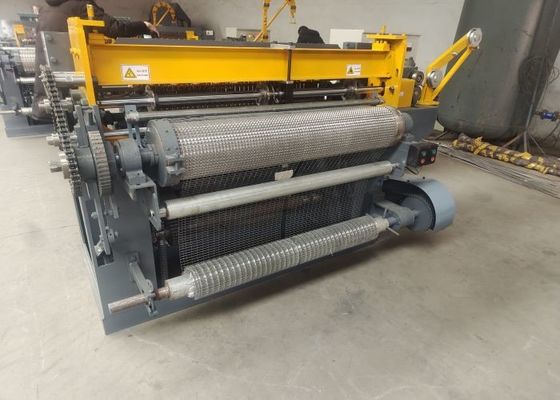

Hole Size 1/2 Inch Welded Wire Mesh Machine Chicken Cage Mesh Electric 1

Hole Size 1/2 Inch Welded Wire Mesh Machine Chicken Cage Mesh Electric 2
