Production Speed 130m / Min 3-6mm Steel Wire Straightening And Cutting Machine
| Place of Origin | China |
|---|---|
| Brand Name | DIXUN |
| Certification | CE & ISO 9001:2015 |
| Model Number | DX-HS3-6 |
| Minimum Order Quantity | One set |
| Packaging Details | The spare parts and control cabinet will be loaded in wooden box. The main machine is nude packing.It need one 40 ft container. |
| Delivery Time | 30 working days |
| Supply Ability | 5 sets per month |
Product Details
| Product Name | Wire Straightening And Cutting Machine | Motor Of Straighten Wire | 7.5kw |
|---|---|---|---|
| Motor Of Cutting Wire | 3.0kw | Production Speed | 100-130m Per Min |
| Machine Weight | 2.4T | Machine Dimension | 7.5*1.1*1.2m |
| Cut Wire Length | 1-6m | Cutting Error | 1mm |
| Load Wire Weight Of Rotary Plate Type Feeding Rack | 2T Wires | Required Floor Space | 10*3m |
| Highlight | 3-6mm steel wire straightening machine,130m/min wire cutting machine,industrial steel wire straightener cutter |
||
Product Description
Production Speed 130m / Min 3-6mm Steel Wire Straightening And Cutting Machine
Steel Wire Straightening And Cutting Machine Introduction
Compared with the ordinary steel wire straightening and cutting machine, the structure of high speed steel wire straightening and cutting machine is more reasonable, and the style also has a new concept, mainly because of a dynamic factor. High power with excellent machinery improves the output and quality of products.High speed steel wire straightening and cutting machine, whether it is gear, straightening wheel, pressing wheel, cutter, casting or other parts, should be more excellent in raw materials and more prominent in manufacturing accuracy.
Features of Steel Wire Straightening And Cutting Machine
1. This machine mainly consists of Rotary plate type feeding rack,Protection frame,Main machine, Store wire frame,Control cabinet and Control cabinet.
2. The machine structure is rational, it is stable and reliable, simple operation, high automation and good performance.
3. The cut length and wire diameter can be adjusted according to your requirement.
4. This machine only needs one worker to insert the wire into the straightening assembly, then the machine can straighten and cut wires automatically.
5. The straightening moulds are alloy material, can be used long time.
6. Straightening speed of 130 m/min, usually in 120 m/min work, straightening short steel bar below 2 m in low and medium speed work.
7. High shearing accuracy, cutting length error ±1mm.
8. High straightness, straightening steel straightness is less than or equal to 2 mm/m.
9. Suitable for straightening shear cold rolled round, cold rolled ribbed steel bar, hot rolled round, hot rolled ribbed steel bar.
10. Intelligent control: the machine adopts PLC control, touch screen operation, simple and reliable.
11. Low failure rate: due to the fine processing of parts, strict quality control, so after installation and debugging, under normal working conditions, can maintain trouble-free operation for a long time.
12. Advanced technology: this machine straightening, cutting and the world's advanced technology synchronization.
Advantages of Steel Wire Straightening And Cutting Machine
1. There is no error in the length of cut steel bar.
2. Double head pull type.
3. The next one meter of reinforcement is adjusted and pulled out.
4. Tungsten steel mould is used for construction wire.
5. The product wire adopts ball end die, and the steel bar will not damage the surface.
6. 3.0-6.0 mm is 90-110 m / min.
7. Within the industry, the calibration error is only ± 1 mm.
8. The operation of numerical control equipment is simple.
9. Stable and reliable quality,durable.
10. High efficiency and fast service
List of components of Steel Wire Straightening And Cutting Machine
| No | Components name | Quantity | Function |
| 1 | Rotary plate type feeding rack | 1pcs | To put the coil wire |
| 2 | Protection frame | 1pcs | Protection |
| 3 | Main machine | 1pcs | To straight and cut the wire |
| 4 | Store wire frame | 1pcs | Finished straight bars are stored and bundled here |
| 5 | Control cabinet | 1pcs | Operate and control the machine |
| 6 | Spare parts and tool kit | 1 pcs | Provide straightening block, cutter, tool barrel and other wearing parts and adjusting machine tools |
Technical Parameters of Steel Wire Straightening And Cutting Machine
| Model | DX-HS3-6 | Wire diameter | 3.0-6.0mm |
| Cut wire length error | 1mm | Cut wire length | 1-6m |
| Straighten wire motor | 7.5kw | Straightening speed | 100-130m per min |
| Cutting wire motor servo motor | 3.0kw | Cutting speed | 100-130m per min |
| Manpower | 1 person | Machine dimension | 7500*1100*1200mm |
| Required floor space | 10*3m | Store wire weight | 1T |
Applications of Steel Wire Straightening And Cutting Machine
The machine is widely used in high-speed railway, expressway, bridge tunnel, rail transit, underground pipe gallery, nuclear power, hydro power and other large-scale infrastructure construction and prefabricated buildings, steel processing and distribution center and other fields.

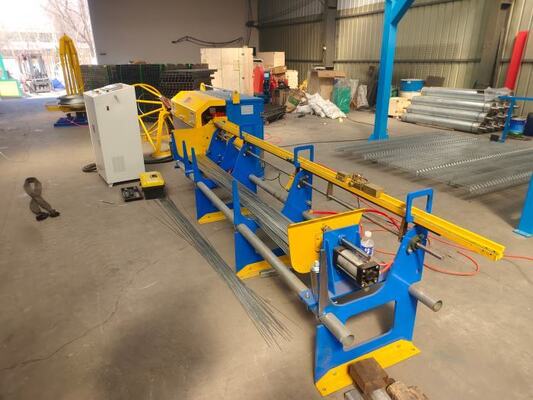

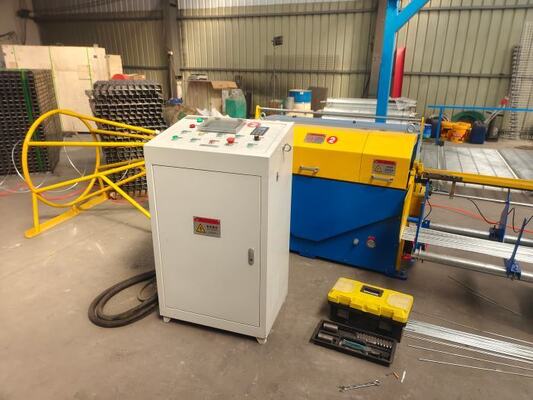

Photos of Steel Wire Straightening And Cutting Machine
