CNC Prison Defence CBT 60 CBT 65 Razor Barbed Wire Machine

CNC Prison Defence CBT-60 CBT-65 Blade Barbed Wire Production Line

Blade Barbed Wire Production Line Introduction:

Decoiler:

1. The decoiler adopts 100 thickened I-beam can effectively prevent machine tilt deformation.
2. The box is welded with 8mm carbon steel plate, which is durable.
3. The feeding head adopts high power laser cutting, accurate size, flexible support plate, easy to bear 2 tons.
4. Pure copper national standard motor, low noise, stable operation.
5. The distribution box adopts signal contact control system to realize automatic start and stop operation of the machine.

Punch Press Machine:

1. Open type inclinable press, stable operation, low noise, high pressure. Adapt to various types of blade barbed rope stamping.
2. Feeder roller is made of chromium 12 die steel through high temperature vacuum heat treatment process, with high hardness, wear resistance and long service life.
3. CNC stepping motor form feeding, easy to adjust, more accurate.
4. Integral centralized power distribution cabinet, to achieve feeding, stamping and receiving in one control, more flexible and convenient operation.
5. The mold is made of alloy steel, vacuum heat treatment, EDM cutting technology, smooth and sharp edge and durable.
6. Multi-purpose machine, change the mold to achieve BTO-10, BTO-11, BTO-12, BTO-18, BTO-22, BTO-25, BTO-28, BTO-30,CBT-60,CBT-65 and other types of blade barbed rope stamping.

Razor Strips Recoiling Machine:

1. 100 thickened I-steel bearing heavy, effectively prevent the machine working tilt deformation.
2. The box is welded with 8mm carbon steel plate, which is strong and durable, and can eliminate the impact of vibration on the spears when receiving material.
3. High speed steel wafer has high hardness, good flatness, neat material collection and no prickling.
4. Pure copper national standard motor, low noise, sufficient power.
5. Heavy load vector frequency converter control accurate, uniform speed, easy to operate.
6. Synchronous control frame can effectively prevent the phenomenon that the length of the blade is not consistent when the material is collected.

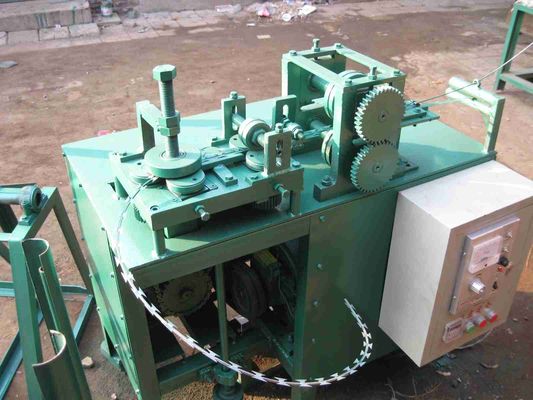

Wire Warpping Machine:

1. The wire wrapping machine track is made of white steel, wear-resistant, high precision and easy to adjust.
2. Wire rolling wheel and wire pressing wheel are made of bearing steel, with high hardness, good toughness and not easy to crack.
3. The wire wrapping wheel is made of chrome steel, no crack and no edge.
4. High power pure copper national standard motor, low noise, sufficient power.
5. The deceleration part adopts the guide bar form, the power transmission is direct, the loss is small, and the maintenance is free.
6. Automatic start-stop distribution cabinet, heavy load vector frequency converter control, smooth start, accurate counting, quick stop.
7. Adjustable diameter molding frame, the range of 250mm-1250mm free adjustment.
8. The filament wrapping machine is compact in structure, reasonable in design and multi-purpose in one machine. Can produce BTO-10, BTO-11, BTO-12, BTO-18, BTO-22, BTO-25, BTO-30, CBT-60, CBT-65 and other models of blade barbed rope.

Blade Barbed Wire Production Line Technical Parameters:

Blade Barbed Wire Production Line Applications:

Blade barbed wire has been widely used in industrial and mining enterprises, garden apartments, border posts, military fields, prisons, detention houses, government buildings and other national security facilities in many countries.

Blade Barbed Wire Production Line Packing:

Blade Barbed Wire Production Line Photos:
