Q195 Q235 PLC Cold Rolled Steel Wire Drawing Machine

Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-20000T
Minimum Order Quantity One set
Packaging Details The Steel Wire Drawing Machine is nude packing. Need 40 feet container to load.
Delivery Time 30 working days
Payment Terms L/C, T/T
Supply Ability 5 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Steel Wire Drawing Machine Control Technology Variable Frequency
Inlet Wire Diameter 14mm Finished Product Diameter 5-12mm
Production Capacity 120m/min Cutting Rebar Length 3-12m
Pyoff Wire Stand 2000kg Wire Rod Main Machine Motor 75kw
Rewinding Rebar Weight 1T Or 2T Total Power 660kw
Installation Length 40*4m Total Weight 5.8T
High Light

Q235 Steel Wire Drawing Machine

,

Q195 Steel Wire Drawing Machine

,

Cold Rolled Rod Drawing Machine

Leave a Message
Product Description

PLC Variable Frequency Control Two Ribbed Cold Rolled Steel Wire Drawing Machine





Two Ribbed Cold Rolled Steel Wire Drawing Machine Introduction:


The ordinary hot rolled round steel bar (Q235 or 300 material) through the cold rolling, so that the cold rolled ribbed steel bar extension, much stronger. Can fully meet the CRB600 CRB800H high ductility bar requirements. The application range of cold rolled ribbed bars is extended.



Two Ribbed Cold Rolled Steel Wire Drawing Machine Features:



1. The two ribbed cold rolled steel wire drawing machine adopts PLC touch screen intelligent control system, which makes the operation more simple, intelligent, durable, green and environmental protection.
2. The Two Ribbed Cold Rolled Steel Wire Drawing Machine adopts the world's most advanced frequency conversion and servo technology and the self-owned frequency conversion control technology. Effective protection of the transmission and transformation system and equipment from damage, can prolong the service life of the machine, can save 40% electricity, line speed can reach 120-180 meters per minute, improve the production efficiency of more than 40%.
3. The Two Ribbed Cold Rolled Steel Wire Drawing Machine adopts the self-developed reducer as the patented product, the fastest speed in China, simplifies the structure of the equipment, and makes the equipment more reasonable and compact. Effectively improve the transmission efficiency of more than 30%.
The stability of the equipment is improved by more than 60%, which effectively improves the production efficiency of the equipment.
4. The Two Ribbed Cold Rolled Steel Wire Drawing Machine is equipped with super audio induction heating system, using the principle of spiral induction heating, so that the steel bar heated evenly, mechanical indication is stable, the surface of the blue protective layer so that the steel bar corrosion and rust.
5. The straightening machine adopts multi-wheel synchronous control technology, which has good straightening effect and little damage to the surface of steel bar.
6. The cutting machine adopts independent research and development frequency conversion servo flying shear control system, easy to operate, high degree of numerical control, low failure rate.Small cutting error. The cutting error is within 5 mm.



Two Ribbed Cold Rolled Steel Wire Drawing Machine Technical Parameters:



Model DX-20000T DX-30000T DX-50000T
Control technology Variable frequency Touch screen|+PLC+encoder Touch screen|+PLC+encoder
Max inlet wire rod 14mm 12mm 18mm
Outlet rebar 5-12mm 5.5-11mm 6-16mm
Production speed 120m/min 180m/min 190m/min
Cutting rebar length 3-12m 1-12m 1-12m
Rebar falling way Automatic Automatic  Automatic
Rewind rebar weight 1 ton or 2tons 1 ton or 2 tons 1 ton or 2 tons
Rewind rebar machine Automatic Automatic Automatic
Method of adjust speed Variable frequency CNC CNC
Cutting rebar error 5mm 3mm 3mm
Cutting rebar method variable frequency servo motor  servo motor
Main machine motor 75kw 110kw 160kw
Heat power 600kw 800kw 1000kw
Total power 675kw 910kw 1160kw
Cold rolled times 2+1 2+1 2+1
Straighten rebar method direct straighen direct straighen direct straighen
Labor cost 2 persons 2 persons 2 persons
Installation length 40*4m 60*5m 90*5m
Raw material Q195 Q235 Q195 Q235 Q195 Q235



Two Ribbed Cold Rolled Steel Wire Drawing Machine Applications:



The two ribbed rebar widely used in construction, house construction,bridge construction, welded mesh.



Two Ribbed Cold Rolled Steel Wire Drawing Machine Packing:



Q195 Q235 PLC Cold Rolled Steel Wire Drawing Machine 0

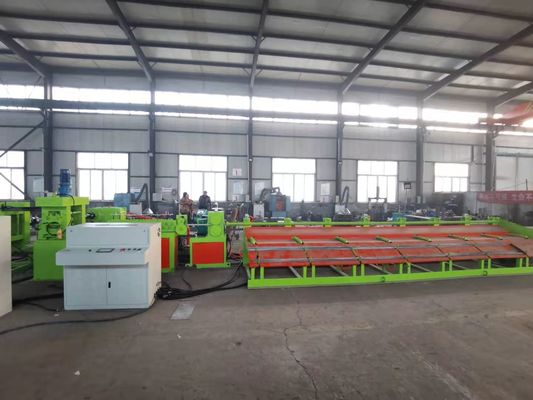

Two Ribbed Cold Rolled Steel Wire Drawing Machine Photos:



Q195 Q235 PLC Cold Rolled Steel Wire Drawing Machine 1

Q195 Q235 PLC Cold Rolled Steel Wire Drawing Machine 2

Q195 Q235 PLC Cold Rolled Steel Wire Drawing Machine 3
