Inlet 6.5mm Metal Drawing Machine Motor 15kw 6 Drums Pulley
| Place of Origin | China |
|---|---|
| Brand Name | DIXUN |
| Certification | CE |
| Model Number | DX-LSJ-650 |
| Minimum Order Quantity | One set |
| Packaging Details | The steel wire drawing machine is nude packing. Need one 20ft container to ship. |
| Delivery Time | 30 working days |
| Supply Ability | 10 sets per months |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Steel Wire Drawing Machine | Inlet Diameter | 6.5mm |
|---|---|---|---|
| Speed | 180m/min | Wire Material | Low Carbon Steel |
| Outlet Diameter | 2.8mm | Motor Power | 15kw*6pcs |
| Weight | 3500kg | Coil Wire Weight | 500kg |
| Voltage | 380/415/440/220 | Warranty | 1 Year |
| Condition | New | Drawing Material | Low Carbon |
| High Light | inlet 6.5mm metal drawing machine,motor 15kw metal drawing machine,low carbon steel drawing machine |
||
Product Description
Inlet Wire 6.5mm Motor 15kw 6 Drums Pulley Steel Wire Drawing Machine
Pulley Steel Wire Drawing Machine Introduction:
High Speed & Low Noise Pulley Steel Wire Drawing Machines are with the simple structure, easy operation, economy cost and low noise but with fast wire drawing speed machineries. It is with frequency control, energy saving, steady production. Suitable for drawing detailed specifications in a variety of metal wire, especially suitable for drawing low carbon steel wire, galvanized wire, stainless steel wire, aluminum wire rod and copper wire, etc.The steel wire drawing machine consists of main reduction box.die casing, wheel frame, and electrical control system. The drawing drums are driven by JZT series motor, with gear coupling runs changeful gears to reduce speed. The drawing blocks are vertically fixed in sealed box body. The gear pairs are lubricated with oil.
Working flows and automation:
Wire pay off →Descaling→Wheel Type Wire Drawing Machine→Automatic take-up.
Pulley Steel Wire Drawing Machine Features:
1. Easy in installation and maintation.
2. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3. Running in a high automatization and intellectualization,no pollution
4. As the use of the frequency technology, changes in the larger context of parts of the compression ratio to meet the wide range of technology and high speed drawing.
5. Good cooling system, final wire quality is very good.
Pulley Steel Wire Drawing Machine technical Parameters:
| Type | 560 | 550 | 450 | 350 |
| Material Intensity | 110kg/mm2 | 120kg/mm2 | 128kg/mm2 | 140kg/mm2 |
| Max. Dia. Of Inlet Wire | 6.5mm-4.4mm | 6.5mm | 4mm | 2.6-1.5mm |
| Min. Dia. Of Outlet Wire | 2.6mm-1.8mm | 2.2mm | 1.6mm | 1.2-0.8mm |
| Drum | 6 | 7 | 4 | 3 |
| Max. average condensation | 0.3 | 20% | 20% | 21% |
| Total Condensation | 78-88.5% | 78% | 77.90% | 78% |
| Max. Speed of Block | 245m/min | 260m/min | 280m/min | 200m/min |
| Total Power | 22/30kw | 18.5/22kw | 11/15kw | 5.5/7.5kw |
Guarantee and after-service:
1. Guarantee time:one year since machine was at buyer' factory within 12 months against B/L date
2. Within guarantee time, if any components are broken under normal condition, we can change for free.
3. We can send our best technician to buyer's factory for installation, debugging and training.
4. Complete installation instructions, circuit diagram, manual operations and machine layout.
5. Technical support by e-mail.
Pulley Steel Wire Drawing Machine Applications:
Low Carbon steel wire product used in mesh net, steel fiber, nail & staple making, construction, agriculture & furniture field, etc. And other steel wire product used in prestressing wire, PC wire, spring, steel rope wire, steel cord & Bead wire for tyre, etc.

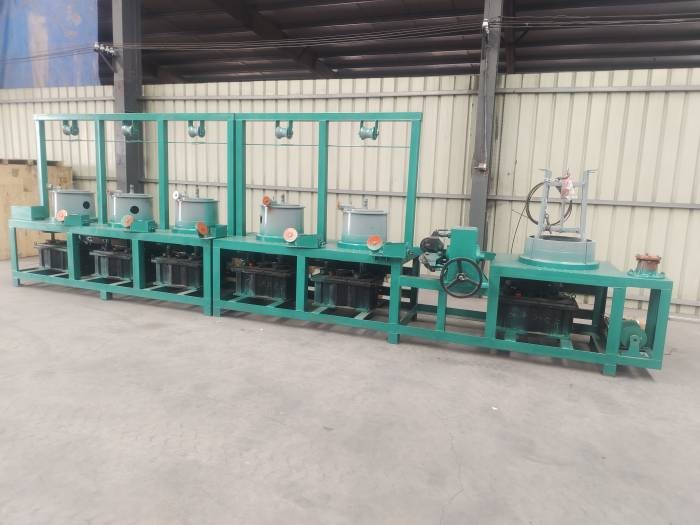

Photos of Pulley Steel Wire Drawing Machine:
