Outlet 2.8mm Steel Wire Drawing Machine Speed 280m Per Min Plc

Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-LSJ-650
Minimum Order Quantity One set
Packaging Details The wire drawing machine is nude packing. Need one 20ft container to ship.
Delivery Time 30 working days
Supply Ability 10 sets per months

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Steel Wire Drawing Machine Inlet Diameter 6.5mm
Speed 280m/min Wire Material Low Carbon Steel
Outlet Diameter 2.8mm Motor Power 15kw*6pcs
Weight 3500kg Coil Wire Weight 500kg
Voltage 380/415/440/220 Warranty 1 Year
Condition New Drawing Material Low Carbon
High Light

2.8mm steel wire drawing machine

,

plc steel wire drawing machine

,

speed 280m/min metal drawing machine

Leave a Message
Product Description

Outlet Wire 2.8mm Speed 180m Per Min PLC Wire Drawing Machine





Wire Drawing Machine Introduction:



Wire Drawing Machines are with the simple structure, easy operation, economy cost and low noise but with fast wire drawing speed machineries. It is with frequency control, energy saving, steady production. Suitable for drawing detailed specifications in a variety of metal wire, especially suitable for drawing low carbon steel wire, galvanized wire, stainless steel wire, aluminum wire rod and copper wire, etc.The steel wire drawing machine consists of main reduction box.die casing, wheel frame, and electrical control system. The drawing drums are driven by JZT series motor, with gear coupling runs changeful gears to reduce speed. The drawing blocks are vertically fixed in sealed box body. The gear pairs are lubricated with oil.

Working flows and automation:


Wire pay off →Descaling→Wheel Type Wire Drawing Machine→Automatic take-up.



Wire Drawing Machine Features:



1. Easy in installation and maintation.
2. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3. Running in a high automatization and intellectualization,no pollution
4. As the use of the frequency technology, changes in the larger context of parts of the compression ratio to meet the wide range of technology and high speed drawing.
5. Good cooling system, final wire quality is very good.



Wire Drawing Machine technical Parameters:



Type 560 550 450 350
Required floor space 20*5m 20*5m 20*5m 20*5m
Max. Dia. Of Inlet Wire 6.5mm-4.4mm 6.5mm 4mm 2.6-1.5mm
Min. Dia. Of Outlet Wire 2.6mm-1.8mm 2.2mm 1.6mm 1.2-0.8mm
Drum 6 7 4 3
Max. average condensation 0.3 20% 20% 21%
Total Condensation 78-88.5% 78% 77.90% 78%
Max. Speed of Block 245m/min 260m/min 280m/min 200m/min
Total Power 22/30kw 18.5/22kw 11/15kw 5.5/7.5kw



Wire Drawing Machine Applications:



Low Carbon steel wire product used in mesh net, steel fiber, nail & staple making, construction, agriculture & furniture field, etc. And other steel wire product used in prestressing wire, PC wire, spring, steel rope wire, steel cord & Bead wire for tyre, etc.



Photos of Steel Wire Drawing Machine:

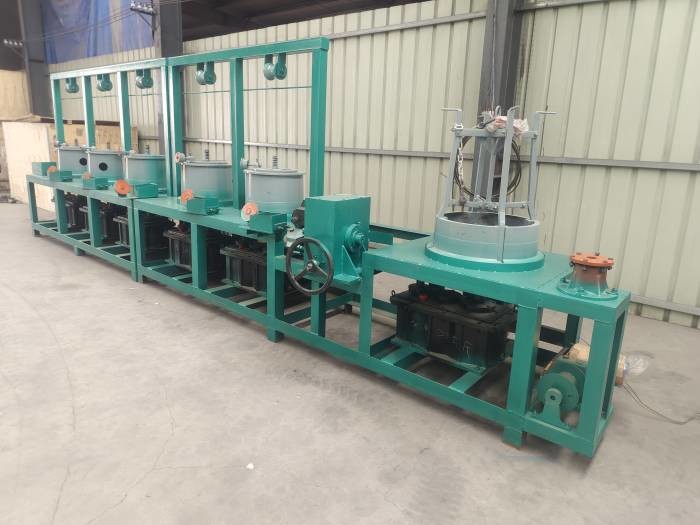

Outlet 2.8mm Steel Wire Drawing Machine Speed 280m Per Min Plc 0

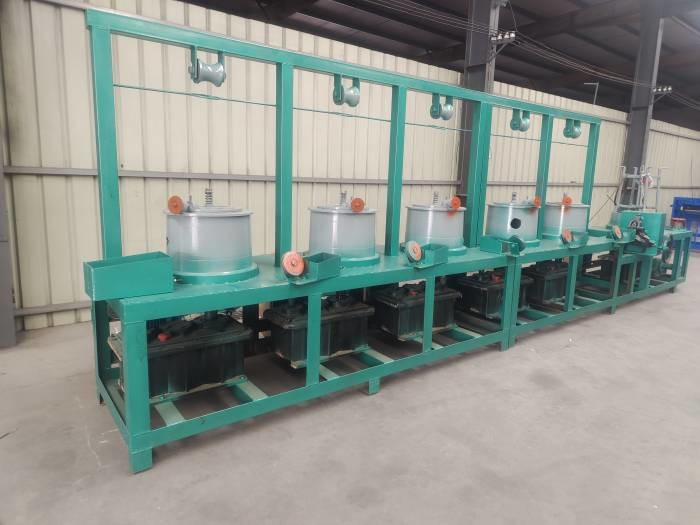

Outlet 2.8mm Steel Wire Drawing Machine Speed 280m Per Min Plc 1

Outlet 2.8mm Steel Wire Drawing Machine Speed 280m Per Min Plc 2



Bar Pointer



Outlet 2.8mm Steel Wire Drawing Machine Speed 280m Per Min Plc 3
