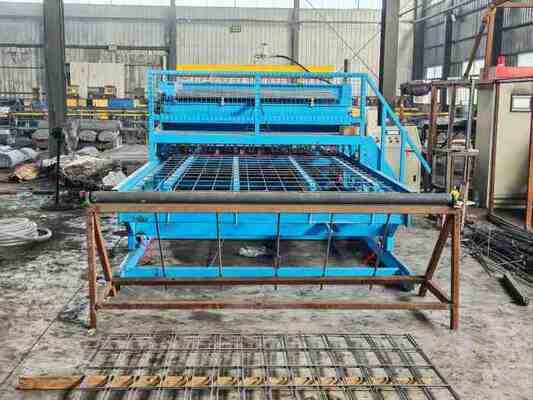

Transformer 160kva Mesh Width 2.4m Construction Mesh Panel Welding Machine

Transformer 160kva Mesh Width 2.4m Construction Mesh Panel Welding Machine

Construction Mesh Panel Welding Machine Introduction

The construction mesh panel welding machine adopts power electronic synchronous control technology, welding time and separate control welding are managed by automatic control system, human-machine interface, intelligent operation, humanization. Separate the welding transformer to reduce the requirement of power transformer.

Construction Mesh Panel Welding Machine Features

1. Control system adopt Delta PLC control system, combined with Weinview touch screen, can directly input and display equipment operating parameters, intelligent and easy to operate.

2. Weft wire hopper: the stepper motor drives the disk-type device to drop wires automatically, and the hopper has a large capacity of storing wires max up to 1.5 tons. When there is no cross wire in the hopper, the equipment will stop running automatically.

3. Sending longitudinal wire feeding mechanism: servo motor is equipped with planetary reducer to drive pneumatic compression wire feeding device to send wire to the welding position. The equipment is automatically welding.

4. Mesh pulling mechanism: servo motor supporting planetary reducer drives pneumatic clamping mesh pulling device to ensure the stability of the system and the standard size of the welded mesh.Automatic reciprocating mesh drawing can realize the production of lengthening size mesh.

5. Water-cooled welding electrodes and a new type of special water-cooling transformer welding mesh with epoxy resin are adopted, which is smaller in size and higher in safety and reliability than traditional transformers.

6. Low-voltage electrical appliances are made of Schneider, well-known brands to ensure the efficient and stable operation of the equipment.

7. The machine will stop working automatically if there is no cross wires in hopper device.

8. When there is malfunction on the machine, the PLC will alarm, which is convenient to adjust the machine.

9. The cross wire space adjustment adopts PLC micro-computer control, set on the touch screen.Very easy and convenient to operate.

10.The mesh pulling system is automatically calculated in cycle.No need manual setting. The mesh pulling car can be back to origin automatically after finishing the pulling mesh.

Construction Mesh Panel Welding Machine Advantages

1. The cross and line wire are pre-cut wire , We can also produce both cross and line wires using wire rod feeding.
2. Mechanical feeding wire, pulling mesh, and pushing mesh all use servo motors to ensure speed and accuracy.
3. The cross wire of wire mesh welding machine feeding from the automatic feeding hopper which capacity is more over two times than the traditional hopper.
4. The new wire mesh welding machine add the bear wire mesh and carry equipment that makes the working more convenience .
5. The welding part of wire mesh welding machine is used the springiness input wire trunking that makes the welding copper use for long time.
6. This wire mesh welding machine adopts synchronous control technique. The cent control and welding time are composed of PLC program system. The input front-panel is touch screen , the operate is more intelligent and reasonable.

Construction Mesh Panel Welding Machine Technical Parameters

Construction Mesh Panel Welding Machine Applications

Building mesh is a commonly used building material, and it has a wide range of applications in construction and other fields. The main uses of building mesh are as follows:

Construction Industry: Building mesh is widely used in the construction industry. It can be used to manufacture precast reinforced concrete components, as well as for cast-in-place concrete structural components. For instance, building mesh can be applied to the foundations, floors, floor slabs, eaves, walls, brick belts, etc. of multi-story and high-rise industrial and civil buildings. Moreover, building mesh can also be used for floor heating and can be employed as floor heating mesh.

Municipal construction: In municipal construction, the building mesh can be used for the pavement layer of elevated overpasses, the concrete surface of squares, concrete pipes, fences, and slope protection, etc. Its application can enhance the quality and efficiency of the project.

Transportation industry: The application of building mesh in the transportation industry mainly includes highways, concrete pavement of soft foundation sections, bridge deck pavement, anti-cracking coating on bridge piers, concrete pavement of toll collection squares, railway platforms, station squares and cargo concrete pavements, airport runways, cargo yards and squares, concrete pavements of tunnels, docks and ports, etc.

Aquaculture: In the aquaculture industry, building mesh sheets can be used to create netting for cultivating plants, flower racks, etc., and can also be used to make enclosures and guardrails for breeding animals.
Other industries: The building mesh can also be used in water conservancy, power generation and coal mining industries for water conservancy facilities, power dam foundations, protective nets, etc., as well as in other industries for flood control facilities, slope reinforcement, and collapse protection.

In conclusion, the applications of building mesh are extremely wide-ranging. It not only plays a significant role in the construction industry, but also has important applications in various fields such as municipal construction, transportation industry, and animal husbandry.

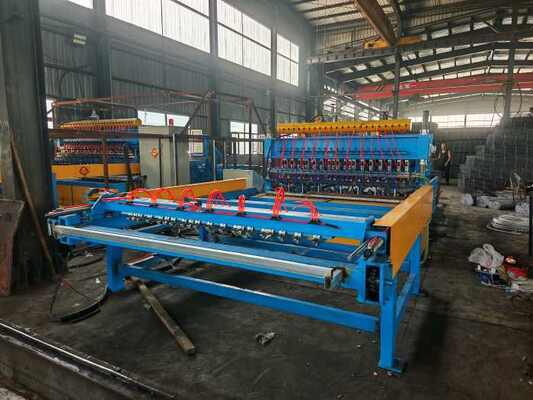

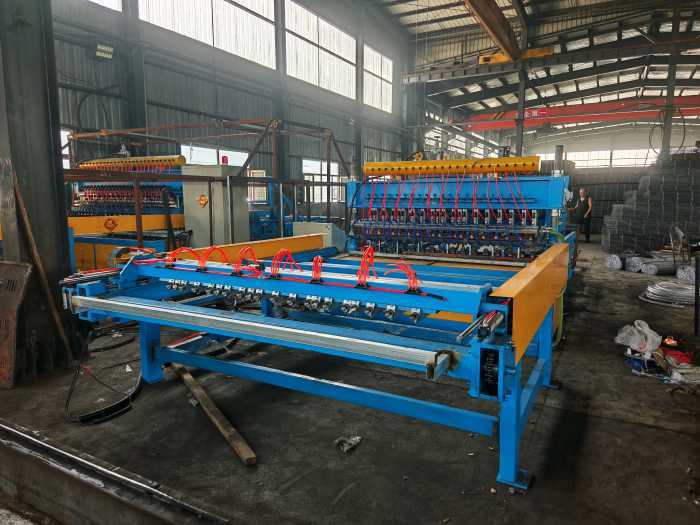

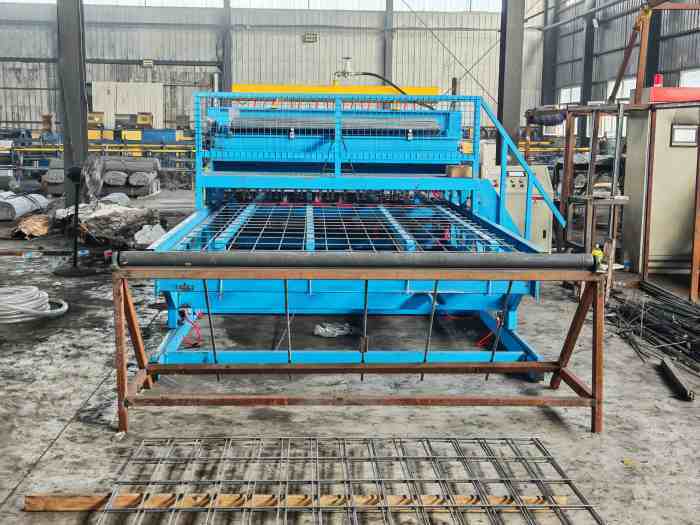

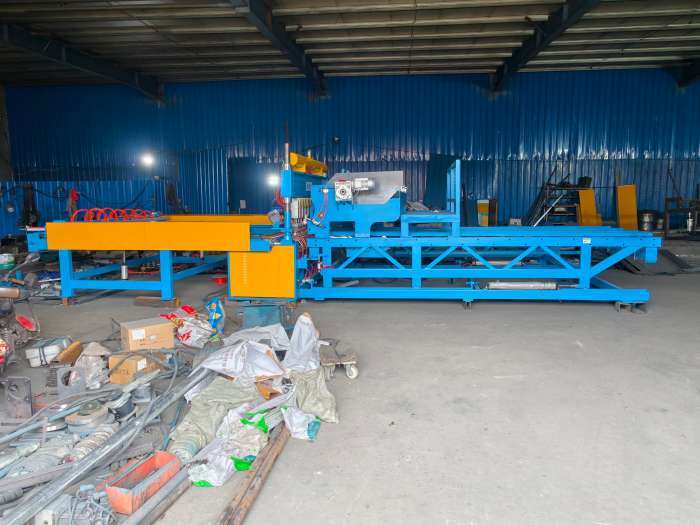

Construction Mesh Panel Welding Machine Photos
