CE Servo Motor 6mm Construction Mesh Welding Machine
| Place of Origin | China |
|---|---|
| Brand Name | DIXUN |
| Certification | CE |
| Model Number | DX-GWCD-1200 |
| Minimum Order Quantity | One set |
| Packaging Details | The Construction Welded Mesh Production Line is nude packing. One set machine need one 20 feet container. |
| Delivery Time | 30 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 6 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Construction Welded Mesh Welding Machine | Wire Diameter | 3.0-6.0mm |
|---|---|---|---|
| Voltage | 380V/440V/415V/220V | Welding Speed | 75-85 Times/min |
| Control System | PLC Control | Welding Mesh Width | 1200mm 1500mm 2000mm 2500mm |
| Line Wire Space | 50-300mm | Cross Wire Space | 50-300mm |
| Cutting Mesh System | Automatic Cutting Mesh | Falling Mesh System | Automatic Falling Mesh |
| Line Wire Form | Coil Wire | Cross Wire Form | Pre-cut |
| High Light | 6mm Construction Mesh Welding Machine,CE Construction Mesh Welding Machine,6mm welding machine panasonic |
||
Product Description
Panasonic Servo Motor Schneider Switch Construction Welded Mesh Production Line
Construction Welded Mesh Production Line Introduction:
1. The construction welded mesh production line adopt PLC control, touch screen operation, man-machine interface, simple operation. The construction welded mesh production line need two-person operation, fast welding speed, 75-85 times/min. Increase production capacity. To make profit for clients.
3. Pulling mesh device, Panasonic servo motor pulling mesh, grid control is more accurate and stable than stepping motor pulling mesh. The line wire is feeding from coil wire. The cross wire is feeding pre-cut. Cross wire hopper, stepper motor control weft wire hopper. The cross wire hopper device can load 100 kg wires. Save labor strength.
4. Brand configuration: Mitsubishi servo PLC, motor, driver, Schneider contactor, Delta inverter, Velon touch screen and so on.
5. Touch screen input parameters, one button switch, fault display, easy maintenance. All electrical parts of the equipment are customized according to customer requirements.
6. The construction welded mesh production line is equipped with automatic cutting mesh machine. The cutting mesh length can be adjustable by the control cabinet. Input the parameters by the touch screen. Any mesh size can be mde.
7. The suitable material: galvanized wire, low carbon steel wire, iron wire. The construction welded mesh production line need electrical transformer need at least 120KVA to supply running. And the distance from the construction welded mesh production line to the electrical transformer within 80 meters.
Construction Welded Mesh Production Line Technical Parameters:
| Model | DX-GWCD-1200 | DX-GWCD-1500 | DX-GWCD-2000 | DX-GWCD-2500 |
| Wire diameter | 3.0-6.0mm | 3.0-6.0mm | 3.0-6.0mm | 3.0-6.0mm |
| Mesh width | 1200mm | 1500mm | 2000mm | 2500mm |
| Line wire space | 50-300mm | 50-300mm | 50-300mm | 50-300mm |
| Cross wire space | 50-300mm | 50-300mm | 50-300mm | 50-300mm |
| Mesh length | Max. 6m | Max. 6m | Max. 6m | Max. 6m |
| Welding electrode | 24pcs | 31pcs | 40pcs | 48pcs |
| Welding transformer | 160kva*3pcs | 160kva*4pcs | 160kva*5pcs | 160kva*6pcs |
| Main motor power | 4.0kw | 4.0kw | 5.5kw | 5.5kw |
| Control system | PLC | PLC | PLC | PLC |
| Frequency converter | Delta China | Delta China | Delta China | Delta China |
Construction Welded Mesh Production Line Applications:
Application of construction welded mesh in transportation industry: expressway, soft foundation section concrete pavement, bridge deck pavement, bridge pier surface crack prevention, toll plaza concrete ground, railway platform, station square and cargo concrete ground, concrete ground of airport runway, freight yard and square, tunnel lining, wharf, port, multi-storey and high-rise industrial and civil housing building (foundation, floor, floor, eaves, wall, brick belt network, etc.) can also be used for the floor heating network when laying;
Construction Welded Mesh Production Line Packing:

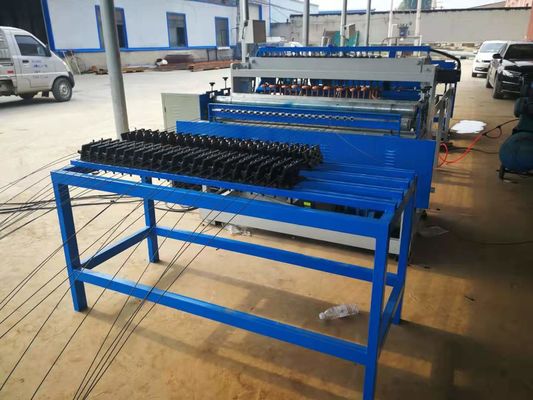

Construction Welded Mesh Production Line Photos:
