PLC Automatic Falling 1200mm Steel Bar Mesh Welding Machine

Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-GWCD-2000
Minimum Order Quantity One set
Packaging Details The Construction Mesh Panel Production Line is nude packing. Need one 40 feet container.
Delivery Time 30 working days
Payment Terms L/C, T/T
Supply Ability 6 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Construction Mesh Welding Machine After-sales Service Provided Engineers Available To Service Machinery Overseas,Field Installation,Video Technical Support
Voltage 380V/440V/415V/220V Weight 4.5 T
Dimensions 7000mm*2800mm*1700mm Rated Duty Cycle 50%
Current 250A Welding Speed 75-85 Times/min
Mesh Width Max.1.2 Customize Control System PLC+touch Screen
Material Galvanized Wire Iron Wire Line Wire Space 50-200mm
Cross Wire Space 50-200mm Labor Required Two Persons
Highlight

1200mm Steel Bar Mesh Welding Machine

,

100ms Steel Bar Mesh Welding Machine

,

1200mm welding rod making machine

Leave a Message
Product Description

Mesh Width 1200mm Automatic Falling Mesh Construction Mesh Panel Production Line





Construction Mesh Panel Production Line Introduction:



1. The construction mesh panel production line is one complete production line to make building mesh. The construction mesh panel production line is equipped with automatic cutting mesh machine. The cutting mesh length can be adjustable according to your requirement.

2. This construction mesh panel production line adopts electrical & electronic synchronous control technique, both separate-phases welding and welding time composed of digital and integrated electric circuit, more intelligent and rational, press at one time, separate welding.

3. The line wire is fed from coil wires,the cross wire is pre-cut. which is fed from hopper driven by stepping motor. The line wire through the line wire straighten device. make the galvanized wire or steel wire straighten. Then the line wire is feed under the welding electrodes. To start welding.
4. The welding speed is fast. The max.welding speed up to 85 times per min. Very high production speed.

5. The cutting mesh panel machine is controlled by the control cabinet. You set the cut mesh length by touch screen in the control cabinet. The cutting mesh machine will cut the mesh panel as per your required cutting mesh length. After cutting mesh panel. The mesh panel will fall into the collect mesh car. The worker pull out the collect mesh car when the mesh panel is full.

6. The pulling mesh system is controlled by the servo motor. The pulling mesh system is also controlled by air cylinder. Make sure the accurate of pull mesh size.

7. Suitable material for the construction mesh panel production line: galvanized wire,iron wire.steel wire.

8. The construction mesh panel production line need electrical transformer at least 120KVA to supply working.



Construction Mesh Panel Production Line Technical Parameters:



No. Item Specification
1 Welding Wire Diameter Φ2.5-6.0 (mm)
2 Cross Wire Space 50-250mm (adjustable by touch screen)
3 Line Wire Space 50-250mm (adjustable by manual measure)
4 Mesh Width Max.1200mm customized
5 Finished Products construction mesh panel
6 Number of Electrodes 24pcs
7 Welding Speed 75-85times/min
8 Rated Voltage 220V,380V,415V,440V 50HZ or customized
9 Rated Power 160KWA*3(Water cooling system)
10 Main Motor 4.0 KW (Electromagnetic Brake Motor)
11 Welding Time 10ms-100ms
12 Welding Way By Control Silicon Electric Resistance Weld
13 Pressure Mode Adjust Spring Pressure
14 Weight About 3.5 T
15 Overall Dimension 6500*1900*1700m



Composition of Construction Mesh Panel Production Line:



No. Name of each part Quantity/Set
1 Main Mesh Welding Machine 1
2 Cross Wire Automatic Falling Hopper 1
3 Servo Motor Pulling Mesh Device 1
4 Operation Control Cabinet 1
5 Wire Straightening and Cutting Machine 2
6 Level Spare Parts Box 1
7 Water Circle Pump 1
8 Repairing Mesh Machine 1
9 Cooling Water System 1
10 Installing Tool 1
11 Equipment Operation and Maintenance Manual 1



Construction Mesh Panel Production Line Applications:



The construction mesh panel for municipal construction: viaduct facade pavement, square concrete overhead, concrete pipe, fence, slope protection. Water conservancy and power coal: water conservancy equipment, dam foundation, protective net, etc.
The construction mesh is used in other fields: flood control equipment, slope reinforcement, anti - collapse protection, feeding, animal husbandry.



Construction Mesh Panel Production Line Packing:



PLC Automatic Falling 1200mm Steel Bar Mesh Welding Machine 0

PLC Automatic Falling 1200mm Steel Bar Mesh Welding Machine 1

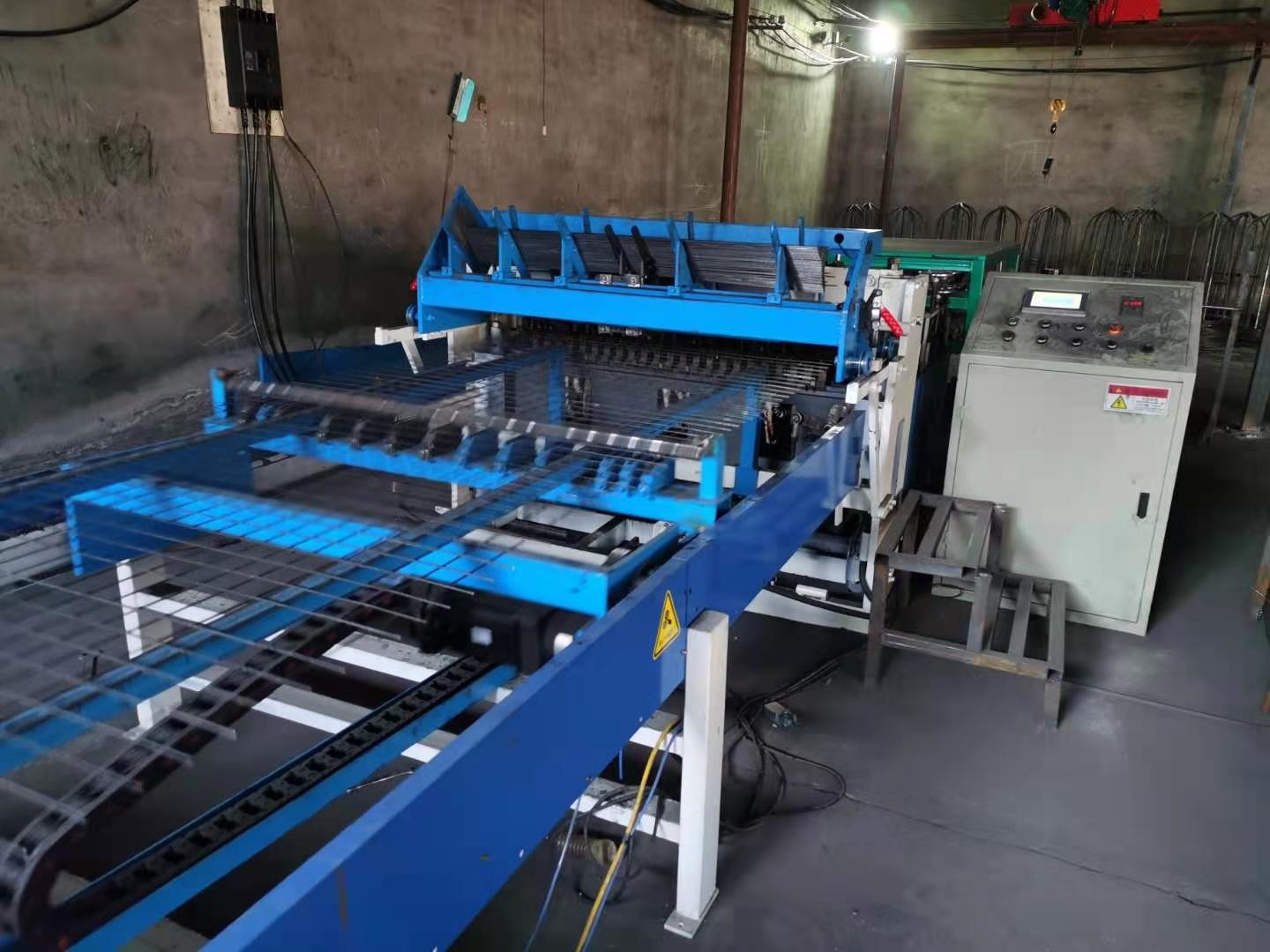

Construction Mesh Panel Production Line Photos:
