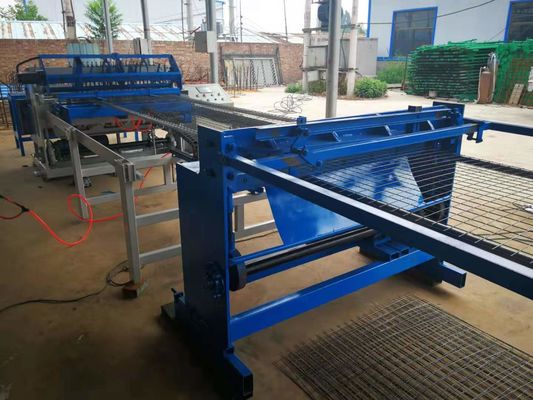

Pre Cut Mitsubishi 1.2m Reinforced Mesh Welding Machine
| Place of Origin | China |
|---|---|
| Brand Name | DIXUN |
| Certification | CE |
| Model Number | DX-GWCD-1200 |
| Minimum Order Quantity | One set |
| Packaging Details | The Construction Welded Mesh Welding Machine is nude packing. One set machine need one 20 feet container. |
| Delivery Time | 30 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 6 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Construction Welded Mesh Welding Machine | Wire Diameter | 3.0-6.0mm |
|---|---|---|---|
| Voltage | 380V/440V/415V/220V | Welding Speed | 75-85 Times/min |
| Control System | PLC Control | Welding Mesh Width | 1200mm 1500mm 2000mm 2500mm |
| Line Wire Space | 50-300mm | Cross Wire Space | 50-300mm |
| Cutting Mesh System | Automatic Cutting Mesh | Falling Mesh System | Automatic Falling Mesh |
| Line Wire Form | Coil Wire | Cross Wire Form | Pre-cut |
| Welding Transformer | 160kva*3pcs | Welding Electrode | 24pcs |
| High Light | 1.2m Reinforced Mesh Welding Machine,Mitsubishi Reinforced Mesh Welding Machine,1.2m mesh welding machine |
||
Product Description
Mesh Width 1.2m Building Mesh Automatic Construction Welded Mesh Welding Machine
Automatic Construction Welded Mesh Welding Machine Introduction:
1. The line wire is feeding from coil wire. The cross wire is feeding pre-cut.
2. The Automatic Construction Welded Mesh Welding Machine adopt PLC control, touch screen operation, man-machine interface, simple operation.
3. Two-person operation, fast welding speed, 75-85 times/min
4. Pulling net device, Mitsubishi servo motor pulling net, grid control is more accurate and stable than stepping motor pulling net.
5. Weft wire hopper, stepper motor control weft wire hopper, automatic blanking.
6. Brand configuration: Mitsubishi servo PLC, motor, driver, Schneider contactor, Delta inverter, Velon touch screen and so on.
7. Touch screen input parameters, one button switch, fault display, easy maintenance.
8. All electrical parts of the equipment are customized according to customer requirements.
9. The Automatic Construction Welded Mesh Welding Machine is equipped with automatic cutting mesh machine. The cutting mesh length can be adjustable by the control cabinet. Input the parameters by the touch screen. Any mesh size can be mde.
Automatic Construction Welded Mesh Welding Machine Technical Parameters:
| Model | DX-GWCD-1200 | DX-GWCD-1500 | DX-GWCD-2000 | DX-GWCD-2500 |
| Wire diameter | 3.0-6.0mm | 3.0-6.0mm | 3.0-6.0mm | 3.0-6.0mm |
| Mesh width | 1200mm | 1500mm | 2000mm | 2500mm |
| Line wire space | 50-300mm | 50-300mm | 50-300mm | 50-300mm |
| Cross wire space | 50-300mm | 50-300mm | 50-300mm | 50-300mm |
| Mesh length | Max. 6m | Max. 6m | Max. 6m | Max. 6m |
| Welding electrode | 24pcs | 31pcs | 40pcs | 48pcs |
| Welding transformer | 160kva*3pcs | 160kva*4pcs | 160kva*5pcs | 160kva*6pcs |
| Main motor power | 4.0kw | 4.0kw | 5.5kw | 5.5kw |
| Control system | PLC | PLC | PLC | PLC |
| Frequency converter | Delta China | Delta China | Delta China | Delta China |
| Control switch | Schneider France | Schneider France | Schneider France | Schneider France |
| Cross wire load capacity | 100kg | 100kg | 100kg | 100kg |
| Machine weight | 2.5T | 3.4T | 4.2T | 4.8T |
| Machine dimension | 6500*1900*1500mm | 6500*2200*1600mm | 6500*2700*1700mm | 6500*3300*1700mm |
Automatic Construction Welded Mesh Welding Machine Applications:
Construction welded mesh is used as wall insulation material in the building construction project, welding mesh is essential heat preservation and crack prevention material, its performance is good. It can effectively give consideration to the unity between the crack resistance and the requirements of the brick on the strength of the base, and meet the stability, safety and durability of the thermal insulation system. By far the best way to prevent walling is at the beginning of building the wall with a layer of galvanized welded wire mesh welded wire mesh, welded wire mesh can protect wall body.
Automatic Construction Welded Mesh Welding Machine Packing:
Automatic Construction Welded Mesh Welding Machine Packing:
